How to update the printer firmware

Firmware update history

Ver.4.000

1. Printing from the Windows 10 Mobile becomes available.

Ver.2.020

1. The new functions of Google Cloud Print have become available as below.

- Local Discovery:

You can search for a printer and register it via Google Chrome as long as the printer is connected to the same network.

- Local Printing:

You can print from an information device that is connected to the same network as the printer regardless whether the printer is connected to the Internet or not.

2. Supported for the security specification change of Google Cloud Print.

Required environment

For the update, you need to have a PC or PDA such as a smartphone in addition to the printer.

Using that PC or PDA, you will update the printer firmware via the access point or router.

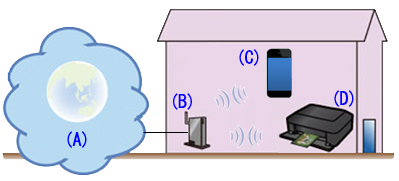

The printer, access point or router, and PC or PDA should be connected as shown below.

(A) Internet

(B) Access point or router

(C) PC or PDA such as a smartphone

(D) Printer

Procedures for updating the printer firmware (for a network-connected printer /　Windows XP, smartphone, or PDA)

To update the printer firmware, follow the steps below.

Caution

(1) Confirm that the printer is turned on.

(2) Confirm that the printer is connected to the Internet.

(3) Load one sheet of A4 size or Letter size plain paper.

(4) Press and hold the Stop button until the Alarm lamp blinks 6 times, then release the button.

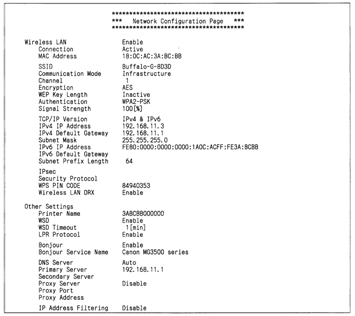

Printing of the network setup information starts.

Caution

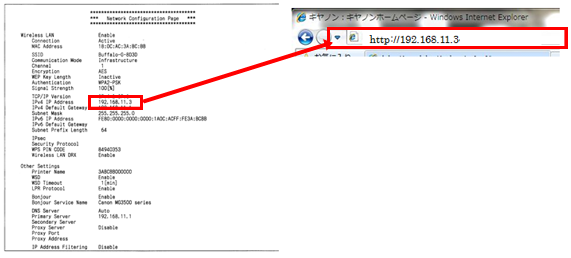

(5) Open the web browser of your PC, smartphone, or other types of PDA. In the address entry box of the browser, enter the text that you see on the printout in the "IPv4 IP Address" line.

For example, with the printout shown above, enter "http://192.168.11.3" in the box.

(6) From the authentication screen, enter the Username and Password.

Username : ADMIN

Password : canon

An administrator password "canon" is already specified for the printer at the time of purchase.

For security reasons, it is recommended to change the password before you use the printer.

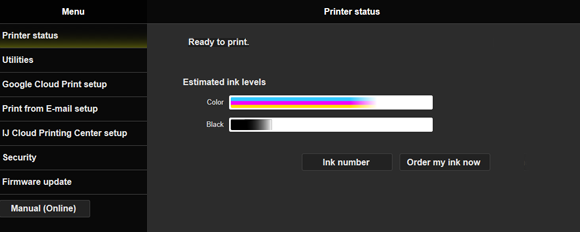

(7) The Remote UI starts and the top window is displayed.

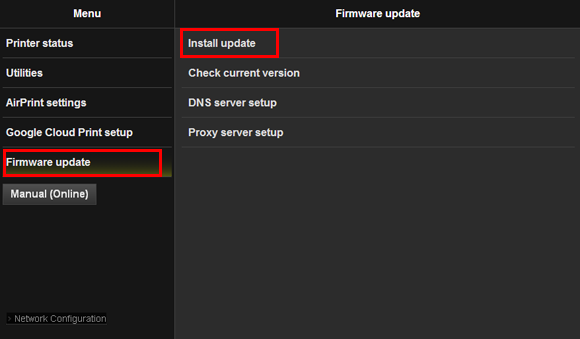

(8) Select [ Firmware update ] and [ Install update ].

(9) When " Update succeeded " is displayed, select OK.

Update of the firmware is completed.

Procedures for updating the printer firmware (for a network-connected printer / Windows 7, Windows 8, Windows 8.1, Windows 10)

To update the printer firmware, follow the steps below.

Caution

(1) Confirm that the printer is turned on.

(2) Confirm that the printer is connected to the Internet.

(3) Click [ Windows Explorer ] on the taskbar.

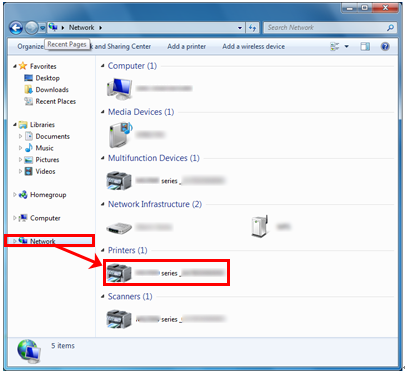

(4) In the window, click [ Network ]. The iP110 series icon (iP110 series_xxxx) is displayed.

(5) Right-click on the iP110 series icon (iP110 series_xxxx), select [ View device webpage ] from the menu.

(6) From the authentication screen, enter the Username and Password.

Username : ADMIN

Password : canon

An administrator password "canon" is already specified for the printer at the time of purchase.

For security reasons, it is recommended to change the password before you use the printer.

(7) The Remote UI starts and the top window is displayed.

(8) Select [ Firmware update ] and [ Install update ].

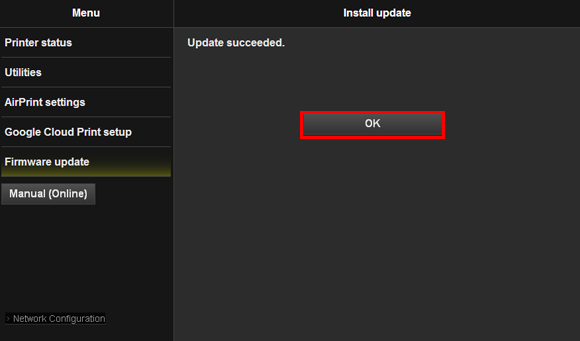

(9) When " Update succeeded " is displayed, select OK.

Update of the firmware is completed.

Procedures for updating the printer firmware (for a network-connected printer / Mac OS X)

To update the printer firmware, follow the steps below.

Caution

(1) Confirm that the printer is turned on.

(2) Confirm that the printer is connected to the Internet.

(3) Start Safari (browser).

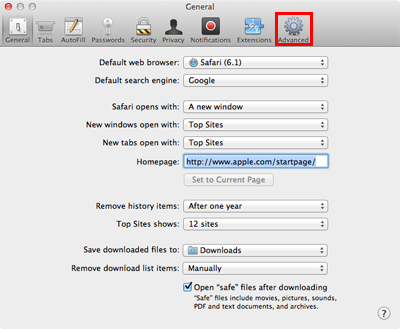

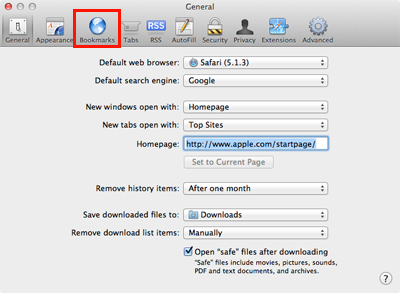

(4) From the File menu, select [ Safari ] and [ Preferences... ]. The General window will open. Select [ Bookmark ] or [ Advanced ].

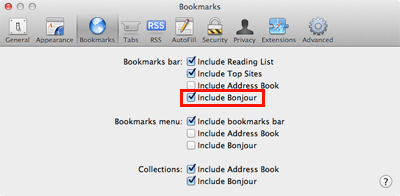

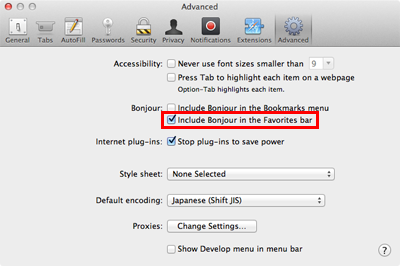

(5) The window below will open. Select [ Include Bonjour ] for Bookmarks bar or [ Include Bonjour in the Favorites bar ] for Bonjour.

(6) In the Favorites bar, click [ Bonjour ], and select [ Canon iP110 series ] from the menu.

(7) From the authentication screen, enter the Username and Password.

Username : ADMIN

Password : canon

An administrator password "canon" is already specified for the printer at the time of purchase.

For security reasons, it is recommended to change the password before you use the printer.

(8) The Remote UI starts and the top window is displayed.

(9) Select [ Firmware update ] and [ Install update ].

(10) When " Update succeeded " is displayed, select OK.

Update of the firmware is completed.
