Canon HV40 Support
FAQs & troubleshooting

What do the various buttons and dials on the camera operate?

Content Id: 8200521700

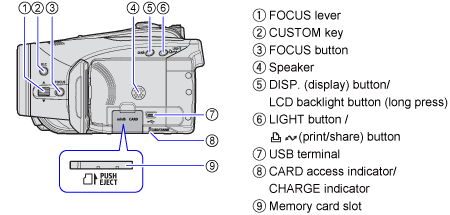

Left side view

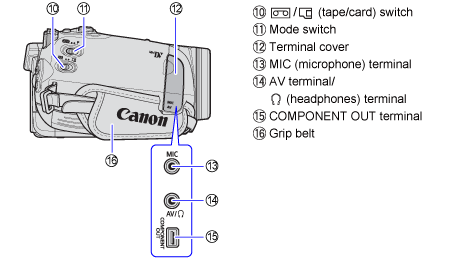

Right side view

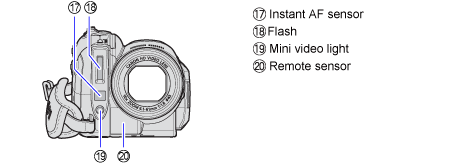

Front view

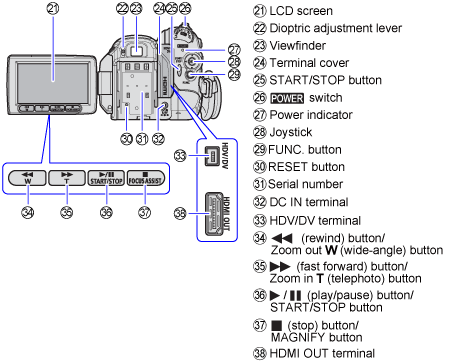

Back view

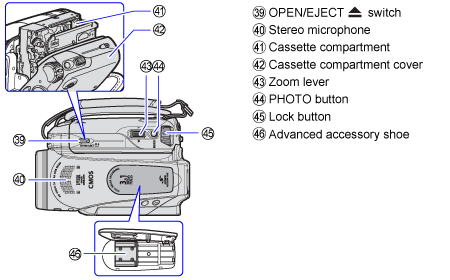

Top view

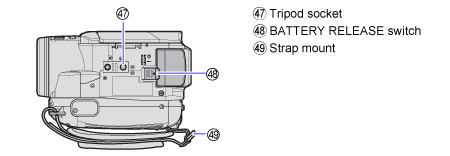

Bottom view

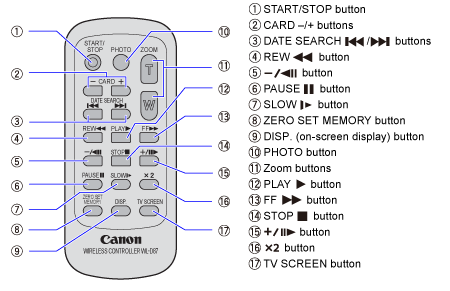

Wireless Controller WL-D87
