Setting the Wireless LAN Using WPS (MF4890dw/MF4720w Only)

Switching the Connection Method to Wireless LAN

1. Press [ ] (Menu).

2. Press [ ] or [ ] to highlight ⋖Network Settings⋗, and then press [OK].

3. Press [ ] or [ ] to highlight ⋖Select Wired/Wireless LAN⋗, and then press [OK].

4. Press [ ] or [ ] to highlight ⋖Wireless LAN⋗, and then press [OK].

Setting the Machine Using WPS (Push Button Mode)

1. Press [ ] (Menu).

2. Press [ ] or [ ] to highlight ⋖Network Settings⋗, and then press [OK].

3. Press [ ] or [ ] to highlight ⋖Wireless LAN Settings⋗, and then press [OK].

4. Press [OK].

5. Press [ ] or [ ] to highlight ⋖WPS Push Button Mode⋗, and then press [OK].

6. Press [ ] to highlight ⋖Yes⋗, and press [OK].

7. Within 2 minutes, press and hold the WPS button on the wireless LAN router and/or access point for approximately 5 seconds.

* If ⋖Cannot find Access Point⋗ appears, press [OK] to close the screen, and follow the procedure from step 5.

8. Make sure the Wi-Fi indicator blinks.

When the wireless LAN router or access point is detected, the Wi-Fi indicator blinks.

The next screen is displayed for approximately 2 seconds, and then the Wi-Fi indicator lights.

* If an error message appears, press [OK] to close the screen, and repeat starting from step 5. If you cannot detect the access point after retrying, see the "e-Manual" (HTML manual) in the CD-ROM supplied with the machine.

9. Wait until the machine sets the IP address automatically (approx. 2 min).

If you want to set the IP address manually, see the following.

[ Setting the IP Address (MF4890dw/MF4870dn/MF4720w Only) ]

Checking the Wireless LAN Setting is Completed

1. Press [ ] (Status Monitor/Cancel).

2. Press [ ] or [ ] to highlight ⋖Network Information⋗, and then press [OK].

3. Press [ ] or [ ] to highlight ⋖IPv4⋗, and then press [OK].

4. Press [ ] or [ ] to highlight the options you want to confirm, and then press [OK].

5. View the information.

6. Press [ ] (Status Monitor/Cancel) to close the screen.

7. Start the Web browser of a computer which is connected to a network.

8. Enter "http://IP address of the machine/" in the address field and press the [ENTER] key on the keyboard.

You can check ⋖IP Address⋗ at step 5.

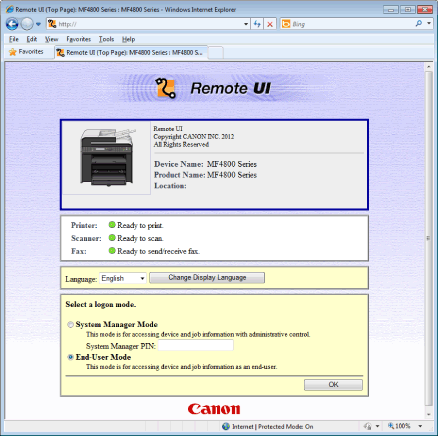

9. Check that the screen of the Remote UI is displayed.
