Placing Documents on the Platen GlassPlacing Documents in the Feeder (MF4890dw/MF4870dn/MF4750 Only)
Precautions When Placing the Documents on the Platen Glass
Precautions When Loading Documents in the Feeder (MF4890dw/MF4870dn/MF4750 Only)
Placing Documents on the Platen Glass
1. Open the feeder.
2. Place your document face down.
3. Align the document with the appropriate paper size marks.
If the document does not match any of the paper size marks, align the upper left edge of your document with the arrow mark.
4. Close the feeder.
The machine is ready to scan or copy the document.
When scanning or copying is complete, remove the document from the platen glass.
Placing Documents in the Feeder (MF4890dw/MF4870dn/MF4750 Only)
1. Open the document feeder tray.
2. Spread the document guides a little wider than the document's width.
3. If loading large-sized documents, pull out the tray extension.
Pull out the tray extension when the document is hanging out of the document feeder tray.

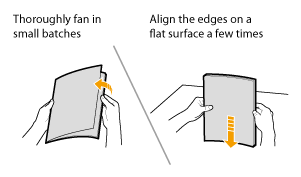

4. Fan the document stack, and align the edges of the pages.
5. Neatly place the document face up.
6. Align the document guides tightly to the width of the document.
The machine is ready to copy or scan the document.
Up to 50 documents can be loaded into the feeder.
Up to 35 documents can be loaded into the feeder.
Precautions When Placing the Documents on the Platen Glass
Caution
Precautions when closing the feeder:
Precautions When Loading Documents in the Feeder (MF4890dw/MF4870dn/MF4750 Only)
Caution
Adjust the document guides to the paper width without space.
Up to 35 (50 documents for MF4890dw) documents can be loaded into the feeder.
While scanning a document:
When scanning documents is complete:
Avoid scanning the same document more than 30 times.
Be sure to align the document guides with the width of the paper.
