After installing the printer driver, you can now print jobs on the printer.
This section describes the procedure for printing from an application, taking Adobe Reader 7.0 as an example.
Caution
1. Load paper in the paper cassette or manual feed slot.
Caution
For details on the procedure for loading paper, see [Loading Paper in the Paper Cassette] or [Loading Paper in the Manual Feed Slot].
2. Open the PDF file to be printed using Adobe Reader.
3. Select [Print] from the [File] menu in the application.

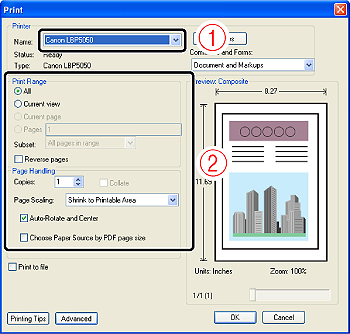

4. Select the name of this printer for [Name] or [Printer Name] (1), and then specify the printing preferences (2).
Caution
The printer name displayed in this dialog box can be changed in the [Printers and Faxes] folder (the [Printers] folder for Windows 2000/Vista).

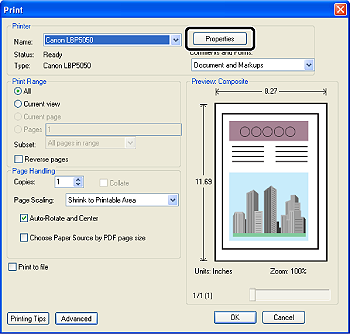

5. Click [Properties].

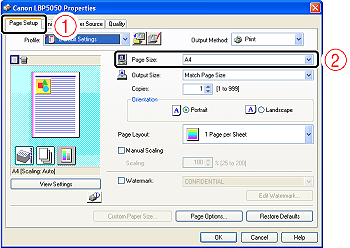

6. Display the [Page Setup] sheet (1), then from [Page Size], select the page size of the document created by an application (2).

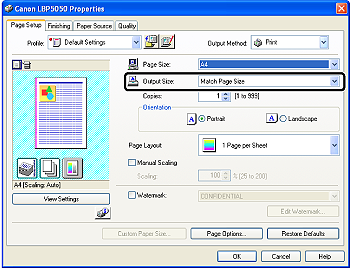

7. Select the size of the loaded paper in [Output Size] as needed.
Leave the setting at [Match Page Size] if the page size specified for [Page Size] and the size of the paper loaded in the paper source are the same, because there is no need to change the setting in this case.
Caution
The print will be automatically reduced or enlarged to fit on the page when the settings for [Page Size] and [Output Size] are different.
8. Make sure that the settings for [Output Size] and [Register Paper Sizes]* match when printing from the paper cassette.
* The setting located in the [Cassette Settings] dialog box in the Printer Status Window
Caution
Display the [Cassette Settings] dialog box using the following procedure.
1. Click [
2. From the [Options] menu, select [Device Settings] ⋗ [Cassette Settings].

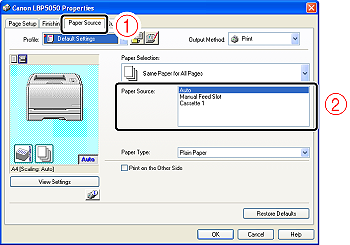

9. Display the [Paper Source] sheet (1), then select [Paper Source] (2).
Caution
- [First Page]
- [Second Page]
- [Other Pages]
- [Last Page]

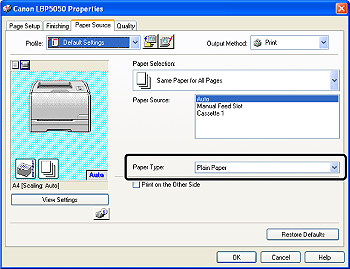

10. Select the type of the loaded paper in [Paper Type].
Caution

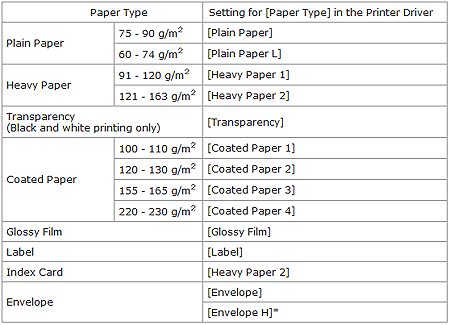

Specify the setting according to the paper type as follows.
* If you want to improve the fixation when printed with [Envelope] selected, select [Envelope H].

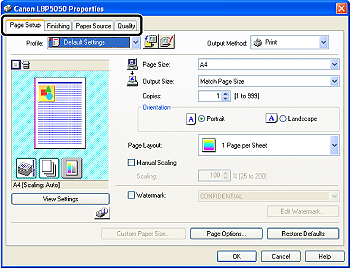

11. Specify the other printing preferences in the [Page Setup], [Finishing], [Paper Source], and [Quality] sheets as needed.
Caution
For more details on the settings, see Help. For details on displaying Help, see "User's Guide" (HTML manual) in the CD-ROM supplied with the printer.
12. Confirm the settings, then click [OK].
The [Print] dialog box reappears.
Caution
13. Click [OK].
The printer starts printing.
Caution
