Attaching the Bluetooth Unit to the Printer

Content Id: 8200187000

Attach the Bluetooth unit to the printer in accordance with the following procedure.

1. Turn the printer off.

Press the POWER button and wait until the POWER lamp stops flashing.

Do not attach the Bluetooth unit while the printer is turned on. A failure can result.

2. Put the printer on a flat place vertically.

3. Open the Print Head Cover.

* Print Head Cover

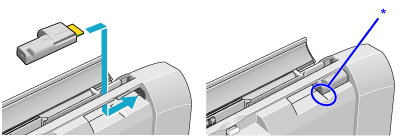

4. Insert the Bluetooth unit to the Bluetooth unit connector.

* Insert the unit until its face plate aligns with this point.

5. Close the Print Head Cover.
