Prepare the Printer
1. Remove the shipping materials from the printer.

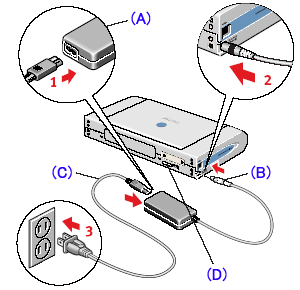

2. Plug the Power Cord into the AC Adapter(A). Connect the DC plug(B) to the printer. Plug the Power Cord(C) into a power outlet.
Caution
You will need the Serial Number(D) to register the product.

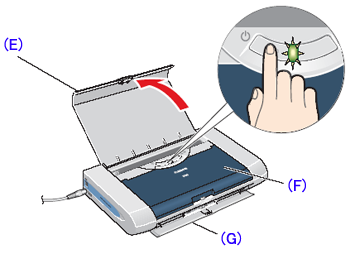

3. Lift open the Paper Support and TURN THE PRINTER ON. The
printer will initialize.
(E):Paper Support
(F):Print Head Cover
(G):Paper Output Slot Cover
Caution
Do not open the Print Head Cover before the printer has finished initializing. Wait until the POWER lamp remains fully lit.

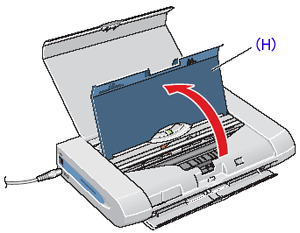

4. After the printer finishes initializing, open the Print Head Cover(H).
Install the Print Head

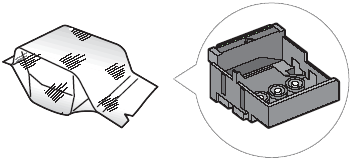

1. Remove the Print Head from its package.
2. Remove the Protective Cap from the Print Head.
Caution
Do not touch the Print Head Nozzles(A).

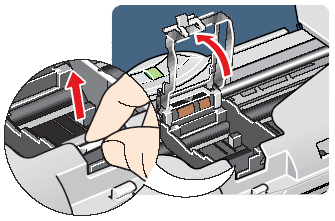

3. Press in on the Lock Button and raise the gray Lock Lever.
4. Place the Print Head into the holder by aligning the
5. Lower the Lock Lever until it clicks into place.
Install the Ink Tanks
1. Remove the Black Ink Tank(BCI-15 Black) from its package, and pull off the Protective Cap.
Caution
To avoid spilling ink, do not touch the bottom of the tank once you have removed the Protective Cap.
2. Insert the Black Ink Tank into the back slot aligning the

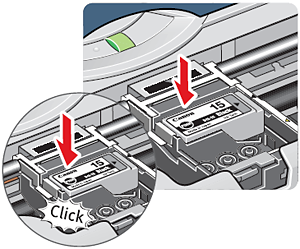

3. Press on the until the Ink Tank clicks into place.
Caution
For correct printer operation, make sure ink tanks are secure in slots.
4. Repeat the procedure for the Color Ink Tank(BCI-16 Color), inserting it into the front slot.

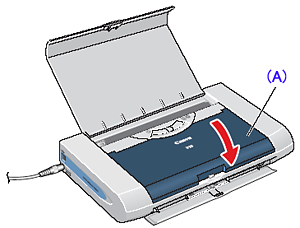

5. Close the Print Head Cover(A).
Caution
The printer will perform a Print Head cleaning after the cover is closed. Wait until the process is complete before proceeding.
