Solution
Installing using [Easy Installation]Installing using [Custom Installation]
USB cable connection (to connect using a USB cable)
Checking the installation results
Caution
Installing using [Easy Installation]
1. Insert the User Software CD-ROM into the slot on your computer.

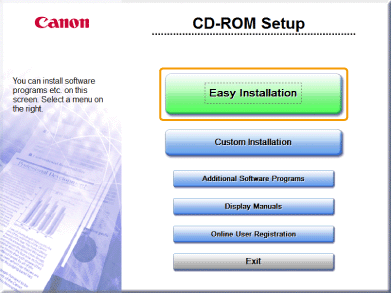

2. Click [Easy Installation].
Caution
When the language selection screen is displayed before the CD-ROM setup screen appears.
[Easy Installation] performs the installation of the following software.
To add the following software and manual to the installation, select [Custom Installation].
Caution
If the top screen does not appear.
1. From the [Start] menu, select [Run].
2. Enter "D:\Minst.exe", and then click [OK].
1. Enter "D:\Minst.exe" in [Start Search] or [Search programs and files] under the [Start] menu.
2. Press the [ENTER] key on the keyboard.
* The CD-ROM drive name is indicated as "D:" in this manual. The CD-ROM drive name may differ depending on the computer you are using.

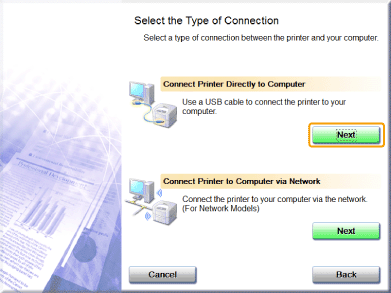

3. When the following screen appears, select the connection type.
Click [Next] for [Connect Printer Directly to Computer].
Caution
Windows Server 2003/Server 2008

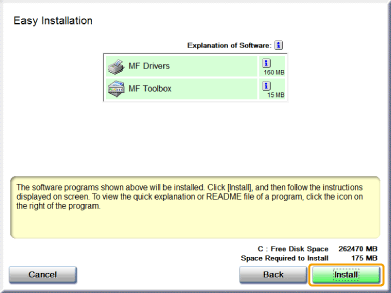

4. Click [Install].

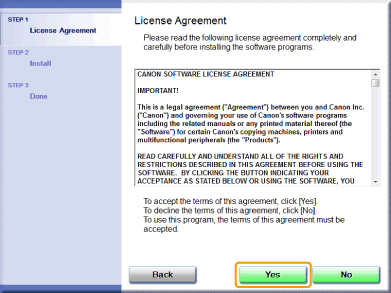

5. Read the License Agreement and click [Yes].
6. Click [Next].
IF the following screen appears. Click [Yes].
7. Click [Exit].
Continue with the steps in the procedure below to start installation of the MF Toolbox.
* The MF Toolbox cannot be installed on Windows 2000 Server/Server 2003/Server 2008 computers. Installation is skipped and proceed to Step 10.
8. Click [Start].
9. Click [Exit].

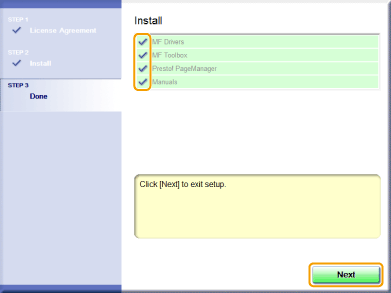

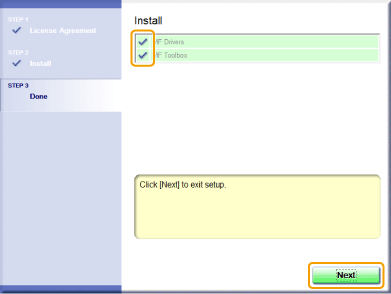

10. Confirm that the applications are selected [

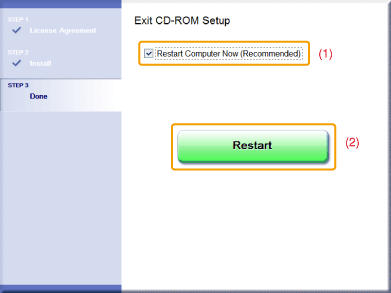

11.Restart your computer.
(1) Select the [Restart Computer Now (Recommended)] check box.
(2) Click [Restart].
The CD-ROM can be ejected once this screen appears.
Caution
To connect the machine using a USB cable, wait until your computer is restarted.
See "USB cable connection (to connect using a USB cable)".
To connect the machine to the network, check the installation results.
See "Checking the installation results".
Installing using [Custom Installation]
1. Insert the User Software CD-ROM into the slot on your computer.

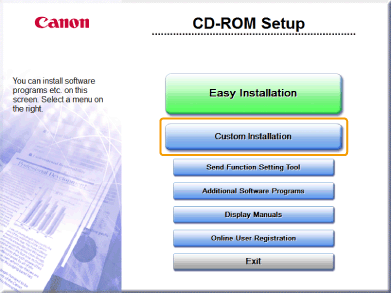

2. Click [Custom Installation].
Caution
When the language selection screen is displayed before the CD-ROM setup screen appears.
[Easy Installation] performs the installation of the following software.
To add the following software and manual to the installation, select [Custom Installation].
Caution
If the top screen does not appear.
1. From the [Start] menu, select [Run].
2. Enter "D:\Minst.exe", and then click [OK].
1. Enter "D:\Minst.exe" in [Start Search] or [Search programs and files] under the [Start] menu.
2. Press the [ENTER] key on the keyboard.
* The CD-ROM drive name is indicated as "D:" in this manual. The CD-ROM drive name may differ depending on the computer you are using.
3. When the following screen appears, select the connection type.
Click [Next] for [Connect Printer Directly to Computer].
Caution
Windows Server 2003/Server 2008

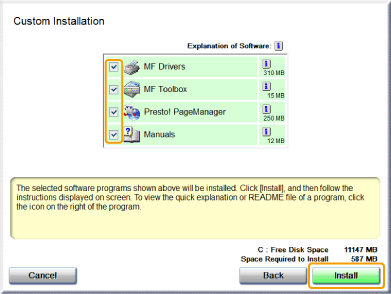

4. Select the check box next to the application you want to install and click [Install].
5. Read the License Agreement and click [Yes].
6. Click [Next].
IF the following screen appears. Click [Yes].
7. Click [Exit].
Continue with the steps in the procedure below to start installation of the MF Toolbox.
* The MF Toolbox cannot be installed on Windows 2000 Server/Server 2003/Server 2008 computers, or if the [MF Toolbox] check box is cleared in Step 4. Installation is skipped and proceed to Step 10.
8. Click [Next].
The screens appear successively to specify where to install the MF Toolbox and add it to the start menu. Click [Next] after you have made your selections.
Then, click [Start] in the displayed screen.
9. Click [Exit].
The applications of which check boxes were selected in Step 4 will be installed.
Follow the onscreen instructions.
10. Confirm that the applications are selected [
11. Restart your computer.
(1) Select the [Restart Computer Now (Recommended)] check box.
(2) Click [Restart].
The CD-ROM can be ejected once this screen appears.
To connect the machine using a USB cable, wait until your computer is restarted.
Caution
To connect the machine using a USB cable, wait until your computer is restarted.
See "USB cable connection (to connect using a USB cable)".
To connect the machine to the network, check the installation results.
See "Checking the installation results".
USB cable connection (to connect using a USB cable)

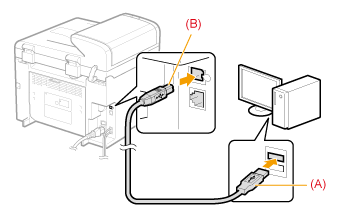

1. Remove the cap (A) on the USB port of the machine.
2. Connect the USB cable.
Caution
When a dialog box is displayed
Follow the on-screen instructions and complete the installation.
Checking the installation results
Check that the MF drivers and MF Toolbox are installed correctly.
Check that the icons for the installed software are added as follows.
| Software | Location | Icon |
| Printer driver | [Devices and Printers] folder |  |
| Fax driver | [Devices and Printers] folder |  |
| Scanner driver | [Scanners and Cameras] or [Scanners and Cameras Properties] folder | For network connection |
For USB connection | ||
| MF Toolbox | Desktop |  |
