Selecting the Receive Mode that Suits Your Needs

The receive mode determines how the machine responds to incoming faxes and voice calls.

Select the mode that most suits your needs.

About the Receive Mode

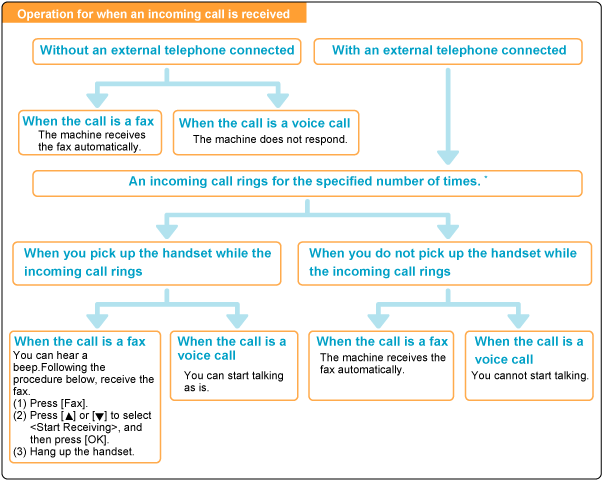

Auto mode

You can receive faxes automatically.

The receive mode varies depending on whether an external telephone is connected to the machine or not.

* You can specify the incoming call ring times. For details, see "Incoming Ring" in the e-Manual.

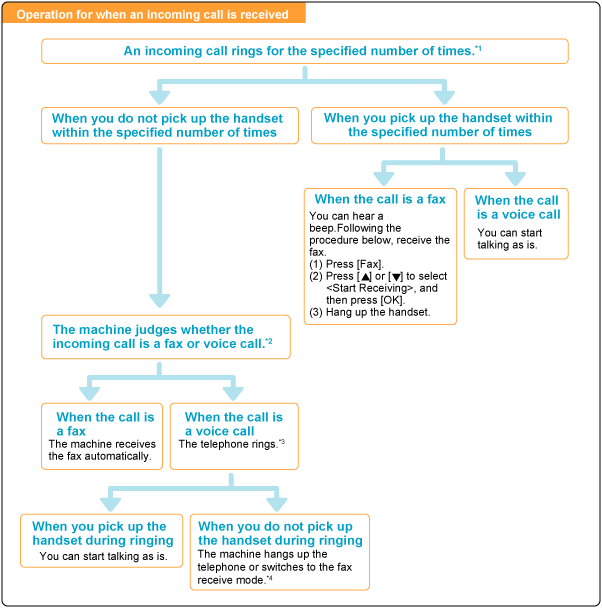

Fax/Tel mode

You can receive faxes automatically (The telephone rings on an incoming call). To disable audible incoming rings, see "Incoming Ring" in the e-Manual.

You can answer incoming calls by picking up the handset.

*1 You can change the incoming call ring time using "Incoming Ring" in the e-Manual.

*2 To set a ring delay before the telephone starts ringing on an incoming call, go to the ⋖Ring Start Time⋗ option.

*3 To adjust the incoming call ring time, go to the ⋖Incoming Ring Time⋗ option.

*4 To specify how the machine behaves when you do not answer an incoming call, go to the ⋖Action After Ring⋗ option.

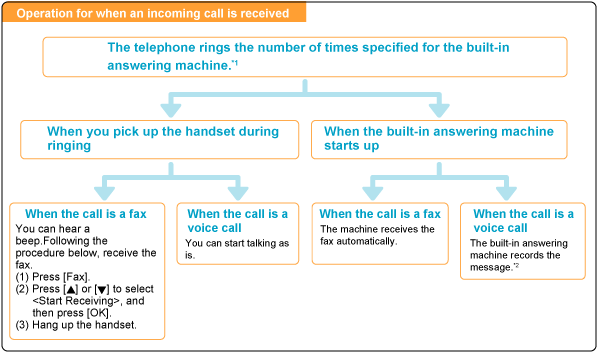

Answer mode

You can receive faxes automatically.

The telephone's built-in answer function records messages of unanswered calls.

*1 Set the answer function to answer after a few rings.

*2 The message is recorded on the answer function (You are advised to add approximately 4 seconds of silence at the beginning of the message or set the maximum recording time to 20 seconds).

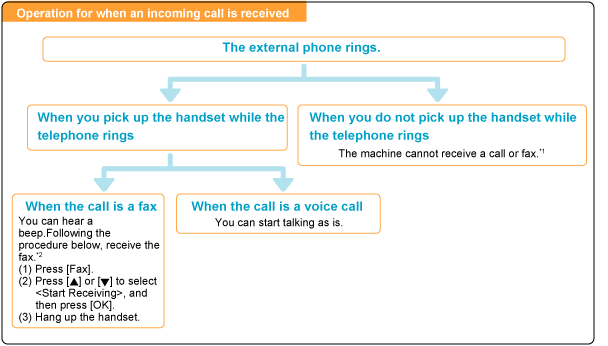

Manual mode

Pick up the handset to answer calls or receive faxes when the machine is set to manual mode.

Set this mode when you expect to receive more incoming telephone calls than faxes or when you receive few faxes.

*1 When "Auto RX Switch" is set to ⋖On⋗, the machine automatically starts receiving a fax after several rings. For details, see "Auto RX Switch" in the e-Manual.

*2 When "Remote RX" is set, you can dial the telephone to receive faxes remotely. For details, see "Remote RX" in the e-Manual.

Net Switch mode

In this mode, the machine distinguishes between fax and voice calls. This mode is available for certain countries only and requires subscription to a network switch service.

Telstra FaxStream. Duet (Only for Australia)

In Australia, Telstra offers the FaxStream. Duet capability. If you subscribe to this service, your line is assigned two numbers: one for fax and one for phone. When the fax number is called, the network sends a specific ringing tone which your machine recognizes and automatically handles as a fax call. If the phone number is called, a different ringing tone is sent out from the network so that the call is handled as a voice call. This means that there is no switching delay at the caller's end. Contact Telstra for connection information.

- Triple ring (short-short-short) for fax receiving.

Three short rings, at regular intervals.

- Any ring except triple ring (depending on your switchboard) for telephone conversation.

Make sure to do the following:

- Subscribe to the FaxStream service.

- Connect the optional handset or your external telephone to the machine. (See Starter Guide.)

- Set the receive mode to ⋖Net Switch⋗.

Telecom FaxAbility (Only for New Zealand)

In New Zealand, Telecom N.Z. offers the FaxAbility capability. This service allows you to assign two numbers to your line: one for fax and one for telephone. When the fax number is called, the network sends a specific ring tone which your machine recognises and automatically handles as a fax call. If the telephone number is called, a different ring tone is sent out from the network so that the call is handled as a voice call. This means that there is no switching delay at the caller's end. Contact Telecom for connection information.

- Subscribe to the FaxAbilty service.

- Connect the optional handset or your external telephone to the machine. (See Starter Guide.)

- Set the receive mode to ⋖Net Switch⋗.

Setting the Receive Mode

Select the receive mode that you want to use.

Caution

1. Press [ ].

2. Select ⋖RX Mode⋗ using [ ] or [ ] and press [OK].

3. Select the receive mode using [ ] or [ ] and press [OK].

Proceed to specify the advanced settings. See "Advanced Settings for the Fax/Tel Auto Switch Mode" in the e-Manual.

Advanced Settings for the Fax/Tel Auto Switch Mode

Set the advanced settings for the Fax/Tel Auto Switch mode.

1. Press [ ].

2. Select ⋖RX Mode⋗ using [ ] or [ ] and press [OK].

3. Select ⋖Fax/Tel Auto Switch⋗ using [ ] or [ ] and press [OK].

4. Select the option using [ ] or [ ] and press [OK].

5. Select ⋖Apply⋗ using [ ] or [ ] and press [OK].

The changes are saved.
