Connecting a Telephone Line

Follow the onscreen instructions provided by "Fax Setup Guide" to connect the telephone line.

Take the following steps to display "Fax Setup Guide" on the screen.

Caution

1. Press [OK].

The screen that appears varies, depending on the receive mode selected.

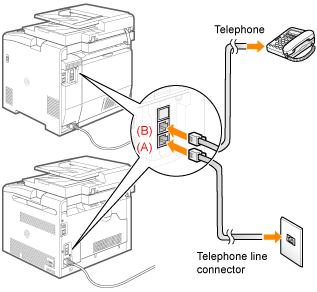

2. Connect the telephone line using the jack.

Follow the steps below to connect the line.

* To connect an external telephone that includes fax functions, make sure to disable its automatic fax reception feature so it does not receive faxes automatically.

3. Press [OK] after the telephone line has been connected.

4. Select ⋖Yes⋗ using [ ] and press [OK].

5. Press [OK].

Fax settings and connections have been completed.

6. Restart the machine for the settings to take effect.

Turn OFF the machine, wait for at least 10 seconds, and turn it back ON.

7. Change the line type.

(1) Press [ ] (Menu).

(2) Select ⋖Fax Settings⋗ using [ ] or [ ] and press [OK].

(3) Select ⋖Basic Settings⋗ using [ ] or [ ] and press [OK].

(4) Select ⋖Select Line Type⋗ using [ ] or [ ] and press [OK].

(5) Select the line type that you are using with [ ] or [ ] and press [OK].

- ⋖Pulse⋗: Pulse dialing

- ⋖Tone⋗: Tone dialing (Default)

(6) Press [ ] (Menu) to close the menu screen.

Caution
