Shooting distant subjects or close-up subjects

When shooting a distant subject or close-up subject, there are cases where focus cannot be achieved under the normal shooting range.

Set an optimal focusing range depending on your shooting conditions.

Caution

The position and shape of the operation buttons, screens displayed, and setting items may differ according to the model you use.

The following explanations are provided based on the assumption that the [Shooting Mode] is set to [Program AE] ().

If the [Shooting Mode] is set to [AUTO] (), the [Focus Range] is automatically set, so it is not necessary to perform the procedures explained here. When shooting, please maintain designated distances from the subject as indicated below.

- 5 cm (2.0 in.) or more when turning the ⋖Zoom Lever⋗ toward ⋖Wide Angle⋗ () to the maximum wide angle side.

- 90 cm (3.0 ft.) or more when turning the ⋖Zoom Lever⋗ toward ⋖Telephoto⋗ () to the maximum telephoto side.

To set the [Focus Range], it is necessary to set the [Shooting Mode] to one of the following modes.

- [Program AE] (), [Color Accent] (), [Color Swap] (), [Long Shutter] (), [Movie] ()

Images sample:

For a snapshot such as the one shown below, shoot in [Normal] () mode.

When shooting snapshots whose subject is 5 cm to 50 cm from the front end of the lens such as the one shown below, use the [Macro] () mode (by turning the ⋖Zoom lever⋗ to the maximum ⋖Wide Angle⋗ ().

When shooting landscape pictures or snapshots whose subject is far away from the lens, use the [Infinity] () mode.

How to set the mode

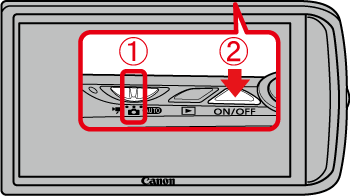

1. Set the ⋖Mode Switch⋗ to a setting other than ⋖AUTO⋗ (), and press the ⋖Power⋗ button.

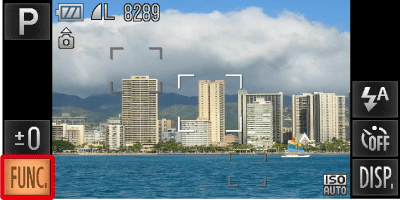

2. The following screen appears.

Touch [FUNC.] ().

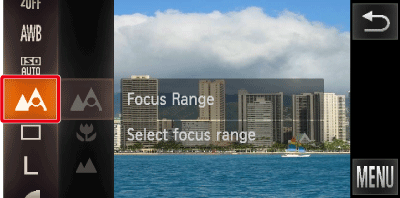

3. The following screen appears.

Drag the screen up or down to touch [Focus Range] ().

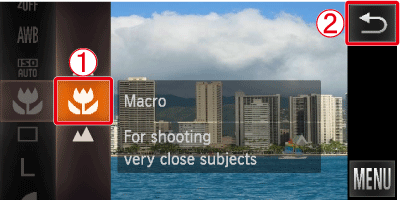

4. The following screen appears.

Drag the items that appear up or down to set an optimal focusing range for your shooting conditions.

After the setting is made, touch ().

Caution

The screen indications when operating the ⋖Zoom lever⋗ in [Macro] () mode are as follows.

When you move the zoom lever, the [zoom bar] appears on the screen.

The camera cannot focus in in the yellow portion of the bar (When zooming within the range of the yellow bar, () will be grayed out and shooting will be done in ().

The distance of each focusing range is as follows (from the end of the lens): If you shoot beyond the following ranges, the subject may be out of focus.

- [Normal] () : 5cm (2.0 in.) - infinity (W)* / 90cm (3.0 ft.) - infinity (T)**

- [Macro] () : 5 - 50cm (2.0 in. - 1.6 ft.) (W)

- [Infinity] () : 3m (9.8 ft.) - infinity

* (W) : When turning the ⋖Zoom Lever⋗ toward ⋖Wide Angle⋗ () to the maximum wide angle side (Max. wide angle).

** (T) : When turning the ⋖Zoom Lever⋗ toward ⋖Telephoto⋗ () to the maximum telephoto side (Max. telephoto).
