Solution
1. Start MP Navigator EX.2. Point to [Scan/Import] and click [Photos/Documents (Platen)].
3. Select [Document Type] according to the document to be scanned.
4. Click [Specify...].
5. Return to the [Scan/Import Documents or Image] screen and click [Scan].
6. Place the right half of the document on the platen.
7. Click [Next].
8. Place the right half of the document on the platen.
9. Click [Next].
10. Drag the right half of the scanned image to adjust the position, and click [Next].
11. Drag the mouse to specify the area to be saved, and click [OK].
12. Click [Save] or [Save as PDF file].
13. Specify the following settings as required:
14. Click [Save].
Stitch Assist allows you to scan the left and right halves of a large document separately and combine the scanned images back into one image. You can scan documents that are up to twice as large as the platen.
1. Start MP Navigator EX.
Windows
On the Windows desktop, double-click
Alternatively, on the Windows taskbar, click [Start], point to [(All) Programs], [Canon Utilities], then [MP Navigator EX 1.0]. Then click [MP Navigator EX 1.0].
The MP Navigator EX one-click mode screen or navigation mode screen opens.
Macintosh
Open [Applications]-[Canon Utilities] folder in the hard disk that you installed MP Navigator EX, and double-click
The MP Navigator EX one-click mode screen or navigation mode screen opens.

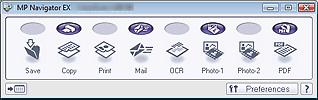

One-click Mode Screen
You can complete from scanning to saving, etc. at one time by simply clicking the corresponding icon on the one-click mode screen. Stitch Assist is available from the one-click mode screen as well, by changing the document size.

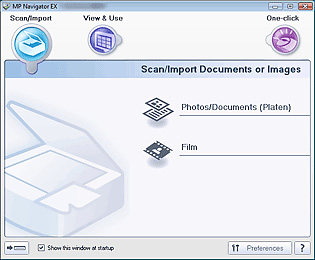

Navigation Mode Screen
When the one-click mode screen has opened, click the
Caution

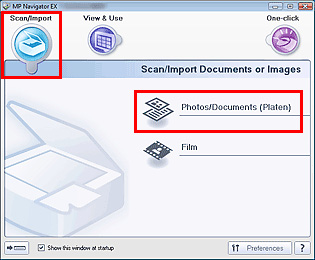

2. Point to [Scan/Import] and click [Photos/Documents (Platen)].

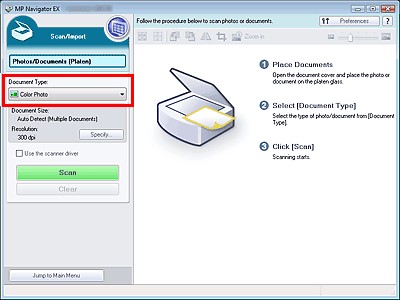

3. Select [Document Type] according to the document to be scanned.
4. Click [Specify...].
The [Scan Settings] Dialog Box opens.
Select Stitch-assist under [Document Size], then specify the scanning resolution as required.
5. Return to the [Scan/Import Documents or Image] screen and click [Scan].
The [Stitch-assist] dialog box opens.
6. Place the right half of the document on the platen.
7. Click [Next].
8. Place the right half of the document on the platen.
9. Click [Next].
The right half of the document is scanned.
Caution
10. Drag the right half of the scanned image to adjust the position, and click [Next].
11. Drag the mouse to specify the area to be saved, and click [OK].
The combined image appears in the Thumbnail List area.

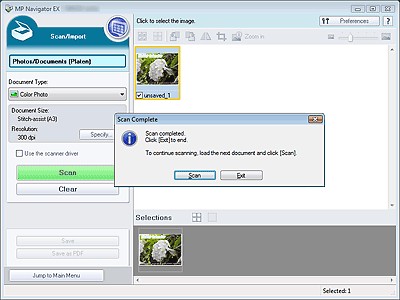

When scanning is completed, the [Scan Complete] dialog box opens. Select [Scan] or [Exit]. Select [Scan] to scan the next document, or select [Exit] to end.
12. Click [Save] or [Save as PDF file].
13. Specify the following settings as required:
When Save is selected:
The [Save] dialog box opens. Specify the destination folder, file name and file type.
Caution
Caution
When Save as PDF file is selected:
The [Save as PDF file] dialog box opens. Specify the file type, file name and destination folder.
Select from the following PDF file types:
| When multiple images are selected, each image is saved as a separate PDF file. | |
| PDF (Multiple Pages) | Multiple images are saved in one PDF file. |
| PDF (Add Page) | Selected images are added to a specified PDF file. The images are added to the end of the PDF file. You cannot rearrange pages of the PDF file to which images are added. |
Caution
Caution
14. Click [Save].
Scanned images are saved according to the settings.
To further use/edit the scanned images on MP Navigator EX, click [Open saved location] in the [Save Complete] dialog box. The saved images appear in the [View & Use] screen.
