Front Panel
 | Speaker |  | Microphone |
 | Zoom lever Shooting:  (telephoto) /  (wide angle)Playback:  (magnify) /  (index) |  | Flash |
 | Lens |  | Tripod socket |
 | Shutter button |  | Memory card/battery cover |
 | Lamp |  | DC coupler cable port |
 | Power button |  | Strap mount |

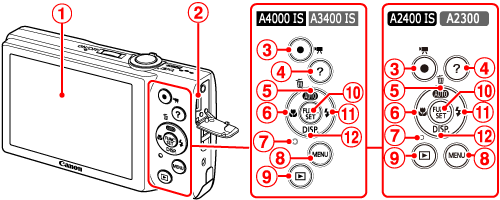

Back Panel
| Screen (LCD monitor) | | Indicator |
| AV OUT (Audio/video output) / DIGITAL terminal | |  button |
| Movie button | |  (Playback) button |
|  (Help) button | | FUNC./SET button |
|  (Auto) /  (Single image erase) / Up button | |  (Flash) / Right button |
|  (Macro) / Left button | |  (Display) / Down button |

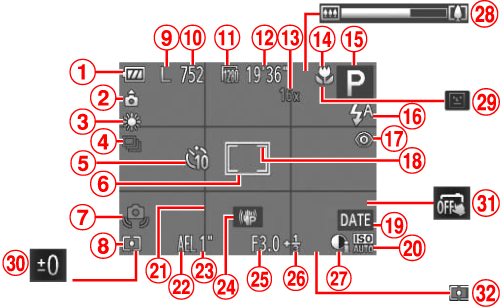

Shooting (Information Display)
| Battery level |  | Red-eye correction |
| Camera orientation* |  | Spot AE point frame |
| White balance |  | Date stamp |
| Drive mode |  | ISO speed |
| Self-timer |  | Grid lines |
| AF frame |  | AE lock, FE lock |
| Camera shake warning |  | Shutter speed |
|    Metering method |  |  Image stabilization |
| Still image resolution |  | Aperture value |
| Recordable shots |  | Exposure compensation level |
| Movie resolution |  | i-Contrast |
| Remaining time |  | Zoom bar |
 | Digital zoom magnification |  | Blink detection |
 | Focusing range, AF lock, IS mode icon |  | Exposure compensation level |
| Focusing range, AF lock | |||
 | Shooting mode, Scene icon |  | Touch Shutter |
 | Flash mode |  | Metering method |
*
The camera detects the shooting orientation and adjusts settings for optimal shots.
Orientation is also detected during playback, and in either orientation, the camera automatically rotates images as needed.
However, the orientation may not be detected correctly when the camera is pointed straight up or down.

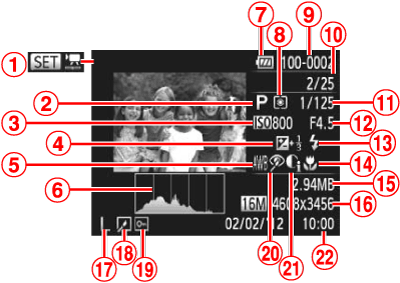

Playback (Detailed Information Display)
| Movie | | Aperture value |
| Shooting mode | | Flash |
| ISO speed | | Focusing range |
| Exposure compensation level | | File size |
| White balance | | Still images: Resolution Movies: Movie length |
| Histogram | | Resolution, MOV (movies) |
| Battery level | | Image editing |
| Metering method | | Protection |
| Folder number - File number | | Red-eye correction |
| Current image no. / Total no. of images | | i-Contrast |
| Shutter speed (still images), Image quality / Frame rate (movies) | | Shooting date/time |
