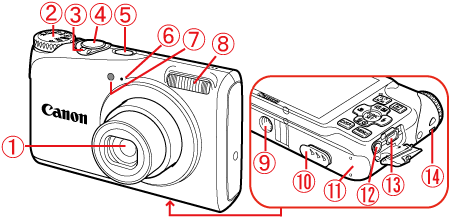

Front Panel
 | Lens |  | Flash |
 | Mode Dial |  | Tripod Socket |
 | Zoom Lever Shooting :  (Telephoto) /  (Wide Angle)Playback :  (Magnify) /  (Index) |  | DC Coupler Terminal Cover |
 | Shutter Button |  | Memory Card / Battery Cover |
 | Power Button |  | A/V OUT (Audio/Video Output) Terminal |
 | Microphone |  | DIGITAL Terminal |
 | Lamp |  | Strap Mount |

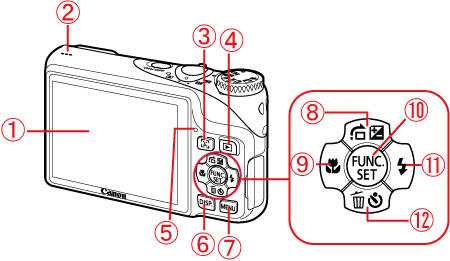

Back Panel
| Screen (LCD Monitor) | |  Button |
| Speaker | |  (Exposure Compensation) /  (Jump) /  Button |
|  (Face Selector) Button | |  (Macro) /  Button |
|  (Playback) Button | |  FUNC./SET Button |
| Indicator | |  (Flash) /  Button |
|
 (Display) Button | |  (Self-Timer) /  (Single Image Erase) /  Button |

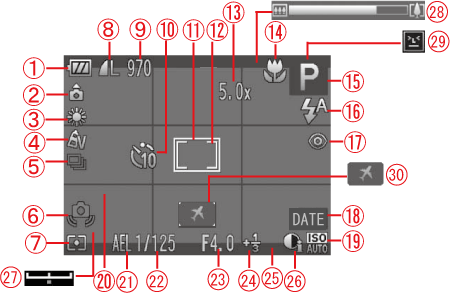

Shooting (Information Display)
| Battery Charge Indicator |  | Flash Mode |
| Camera Orientation* |  | Red-Eye Correction |
| White Balance |  | Date Stamp |
| My Colors |  | ISO Speed |
| Drive Mode |  | Grid Lines |
| Camera Shake Warning |  | AE Lock, FE Lock |
| Metering Method |  | Shutter Speed |
| Compression (Image Quality) / Recording Pixels |  | Aperture Value |
| Still Images : Recordable Shots Movies : Remaining Time |  | Exposure Compensation Amount |
| Self-Timer |  | 3:2 Guide |
| AF Frame |  | i-Contrast |
| Spot AE Point Frame |  | Exposure Shift Bar |
| Digital Zoom Magnification / Digital Tele-converter |  | Zoom Bar |
| Focusing Range, AF Lock |  | Blink Detection |
 | Shooting Mode, Scene Icon |  | Time Zone |
: Standard,
: Held verticallyWhen shooting, the camera detects if it is held vertically or horizontally, and adjusts settings accordingly for the best shot. It also detects orientation during playback, so you can hold the camera in either orientation and it will automatically rotate images for correct viewing. This function may not operate correctly when the camera is pointed straight up or down.

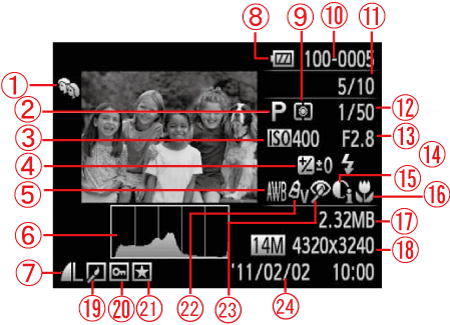

Playback (Detailed Information Display)
| My Category | | Aperture Value, Image Quality (Movies) |
| Shooting Mode | | Flash |
| ISO Speed | | i-Contrast |
| Exposure Compensation Amount, Exposure Shift Amount | | Focusing Range |
| White Balance | | File Size |
| Histogram | | Still Images : Recording
Pixels Movies : Movie Length |
| Compression (Image Quality) / Recording Pixels, MOV (Movies) | | Image Editing |
| Battery Charge Indicator | | Protect |
| Metering Method | | Favorites |
| Folder Number – File Number | | My Colors |
| Displayed image number / Total number of images | | Red-Eye Correction |
| Shutter Speed | | Shooting Date and Time |
