Solution
Activate the HD/SD SDI output and select the appropriate video output option (HD or SD).

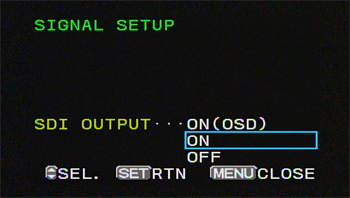

1.Open the menu and select [SIGNAL SETUP]. Select [SDI OUTPUT] and set it to [ON] or [ON(OSD)].

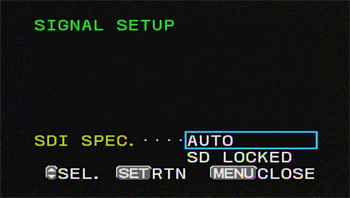

2. From the same [SIGNAL SETUP] submenu select [SDI SPEC.]. Select [AUTO] or [SD LOCKED] to match the video output you wish to use.
Caution
When [SDI OUTPUT] is set to [ON(OSD)],
will appear on the screen and on-screen displays will be included in the video signal output from the SDI terminal.
will appear on the screen and on-screen displays will be included in the video signal output from the SDI terminal.The on-screen displays included in the video output signal are determined by the display level selected with the DISP. button. Markers (safety zone guide, level/grid markers, etc.) are never included in the video signal output.
The [SIGNAL SETUP] ⋗ [COMP.OUT] setting is not available.
