To perform setup, place the machine near the computer.

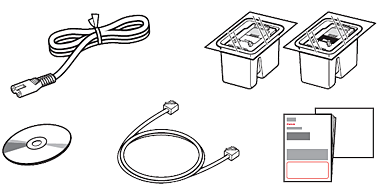

Check the included items.
Caution
A USB cable (not included) is required.
Remove the protective sheets and tape.
1. Preparation
1.

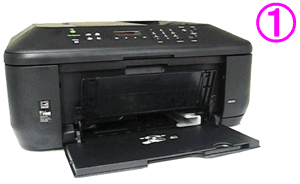

Open the Front Cover, the Paper Output Tray, and the Document Cover.
2.
Open the Paper Output Cover.
3.
Remove all the protective tapes and the white fixing material.
4.
Close the Paper Output Cover and the Document Cover.
5.
Connect the power cord.
Caution
6.
Press the ON button.
7.

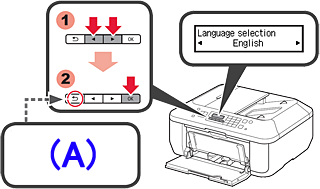

Select your language, then press the OK button.
(A) Back button
Caution
8.
Select the country of use, then press the OK button.
Caution
Depending on the country or region of purchase, the Country select screen may not be displayed.
9.
Check that this screen is displayed.
2. Install the FINE cartridge
1.
Open the Paper Output Tray and the Paper Output Cover.
(A) Check that the Head Cover has opened automatically.
Caution
2.
Lower the Ink Cartridge Lock Lever.
Caution
3.
Unpack the FINE Cartridge, then remove the protective tape.
Caution
4.
Insert the FINE Cartridge until it stops.
(A) Insert it straight until it stops.
5.
Lift the Ink Cartridge Lock Lever.
6.
Repeat (2) to (5) to install the other FINE Cartridge.
Caution
Confirm that the FINE cartridge is properly installed.
(A) When the cartridge is properly installed
(B) When the cartridge is NOT properly installed
7.
Close the Paper Output Cover.
Wait for about 1 to 2 minutes until this screen is displayed, then proceed.
Caution
Caution
3. Load Paper
1.
Check that the Paper Output Tray is closed, then pull out the Paper Support.
2.
Slide the right Paper Guide to the end.
The left Paper Guide moves simultaneously with the right guide.
3.
Insert paper until it stops.
4.
Adjust the Paper Guide to fit the paper size used, then open the Output Tray Extension.
5.
Open the Paper Output Tray and the Paper Output Support.
Caution
Caution
Insert paper with the printable side down until it stops. When using photo paper, machine settings for media type and size should be adjusted.
