Making Copies

Load the original to copy.

This section describes the basic procedure to perform standard copying.

1. Make sure that the machine is turned on.

2. Load paper.

-⋗ [ Loading Paper ]

3. Press the COPY button.

The Copy standby screen is displayed.

4. Load the original document on the platen glass or in the ADF.

5. Confirm the page size and magnification.

(1) Magnification

(2) Page size

Caution

To change or confirm the page size, magnification, or other settings, press the Menu button, then use the

button to display the desired setting item. Refer to [ Setting Items ] within this webpage.

Press the Stop button to reset the magnification to 100%.

6. Use the (-) (+) button or the Numeric buttons to specify the number of copies.

7. Press the Color button for color copying, or the Black button for black & white copying.

The machine starts copying.

Remove the original on the platen glass or from the document output slot after copying is complete.

Caution

If you load the original on the platen glass, do not open the document cover or remove the original while Scanning.. is displayed on the screen.

If you load the original in the ADF, do not move the original until copying is complete.

Caution

To cancel copying, press the Stop button.

If you load the original on the platen glass, you can add the copying job while printing.

- Adding the Copying Job (Reserve copy)

If you load the original on the platen glass, you can add the copying job while printing (Reserve copy).

The screen below is displayed when you can reserve copy.

Load the original on the platen glass and press the same button (the Color button or the Black button) as the one which you previously pushed.

Caution

When you load the original on the platen glass, move the document cover gently.

Caution

When Image quality is set High, or you load the original in the ADF, you cannot add the copying job.

When you add the copying job, the number of copies or the settings such as the page size or media type cannot be changed.

If you press the Stop button while reserve copying is in progress, the screen to select the method to cancel copying is displayed. If you select Cancel all reserv. then press the OK button, you can cancel copying all scanned data. If you select Cancel last reserv., then press the OK button, you can cancel the last copying job.

If you set a document of too many pages to reserve copy, Memory is full may appears on the LCD. Press the OK button and wait a while, then try copying again.

If Try again appears on the LCD when scanning, press the OK button, then press the Stop button to cancel copying. After that, copy the documents that have not been finished copying.

Setting Items

You can change the copy settings such as the page size, media type, and intensity.

Press the Menu button, use the button to select a setting item, then press the OK button.

Use the button to adjust each setting item, then press the OK button. The next setting item is displayed.

The LCD returns to the Copy standby screen when all the settings are complete.

Caution

The * (asterisk) on the LCD indicates the current setting.

Some settings cannot be specified in combination with the setting of other setting items or the copy menu.

The settings of the page size, media type, etc. are retained even if the machine is turned off.

Enlarge/Reduce

Select the reduction/enlargement method.

Refer to [ Reducing or Enlarging a Copy ] within this webpage.

Ex:

Copy intensity

Change the intensity.

Ex:

Caution

If you select Auto adjust, load the original on the platen glass.

If you select Manual adjust, use the

button to decrease the intensity or the

button to increase it.

Page size

Select the page size of the loaded paper.

Ex:

Media type

Select the media type of the loaded paper.

Ex:

Image quality

Select the image quality according to the original.

Ex:

Caution

If you use Fast with the media type set to Plain paper and the quality is not as good as expected, select Standard or High and try copying again.

Select High to copy in grayscale. Grayscale renders tones in a range of grays instead of black or white.

Reducing or Enlarging a Copy

You can specify the magnification optionally or select the preset-ratio copying or fit-to-page copying.

In the copy mode, press the Menu button, use the button to select Enlarge/Reduce, then press the OK button.

Use the button to select the reduction/enlargement method, then press the OK button.

Ex:

Caution

Some of the reduction/enlargement methods are not available depending on the copy menu.

Preset ratio

You can select one of the preset ratios to reduce or enlarge copies.

Use the button to select a preset ratio to match the size of your original document and printing paper, then press the OK button.

Magnification

You can specify the copy ratio as a percentage to reduce or enlarge copies.

Use the (-) (+) button or the Numeric buttons to specify the reduction or enlargement ratio (25 - 400%), then press the OK button.

Caution

Press and hold the

(-)

(+) button to quickly advance through the ratios.

Fit to page

The machine automatically reduces or enlarges the image to fit the page size.

Caution

When you select Fit to page, the document size may not be detected correctly depending on the original. In this case, select Preset ratio or Magnification.

When Fit to page is selected, load the document on the platen glass.

About Special copy Menu

The following menus are selectable in the Special copy menu.

Frame erase copy

When copying thick originals such as books, you can make a copy without black margins around the image and gutter shadows.

Refer to [ Copying Thick Originals Such as Books ] within this webpage.

Borderless copy

You can copy images so that they fill the entire page without borders.

Refer to [ Copying without Borders ] within this webpage.

2-on-1 copy

You can copy two original pages onto a single sheet of paper by reducing each image.

Refer to [ Copying Two Pages to Fit onto a Single Page ] within this webpage.

4-on-1 copy

You can copy four original pages onto a single sheet of paper by reducing each image.

Refer to [ Copying Four Pages to Fit onto a Single Page ] within this webpage.

Collated copy

You can obtain sorted printouts when making multiple copies of a multi-paged original.

Refer to [ Making Multiple Copies of an Entire Document ] within this webpage.

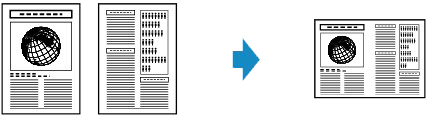

Copying Two Pages to Fit onto a Single Page

You can copy two original pages onto a single sheet of paper by reducing each image.

1. Make sure that the machine is turned on.

2. Load paper.

-⋗ [ Loading Paper ]

3. Press the COPY button.

The Copy standby screen is displayed.

4. Press the Menu button.

The Copy menu screen is displayed.

5. Use the button to select Special copy, then press the OK button.

6. Use the button to select 2-on-1 copy, then press the OK button.

If a page size setting or a media type setting that cannot be used in 2-on-1 copying is selected, the LCD displays the following message.

(1) Use the button to select the page size, then press the OK button.

(2) Use the button to select the media type, then press the OK button.

7. Load the original document on the platen glass or in the ADF.

8. Use the (-) (+) button or the Numeric buttons to specify the number of copies.

Change the print settings as necessary.

Refer to [ Setting Items ] within this webpage.

9. Press the Color button for color copying, or the Black button for black & white copying.

When the document has been loaded on the platen glass:

When the machine finishes scanning the first document, the message below is displayed.

If you have the next sheet of document to scan, load it on the platen glass and press the OK button. The machine starts copying.

If you do not need more scanning, press the tone button to start copying. The machine starts copying.

Caution

You can add the copying job while printing.

When the document has been loaded in the ADF:

The machine starts scanning the next sheet of document automatically after one sheet of document finishes being scanned.

Caution

If Memory is full appears on the LCD when scanning, set the image quality to Standard or reduce the number of sheets of documents, then try copying again. If the problem is not resolved, set the image quality to Fast and try copying again.

Copying Four Pages to Fit onto a Single Page

You can copy four original pages onto a single sheet of paper by reducing each image. Four different layouts are available.

Layout 1

Layout 2

Layout 3

Layout 4

1. Make sure that the machine is turned on.

2. Load paper.

-⋗ [ Loading Paper ]

3. Press the COPY button.

The Copy standby screen is displayed.

4. Press the Menu button.

The Copy menu screen is displayed.

5. Use the button to select Special copy, then press the OK button.

6. Use the button to select 4-on-1 copy, then press the OK button.

If a page size setting or a media type setting that cannot be used in 4-on-1 copying is selected, the LCD displays the following message.

(1) Use the button to select the page size, then press the OK button.

(2) Use the button to select the media type, then press the OK button.

7. Specify the layout.

Follow the procedure below to select the layout.

(1) Press the Menu button.

The Copy menu screen is displayed.

(2) Use the button to select 4-on-1 layout, then press the OK button.

(3) Select the layout, then press the OK button.

Select the layout from Layout 1, Layout 2, Layout 3, or Layout 4.

Caution

The * (asterisk) on the LCD indicates the current setting.

8. Load the original document on the platen glass or in the ADF.

9. Use the (-) (+) button or the Numeric buttons to specify the number of copies.

Change the print settings as necessary.

Refer to [ Setting Items ] within this webpage.

10. Press the Color button for color copying, or the Black button for black & white copying.

When the document has been loaded on the platen glass:

When the machine finishes scanning each sheet from the first to the third document, the message below is displayed.

If you have the next sheet of document to scan, load it on the platen glass and press the OK button. The machine starts copying.

If you do not need more scanning, press the tone button to start copying. The machine starts copying.

Caution

You can add the copying job while printing.

When the document has been loaded in the ADF:

The machine starts scanning the next sheet of document automatically after one sheet of document finishes being scanned.

Caution

If Memory is full appears on the LCD when scanning, set the image quality to Standard or reduce the number of sheets of documents, then try copying again. If the problem is not resolved, set the image quality to Fast and try copying again.

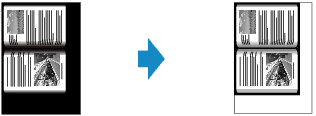

Copying Thick Originals Such as Books

When copying thick originals such as books, you can make a copy without black margins around the image and gutter shadows. Using this function, you can reduce unnecessary ink consumption.

1. Make sure that the machine is turned on.

2. Load paper.

-⋗ [ Loading Paper ]

3. Press the COPY button.

The Copy standby screen is displayed.

4. Press the Menu button.

The Copy menu screen is displayed.

5. Use the button to select Special copy, then press the OK button.

6. Use the button to select Frame erase copy, then press the OK button.

7. Load the original on the platen glass.

Caution

When you use this function, load the original on the platen glass.

8. Use the (-) (+) button or the Numeric buttons to specify the number of copies.

Change the print settings as necessary.

Refer to [ Setting Items ] within this webpage.

9. Press the Color button for color copying, or the Black button for black & white copying.

The machine starts copying.

Caution

Close the document cover.

There may be a narrow black margin that appears around the image. This function removes the dark margins only. If a scanned book is too thin or when the machine is used near a window or in a bright environment, a faint black frame may remain. Also, if the color of an original is dark, the machine cannot distinguish the document color from the shadow and this may cause slight cropping or a shadow on the crease.

Copying without Borders

You can copy images so that they fill the entire page without borders.

1. Make sure that the machine is turned on.

2. Load the photo paper.

-⋗ [ Loading Paper ]

3. Press the COPY button.

The Copy standby screen is displayed.

4. Press the Menu button.

The Copy menu screen is displayed.

5. Use the button to select Special copy, then press the OK button.

6. Use the button to select Borderless copy, then press the OK button.

If a page size setting or a media type setting that cannot be used in borderless copying is selected, the LCD displays the following message.

(1) Use the button to select the page size, then press the OK button.

(2) Use the button to select the media type, then press the OK button.

7. Load the original document on the platen glass.

Caution

When you use this function, load the original on the platen glass.

8. Use the (-) (+) button or the Numeric buttons to specify the number of copies.

Change the print settings as necessary.

Refer to [ Setting Items ] within this webpage.

9. Press the Color button for color copying, or the Black button for black & white copying.

The machine starts borderless copying.

Caution

Slight cropping may occur at the edges since the copied image is enlarged to fill the whole page. You can change the width to be cropped from the borders of the original image as needed. However, the cropped area will be larger if the extension amount is large.

For details on the paper size and the media type available for borderless copying:

-⋗ [ Printing Area ]

Making Multiple Copies of an Entire Document

You can obtain sorted printouts when making multiple copies of a multi-paged original.

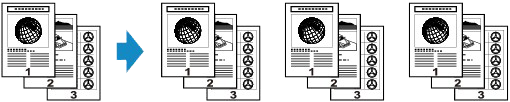

When Collated copy is selected:

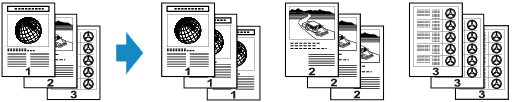

When Collated copy is not selected:

1. Make sure that the machine is turned on.

2. Load the paper.

-⋗ [ Loading Paper ]

3. Press the COPY button.

The Copy standby screen is displayed.

4. Press the Menu button.

The Copy menu screen is displayed.

5. Use the button to select Special copy, then press the OK button.

6. Use the button to select Collated copy, then press the OK button.

7. Load the original in the ADF.

Caution

When you use this function, load the original in the ADF.

8. Use the (-) (+) button or the Numeric buttons to specify the number of copies.

Change the print settings as necessary.

Refer to [ Setting Items ] within this webpage.

9. Press the Color button for color copying, or the Black button for black & white copying.

The machine starts copying.

Caution

The number of pages the machine can read varies with the document. If Memory is full appears on the LCD when scanning, reduce the number of document pages to scan and try copying again.

Making Copies

Solution

Making Copies

Caution

Caution

Caution

Caution

Caution

Setting Items

Caution

Caution

Caution

Reducing or Enlarging a Copy

Caution

Caution

Caution

About Special copy Menu

Copying Two Pages to Fit onto a Single Page

Caution

Caution

Copying Four Pages to Fit onto a Single Page

Caution

Caution

Caution

Copying Thick Originals Such as Books

Caution

Caution

Copying without Borders

Caution

Caution

Making Multiple Copies of an Entire Document

Caution

Caution
