Preparation
Caution
1.

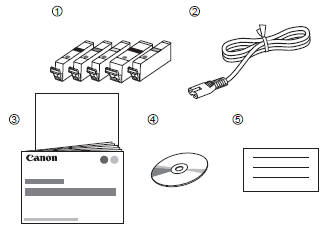

Make sure all the following items are supplied.
(1) Ink tanks (5: BK, M, Y, PGBK, C)
(2) Power cord
(3) Manuals
(4) Setup CD-ROM (containing the drivers, applications and onscreen manuals)
(5) Other documents
Caution
A USB cable is necessary to connect the machine with your computer.
2.
Remove all orange tape and protective materials from the inside and outside of the machine.
Caution
The tape and protective materials may differ in shape and position from what they actually are.
3.
Insert the power cord into the connector on the left side at the back of the machine and into the wall outlet firmly.
Caution
4.
Press the ON button (C), then adjust the LCD (Liquid Crystal Display) (D) to a comfortable viewing angle.
Caution
5.
Use the
6.
When the above screen appears, press the OK button, then go to the next step.
Caution
If an unintended language is displayed on the LCD, press the Back button (F) to return to the Language selection screen.
Caution
When it is necessary to turn off the machine
Be sure to follow the procedure below.
(1) Press the ON button to turn off the machine.
(2) Make sure that the POWER lamp (G) is not lit.
Operating noise may continue for up to 35 seconds until the machine turns off.
Caution
Caution
The specification of the power cord differs for each country or region.
Install the Ink Tanks
1.

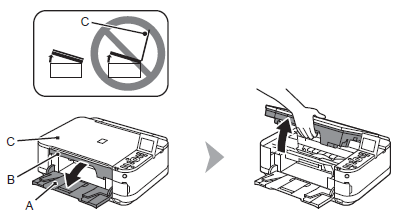

Open the Paper Output Tray (A), then lift the Scanning Unit (Cover) (B) until it stops.
Close the Document Cover (C) and lift it with the Scanning Unit (Cover).
2.
The Print Head Holder (D) moves to the installation position.
If the Print Head Holder does not move, make sure that the machine is turned on. For details, refer to 3 to 4 in "Preparation"
3.
(1) Remove the orange tape completely.
(2) Remove the protective film completely.
4.

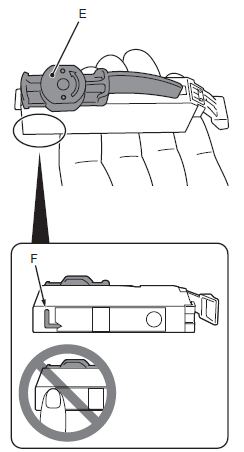

Hold the ink tank with the orange protective cap (E) pointing up while being careful not to block the L-shape air hole (F).
Caution
5.

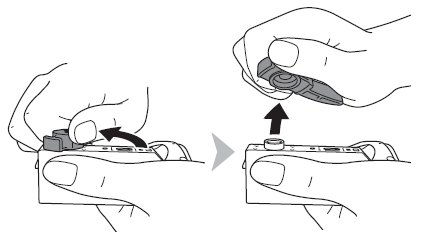

Hold the ink tank by its sides and slowly twist the orange protective cap 90 degrees horizontally to remove it off.

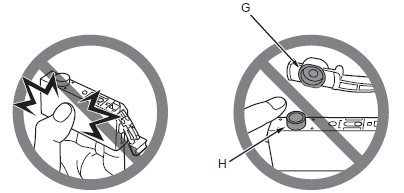

Do not push the sides of the ink tank.
Caution
Do not touch the inside (G) of the orange protective cap or the open ink port (H). The ink may stain your hands if you touch them.
6.

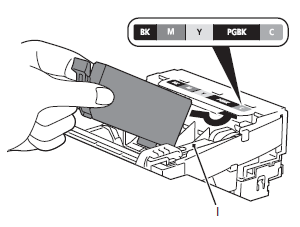

Tilt the ink tank, then insert it under the label and against the back end of the slot.
Make sure that the color of the label matches the ink tank.
Caution
7.
Press the PUSH mark on the ink tank firmly until it clicks.
When the installation is completed properly, the Ink lamp lights red.
8.
Install all the other ink tanks in the same way according to the color order indicated on the label.
lamp lights red. Make sure all the Ink lamps light red.
Caution
9.

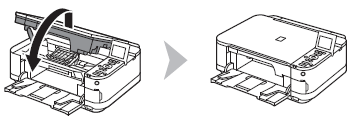

Lift the Scanning Unit (Cover) slightly, then gently close it.
10.

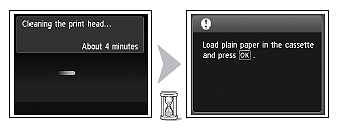

Make sure that the LCD changes as shown in the illustration and go to the next step.
Load plain paper in the Cassette by referring to "Load Paper" and press the OK button.
Caution
If an error message is displayed on the LCD, make sure that the ink tanks are correctly installed.
Caution
The LCD will turn off if the machine is not operated for about 5 minutes.
To restore the display, press any button except the ON button.
Load Paper
1.
Close the Paper Output Tray (A).
2.

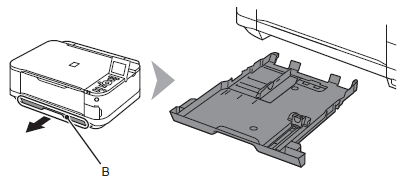

Pull out the Cassette (B).
Caution
The Cassette supports plain paper only. To load specialty paper including photo paper, refer from 8.
3.
Move the left Paper Guide (C) to the edge.
4.
Slide the front Paper Guide (D) to align with the actual size of the paper.
The front Paper Guide will click and stop when it aligns with the corresponding mark of paper size.
5.
Load plain paper.
Load paper with the printing side facing down.
6.
Align the paper to the right side of the Cassette (1), and slide the left Paper Guide completely against the left edge of the paper (2).
Make sure that the height of the paper stack does not exceed the line (E).
7.
Insert the Cassette slowly into the machine until it clicks into place.
8.

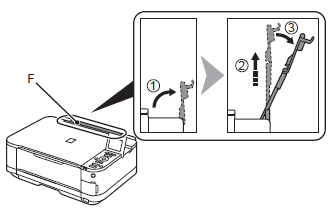

Prepare the Paper Support (F).
(1) Open it.
(2) Withdraw it upwards.
(3) Tilt it back.
9.
Move the Paper Guides (G) to both edges.
10.
Load paper in the center of the Rear Tray (H).
Load paper in portrait orientation with the printing side facing up.
Caution
Load specialty paper including photo paper in the Rear Tray.
11.
Slide the left and right Paper Guides against both edges of the paper.
Make sure that the height of the paper stack does not exceed the line (I).
Caution
For details on how to handle paper, refer to [ Loading Paper ].
