Envelopes must be fed from the Rear Tray. Use either European DL or US Comm. Env. #10-sized envelope.
Caution
- Envelopes with a double flap (or sticker flaps)
- Envelopes with an embossed or treated surface
- Envelopes with pressure stickers
- Envelopes whose gummed flaps are already moistened and adhesive
Loading Envelopes in the Rear Tray
1. Prepare the envelopes.
* The above illustrations show a side view of the leading edge of the envelope.
Caution

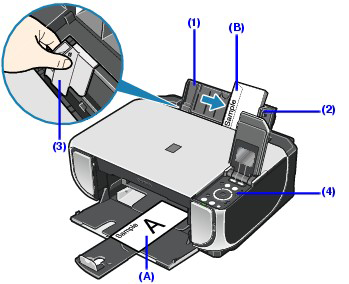

2. Load the envelopes.
(A) Printing orientation
(B) Make sure the flaps are folded.
(1) Retract the Paper Support.
Caution
Envelopes may not be fed properly if the Paper Support is extended.
(2) Load the envelope against the Cover Guide (the right side of the Paper Support).
Load with the address side facing UP and the rear flaps DOWN on the left.
Up to 10 envelopes can be loaded at once.
Caution
Make sure that the Cover Guide is set upright when you load envelopes in the Rear Tray.
(3) Pinch the Paper Guide and slide it against the left side of the envelope.
Caution
Do not slide the Paper Guide too hard. Paper may not be fed properly.
(4) Press the Paper Feed Switch so that the Rear Tray lamp lights up.
3. Specify the settings in the printer driver.
(1) Select Envelope in Media Type.
(2) Select the size for envelopes.
In Windows, select DL Env. or Comm. Env. #10 in Page Size.
In Macintosh, select DL Envelope or #10 Envelope in Paper Size.
(3) Select Landscape in Orientation.
Caution
Be sure to set the printer driver setting properly. If you do not, the address may be printed in the wrong direction.
Caution
For details on printer driver settings, see [Printing from Your Computer].
