Printing directly from the camera (Camera-direct)

Connect the camera to the printer and print directly from the camera.

Caution

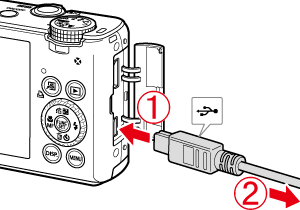

1. Connect the camera to the printer.

Connect the [interface cable] to the camera's [A/V OUT / DIGITAL Terminal].

Connect the other end of the cable to printer's USB terminal.

2. Turn the printer's power on.

3. Press the ⋖Playback⋗ () button to turn on the camera.

4. Operate the ⋖directional buttons⋗ left or right to display an image to print on the LCD monitor.

Make sure that the [SET] icon is displayed in the upper left corner of the LCD monitor, and then press the camera's ⋖FUNC./SET⋗ () button.

5. The screen for specifying the print settings appears.

Operate the ⋖directional buttons⋗ left or right to select [Date] for adding the date.

Operate the ⋖directional buttons⋗ left or right to specify the number of prints.

Select [Paper Settings], and then press the camera's ⋖FUNC./SET⋗ () button.

6. The screen for setting the paper size appears.

Operate the ⋖directional buttons⋗ up or down to select the paper size, then press the camera's ⋖FUNC./SET⋗ () button. In the image shown above, the [9 x 13 cm] size is selected.

7. The screen for setting the paper type appears.

Operate the ⋖directional buttons⋗ up or down to select the paper type, and then press the camera's ⋖FUNC./SET⋗ () button. In the image shown above, [Photo] is selected.

8. The layout (border) settings screen appears.

Operate the ⋖directional buttons⋗ up or down to select the layout type, and then press the camera's ⋖FUNC./SET⋗ () button. In the image shown above, [Bordered] is selected.

9. Return to the print setting screen.

Make sure that the settings are correct.

Select [Print] and press the camera's ⋖FUNC./SET⋗ () button to start printing.
