Name of components and information displayed on the screen (PowerShot SX230 HS / PowerShot SX220 HS)

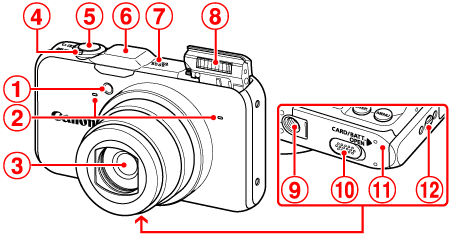

Front Panel

	Lamp		Speaker
	Microphone		Flash
	Lens		Tripod Socket
	Zoom Lever Shooting : (Telephoto) / (Wide Angle) Playback : (Magnify) / (Index)		DC Coupler Terminal Cover
	Shutter Button		Memory Card / Battery Cover
	GPS Signal Receiver		Strap Mount

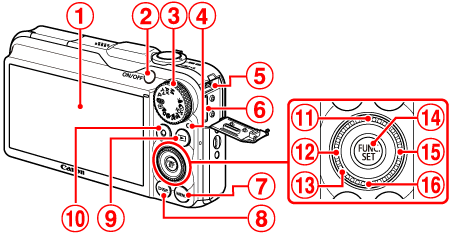

Back Panel

	Screen (LCD Monitor)		(Playback) Button (
	Power Button		Movie Button
	Mode Dial		(Exposure Compensation) / Button
	Indicator		(Macro) / MF (Manual Focus) / Button
	A/V OUT (Audio/Video Output) / DIGITAL Terminal		Control Dial (see below)
	HDMI Terminal		FUNC./SET Button
	Button		(Flash) / Button
	Button		(Self-Timer) / Button

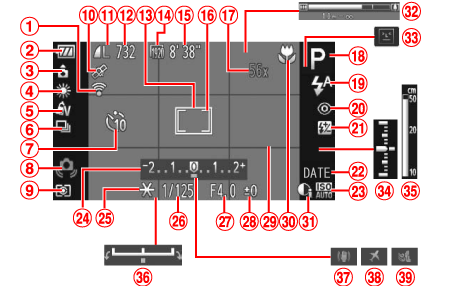

Shooting (Information Display)

	Eye-Fi Connection Status		Flash Exposure Compensation / Flash Output
	Battery Charge Indicator		Date Stamp
	Camera Orientation*		ISO Speed
	White Balance		Exposure Compensation Bar
	My Colors		AE Lock, FE Lock
	Drive Mode		Shutter Speed
	Self-Timer		Aperture Value
	Camera Shake Warning		Exposure Compensation Amount
	Metering Method		Grid Lines
	GPS Reception Status		Focusing Range
	Compression, Recording Pixels		i-Contrast
	Still Images : Recordable Shots		Zoom Bar
	AF Frame		Blink Detection
	Movies: Recording Pixels		Exposure Level
	Remaining Time		MF Indicator
	Spot AE Point Frame		Exposure Shift Bar
	Digital Zoom Magnification / Digital Tele-converter		Image Stabilizer
	Shooting Mode, Scene Icon		Time Zone
	Flash Mode		Wind Filter
	Red-Eye Correction

* : Standard, : Held vertically

When shooting, the camera detects if it is held vertically or horizontally, and adjusts settings accordingly for the best shot. It also detects orientation during playback, so you can hold the camera in either orientation and it will automatically rotate images for correct viewing. This function may not operate correctly when the camera is pointed straight up or down.

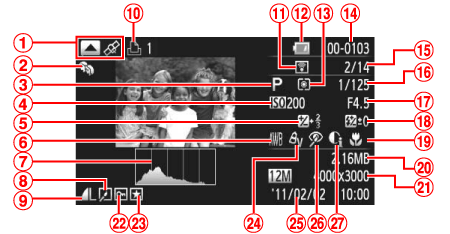

Playback (Detailed Information Display)

	Switch Display (GPS Information Display)		Displayed image number / Total number of images
	My Category		Shutter Speed (Still Images), Image Quality/ Frame Rate (Movies)
	Shooting Mode		Aperture Value
	ISO Speed, Playback Speed		Flash, Flash Exposure Compensation
	Exposure Compensation Amount, Exposure Shift Amount		Focusing Range
	White Balance		File Size
	Histogram		Still Images : Recording Pixels / Movies : Movie Length
	Group Playback, Image Editing		Protect
	Compression (Image Quality) / Recording Pixels, MOV (Movies)		Favorites
	Movies, High-speed Burst, Print List		My Colors
	Eye-Fi Transfer Complete		Shooting Date and Time
	Battery Charge Indicator		Red-Eye Correction
	Metering Method		i-Contrast
	Folder Number – File Number
