Camera
PowerShot SX520 HS

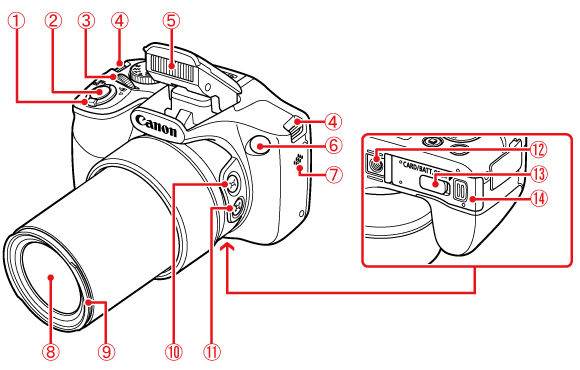

 | Zoom lever Shooting:  (telephoto) /  (wide angle)Playback:  (magnify) /  (index) |  | Lens |
 | Shutter button |  | Lens hood / filter adapter mount |
 | Front dial |  |  (Framing Assist – Seek)button |
 | Strap mount |  |  (Framing Assist – Lock)button |
 | Flash |  | Tripod socket |
 | Lamp |  | DC coupler terminal cover |
 | Speaker |  | Memory card / battery cover |
| Screen (LCD monitor) | | Indicator |
| Microphone | |  (Drive mode) button |
| Power button | |  button |
| Mode dial | |  (ISO speed) / Up button |
| Movie button | |  (Manual focus) /  (Macro) / Left button |
|  (Exposure compensation) /  (Single-image erase) button |  | FUNC./SET button |
| AV OUT (Audio / video output) / DIGITAL terminal |  |  (Flash) / Right button |
| HDMI™terminal |  |  (Display) / Down button |
|  (Playback) button |

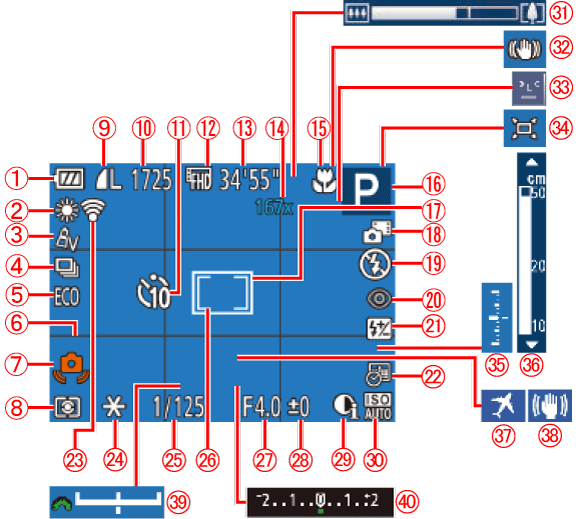

Shooting (Information Display)
| Battery level |  | Flash exposure compensation / Flash output level |
| White balance |  | Date stamp |
| My Colors |  | Eye-Fi connection status |
| Drive mode |  | AE lock, FE lock |
| Eco mode |  | Shutter speed |
| Grid lines |  | Spot AE point frame |
| Camera shake warning |  | Aperture value |
| Metering method |  | Exposure compensation level |
| Still image compression, Resolution |  | i-Contrast |
| Recordable shots * |  | ISO speed |
| Self-timer |  | Zoom bar |
| Movie quality |  | IS mode icon |
| Remaining time |  | Blink detection |
| Digital zoom magnification,Digital tele-converter |  | Auto |
| Focusing range, AF lock |  | Exposure level |
| Shooting mode, Scene icon |  | MF indicator |
| AF frame |  | Time zone |
 | Hybrid Auto mode |  | Image stabilization |
 | Flash mode |  | Exposure shift bar |
 | Red-eye correction |  | Exposure compensation bar |
] mode, indicates the number of shots available.

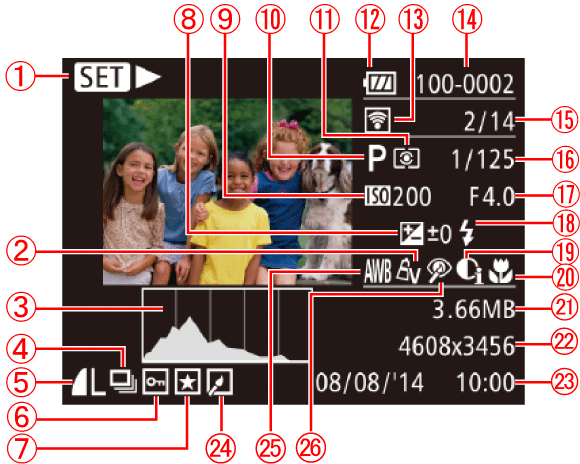

Playback (Detailed Information Display)
| Movies | | Folder number - File number |
| My Colors | | Current image no. / Total no. of images |
| Histogram | | Shutter speed (still images), Image quality / Frame rate (movies) |
| Group playback | | Aperture value |
| Compression (image quality) / Resolution, MOV (movies) | | Flash, Flash exposure compensation |
| Protection | | i-Contrast |
| Favorites | | Focusing range |
| Exposure compensation level, Exposure shift level | | File size |
| ISO speed, Playback speed | | Still images: Resolution Movies: Playback time |
| Shooting mode | | Shooting date/time |
| Metering method | | Image editing |
| Battery level | | White balance |
| Transferred via Eye-Fi | | Red-eye correction |
Caution
Some information may not be displayed when viewing images on a TV
