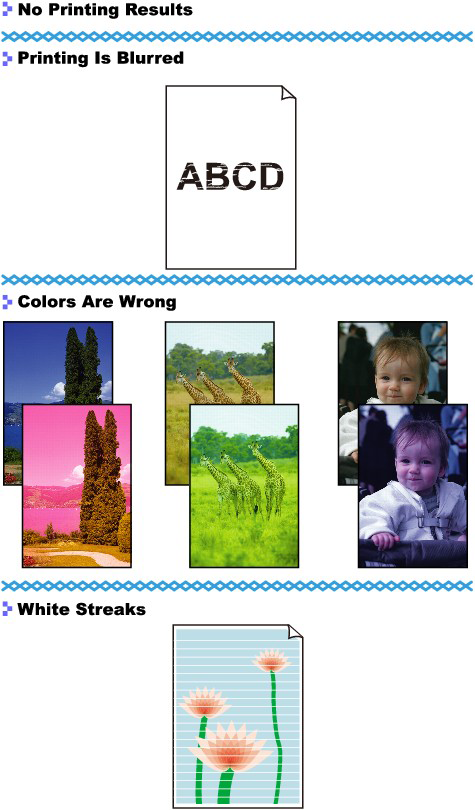

No Printing Results/Printing Is Blurred/Colors Are Wrong/White Streaks

Content Id: 8200216600

Issue

Cause and solution

Check 1: Did you confirm the paper and print quality settings?

Cause and solution

Check 2: Check the status of ink tanks. Replace the ink tank if the ink has run out

When the ink tanks run out of ink, follow the procedure below to replace them.

Caution

To maintain optimal print quality, we recommend the use of specified Canon brand ink tanks. Refilling ink is not recommended.

If you remove an ink tank, replace it immediately. Do not leave the printer with ink tanks removed.

Use new ink tanks for replacement. Installing used ink tanks may cause the nozzles to clog. Furthermore, with such tanks, the printer will not be able to inform you when to replace the ink tanks properly.

To maintain optimal print quality, install ink tanks in the printer within the date indicated on the package box. And also use ink tanks within 6 months of first use (We recommend you to put down the date when installing them).

Caution

Color ink may be consumed even when printing a black-and-white document or when black-and-white printing is specified.

Every ink is also consumed in the standard cleaning and deep cleaning of the Print Head, which may be necessary to maintain the printer's performance. When an ink tank is out of ink, replace it immediately with a new one.

1. Make sure that the power is turned on and open the Paper Output Tray gently.

2. Open the Top Cover.

The Print Head moves to the replacement position.

Caution

Do not hold the Print Head Holder to stop or move it forcibly. Do not touch the Print Head Holder until it stops completely.

Do not touch the metallic parts or other parts inside the printer.

Caution

If the Top Cover is left open for more than 10 minutes, the Print Head Holder moves to the right. In this case, close and reopen the Top Cover.

Caution

The printer may make operating noise when the Print Head moves to the replacement position.

3. Replace the ink tank with the lamp flashing fast.

Push the tab (A) and lift the ink tank to remove.

Do no touch the Print Head Lock Lever (B).

Caution

Handle the ink tank carefully to avoid staining of clothing or the surrounding area.

Discard empty ink tank according to the local laws and regulations regarding disposal of consumables.

Caution

Do not remove two or more ink tanks at the same time. Be sure to replace ink tanks one by one when replacing two or more ink tanks.

For details on ink lamp flashing speed, see Checking the Ink Status.

4. Prepare the new ink tank.

(1) Take the new ink tank out of its package, pull the orange tape () in the direction of the arrow to peel it off, then remove the film ().

Caution

Make sure that the film is completely removed from the air hole (C). If the air hole is blocked with the remaining film, ink may leak out or may not eject properly.

(2) Hold the orange protective cap (D) as indicated in the figure below, then twist and remove it from the bottom of the ink tank.

Remove the protective cap while holding it to prevent the ink from staining your fingers.

Discard the protective cap once it is removed.

Caution

Do not touch the electrical contacts (E) on the ink tank. It can cause the printer to malfunction or become unable to print.

Caution

If you shake an ink tank, the ink may spill out and stain your hands and the surrounding area. Handle an ink tank carefully.

Do not squeeze the side of ink tanks as this may cause the ink to leak out.

Be careful not to stain your hands and the surrounding area with ink on the removed protective cap.

Do not reattach the protective cap once you have removed it. Discard it according to the local laws and regulations regarding disposal of consumables.

Do not touch the open ink port once the protective cap is removed, as this may prevent the ink from being ejected properly.

5. Install the new ink tank.

(1) Insert the front end of ink tank into the Print Head at a slant.

Make sure the position of the ink tank matches the label.

(2) Press the mark (Push) on the ink tank until the ink tank snaps firmly into place.

Make sure that the ink lamp lights up red.

Caution

You cannot print if the ink tank is installed in the wrong position. Be sure to install the ink tank in the correct position according to the label on the Print Head Holder.

You cannot print unless all the ink tanks are installed. Be sure to install all the ink tanks.

6. Close the Top Cover.

If you replaced the ink tank during printing, the printer resumes printing automatically.

Caution

If the Alarm lamp still flashes orange after the Top Cover is closed, refer to the [ Alarm Lamp Flashes Orange ].

When you start printing after replacing the ink tank, the printer starts cleaning the Print Head automatically. Do not perform any other operations until the printer completes the cleaning of the Print Head. The Power lamp flashes green during cleaning.

If printed ruled lines are printed or the print head position is misaligned, adjust the print head position.See[ Aligning the Print Head ].

The printer may make operating noise when preparing for printing.

Replacing an Ink Tank

Cause and solution

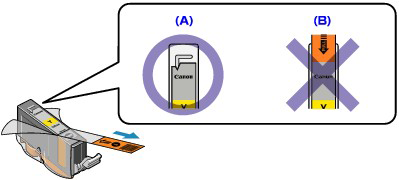

Check 3: Is the orange tape or protective film remaining?

Make sure that all of the protective film is peeled off and the air hole is exposed, as illustrated in (A).

If the orange tape is left as in (B), pull the orange tape and remove it.

Cause and solution

Check 4: Print the Nozzle Check Pattern and perform any necessary maintenance operations such as Print Head Cleaning

Print the Nozzle Check Pattern to determine whether the ink ejects properly from the print head nozzles.

Refer to Routine Maintenance for the [ Printing the Nozzle Check Pattern ],[ Cleaning the Print Head ] , and [ Cleaning the Print Head Deeply ].

If the Nozzle Check Pattern is not printed correctly:Check to see if a particular color's ink tank is not empty. If the Nozzle Check Pattern is not printed correctly though ink is sufficient, perform the Print Head Cleaning and try printing the Nozzle Check Pattern again.

If the problem is not resolved after performing the Print Head Cleaning twice: Perform the Print Head Deep Cleaning. If the problem is not resolved after performing the Print Head Deep Cleaning, turn off the printer and perform another Print Head Deep Cleaning after 24 hours.

If the problem is not resolved after performing the Print Head Deep Cleaning twice: If Print Head Deep Cleaning does not resolve the problem, the Print Head may be damaged. Contact your Canon service representative.

Cause and solution

Check 5: When using paper with one printable surface, make sure that the paper is loaded with the printable side facing up

Printing on the wrong side of such paper may cause unclear prints or prints with reduced quality.

Refer to the paper's instruction manual for detailed information on the printable side.
