Getting Ready to Print (Preparing the Ink and the Paper)

Content Id: 8200282800

Solution

Setting the [Easy Photo Pack]

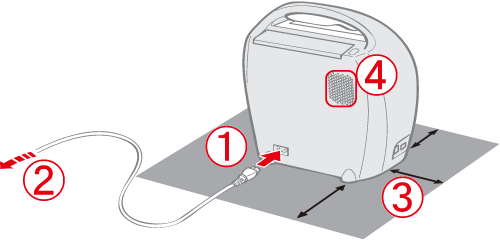

Placing / Connecting the Printer

Caution

Do not touch the [ink sheet] of the cartridge, or pull out the [ink sheet] or papers.

There may not be enough ink left for the allotted sheets, or paper jams or poor printing may result.

Do not handle the cartridge with wet or sweaty hands.

Please use only cartridges specified for use with the [SELPHY ES] series (Cartridges for the CP series cannot be used).

Do not apply excessive force to the cartridge.

The paper may come out from under the clips. In this case, push the paper back under the clips.

Setting the [Easy Photo Pack]

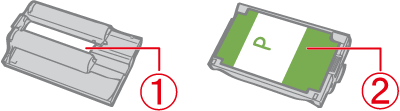

1. Check that the [ink sheet] is tight and that the paper is correctly loaded in the cartridge.

[Ink sheet]

Paper

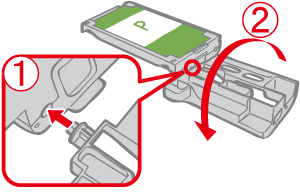

2. When inserting the cartridge into the printer, if the [ink sheet] is so slack it catches, insert the [cleaner unit] and turn it slowly to take up the slack.

Insert the [cleaner unit].

Gently rotate in the counterclockwise direction to take up the slack.*

* It will not be possible to use all the paper for printing if you overwind the ink sheet.

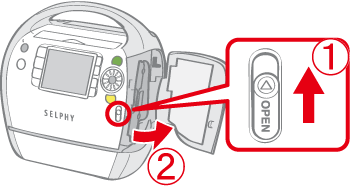

3. Slide the ⋖cartridge cover lever⋗ up to open the ⋖cartridge cover⋗.

Push up the ⋖cartridge cover lever⋗.

Open the ⋖cartridge cover⋗.

4. If there is a [cleaner unit] inside the printer, grasp it and remove it.

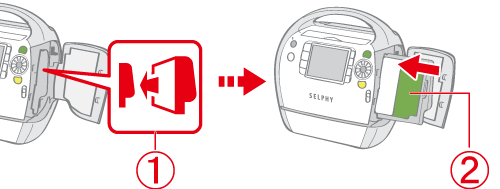

5. Make sure that the cartridge is oriented as shown by the direction indicator on the inside of the printer, and insert the cartridge until it clicks into place.
