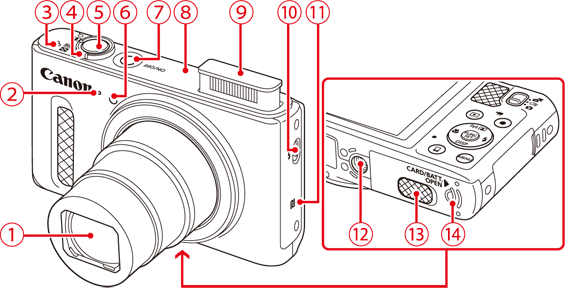

Camera
PowerShot SX610 HS
 | Lens |  | Wi-Fi antenna area |
 | Microphone |  | Flash |
 | Speaker |  | [  (Flash pop up)] switch |
 | Zoom lever Shooting: [  (telephoto)] / [  (wide angle)]Playback: [  (magnify)] / [  ](index)] |  |  (N-Mark)* |
 | Shutter button |  | Tripod socket |
 | Lamp |  | DC coupler terminal cover |
 | Power button |  | Memory card/battery cover |
| Screen (LCD monitor) | | Indicator |
| Strap mount | | [  (Mobile Device Connection)] button |
| AV OUT (Audio/video output) / DIGITAL terminal | | Movie button |
| HDMI™ terminal | | FUNC. (Function) / SET button |
| Mode switch | | [ (Flash)] / Right button |
| [  (Playback)] button | | [  (Display)] / Down button |
| [  Auto Zoom] / [  (Wi-Fi)] / Up button |  | [  (Menu)] button |
| [  (Macro)] / Left button |

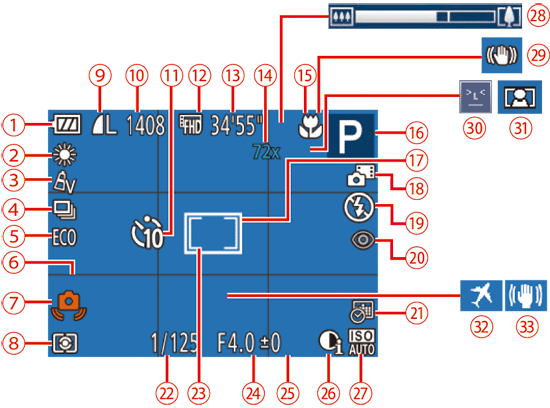

Shooting (Information Display)
| Battery level |  | Hybrid Auto mode |
| White balance |  | Flash mode |
| My Colors |  | Red-eye correction |
| Drive mode |  | Date stamp |
| Eco mode |  | Shutter speed |
| Grid lines |  | Spot frame |
| Camera shake warning |  | Aperture value |
| Metering method |  | Exposure compensation level |
| Still image compression, Recording pixel setting |  | i-Contrast |
| Recordable shots |  | ISO speed |
| Self-timer |  | Zoom bar |
| Movie quality |  | IS mode icon |
| Remaining time |  | Blink detection |
| Zoom magnification, Digital tele-converter |  | Auto zoom |
| Focus range |  | Time zone |
 | Shooting mode, Scene icon |  | Image stabilization |
 | AF Frame |
] mode, indicates the number of shots available.

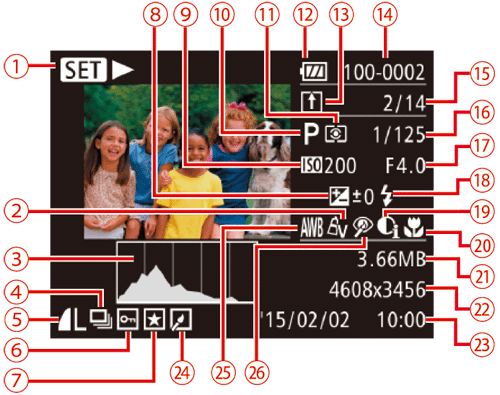

Playback (Detailed Information Display)
| Movies, Highspeed burst | | Folder number - File number |
| My Colors | | Current image no. / Total no. of images |
| Histogram | | Shutter speed (still images), Image quality / Frame rate (movies) |
| Group playback | | Aperture value |
| Compression (image quality) / Recording pixel setting, MP4 (movies) | | Flash |
| Protection | | i-Contrast |
| Favorites | | Focus range |
| Exposure compensation level | | File size |
| Still images: Recording pixel setting Movies: Playback time | ||
| ISO speed, Playback speed | | Shooting date/time |
| Shooting mode | | Image editing |
| Metering method | | White balance |
| Battery level | | Red-eye correction |
| Image Sync |
Caution
Some information may not be displayed when viewing images on a TV.
