Checking the Available Connection Methods for the Wireless LAN

Content Id: 8202890500

Solution

Before You Start
Selecting Wireless LAN
Connecting to a Wireless LAN

Before You Start

Follow these steps to connect the machine to a network.

1. Check your computer settings.

Make sure that the computer is correctly connected to the network. For more information, see the instruction manuals for the devices you are using, or contact the device manufacturers.

Make sure that the network settings have been completed on the computer. If the network has not been set up properly, you will not be able to use the machine on the network, even if you perform the rest of the procedure below.

- Depending on the network, you may need to change settings for the communication method (half-duplex/full-duplex) or the Ethernet type (10BASE-T/100BASE-TX/1000BASE-T). For more information, contact your Internet service provider or Network Administrator.

- To check the MAC address of the machine. For details, see the "e-Manual" (HTML manual) in the DVD-ROM supplied with the machine.

- To connect to an IEEE 802.1X network, see the "e-Manual" (HTML manual) in the DVD-ROM supplied with the machine.

2. Select wired or wireless LAN.

see the "e-Manual" (HTML manual) in the DVD-ROM supplied with the machine.

3. Connect to a wired or wireless LAN.

Proceed to the section that corresponds to the setting you selected in step 2.

see the "e-Manual" (HTML manual) in the DVD-ROM supplied with the machine.

4. Set the IP address as necessary.

At the time of purchase, the machine is set to automatically acquire an IP address. Change this setting if you want to use a specific IP address.

see [ Setting IP Addresses ].

Selecting Wireless LAN

After you decide wireless LAN to connect the machine to the computer, select wireless LAN using the operation panel. Note that if you change the setting from ⋖Wired LAN⋗ to ⋖Wireless LAN⋗ or vice versa, you will need to uninstall MF Drivers installed on your computer and then reinstall them. For more information, see "MF Driver Installation Guide."

1. Tap ⋖Menu⋗ in the Home screen.

2. Tap ⋖Network Settings⋗.

If the logon screen appears, enter the correct ID and PIN using the numeric keys, and then press

. For details, see the "e-Manual" (HTML manual) in the DVD-ROM supplied with the machine.

3. Tap ⋖Select Wired/Wireless LAN⋗.

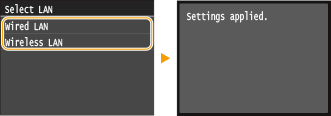

4. Tap ⋖Wireless LAN⋗.

Connecting to a Wireless LAN

Wireless routers (or access points) connect the machine to a computer via radio waves. If your wireless router is equipped with Wi-Fi Protected Setup (WPS), configuring your network is automatic and easy. If your networking devices do not support automatic configuration, or if you want to specify authentication and encryption settings in detail, you need to manually set up the connection. Make sure that your computer is correctly connected to the network.

Caution

Risk of information leak

Use wireless LAN connection at your own discretion and at your own risk. If the machine is connected to an unsecured network, your personal information might be leaked to a third party because radio waves used in wireless communication can go anywhere nearby, even beyond walls.

Wireless LAN security

The wireless LAN function of this machine supports WEP, WPA-PSK, and WPA2-PSK. For the wireless security compatibility of your wireless router, see the instruction manuals for your networking devices or contact your manufacturer.

Caution

Required devices for wireless LAN connection

The machine does not come with a wireless router. Have the router ready as necessary.

The wireless router must conform to IEEE 802.11b/g/n and be able to communicate in 2.4 GHz frequency band. For more information, see the instruction manuals for your networking devices or contact your manufacturer.

Setting Up Connection Using WPS

When using WPS, two modes are available: push button mode and PIN code mode.

Push Button Mode

Find the WPS mark shown below on the package of your wireless router. Also make sure that there is a WPS button on your networking device.

PIN Code Mode

Some WPS routers do not support the push button mode. If WPS PIN code mode is mentioned on the package or in the instruction manuals of your networking device, set up the connection by entering the PIN code.

Caution

If the wireless router is set to use WEP authentication, you may not be able to set up connection using WPS.

Manually Setting Up Connection

When manually setting up a wireless connection, you can either select a wireless router or manually enter the required information. Regardless of the method, make sure that you have the required setup information, including the SSID and network key. For details, see [ Checking the Access Point Name or Network Key ].

Selecting a Wireless Router

Select this setup option if you need to manually set up the connection but want to complete the setup as easily as possible.

Manually Entering the Setup Information

If you want to specify security settings in detail, such as authentication and encryption settings, manually enter the SSID and network key to set up the connection.
