Getting StartedViewing Images
Deleting or Copying Images At Once
Creating and Viewing an Album
Operations During Playback
Getting Started
You can use the Connect Station’s remote control to perform operations while using a TV as a monitor.
Power button | Turn on the power or put Connect Station into the standby state. | |
Cross keys | ||
Menu button | Menu screen appears. | |
Back button | Previous screen reappears. | |
Set button | Selected item takes effect. | |
Home button | Home screen appears. | |
Remote control transmitter |
Viewing Images

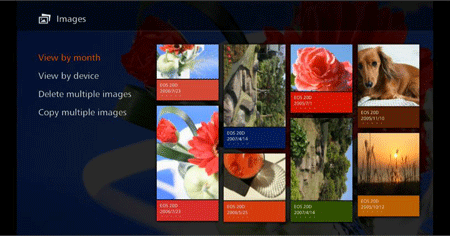

To view images on a TV set, select [Images] or [Albums] on the Home screen.
1.Viewing Images from the Image List
Caution

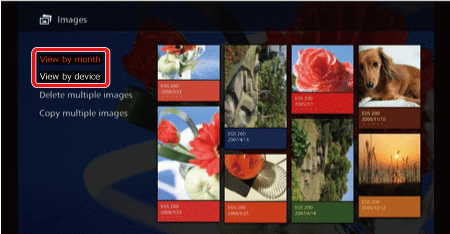

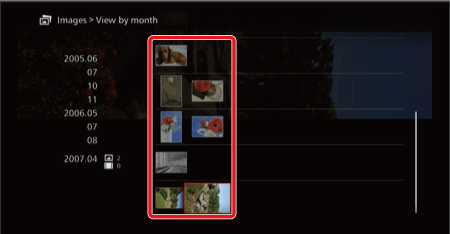

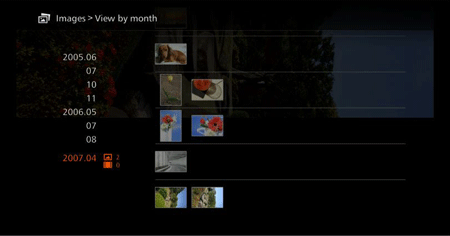

2.Viewing Images by Shooting Month or Camera/Camcorder
Caution

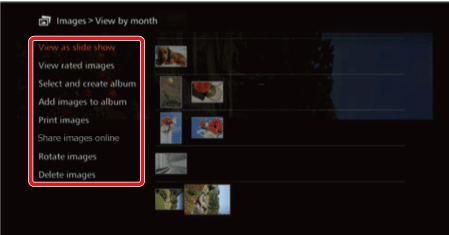

3.Setting the submenu
Menu Items | Settings |
View as slide show | A slide show of the target images will be played back. |
View rated images | Only rated images will be displayed. You can set ratings during the playback of images. |
Select and create album | An album will be created from selected images. |
Add images to album*1 | Images will be added to a created album. When you select an album from the list and press [SET], images will be added to the selected album. |
Print images*2 *3 | Selected images are printed. For information on how to print, see Printing with a Wi-Fi Printer (Connect Station CS100) . |
Share images online | Selected images will be shared via Web service. |
Rotate images*1 *2 | Selected images will be rotated. Each time you press [SET], images are rotated clockwise by 90°. |
Delete images | Selected images are deleted. Select an image and press [SET] to append [ |
*1 Displayed only when images are selected in the thumbnail area. *2 Not available when a movie is selected. *3 Not available when a printer is not set. |
Deleting or Copying Images At Once
Specify images by a shooting month, and delete them or copy them to a card at once. You can also select images one by one from the displayed images.
[Delete multiple images]
1. Select [Images] on the Home screen and press the [SET] button.

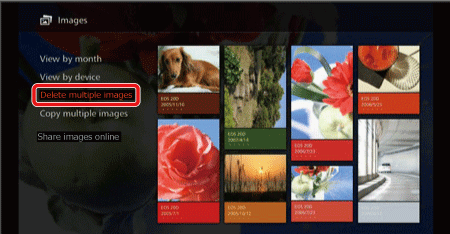

2. Select [Delete multiple images] and press the [SET] button.

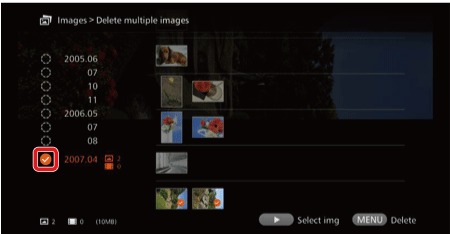

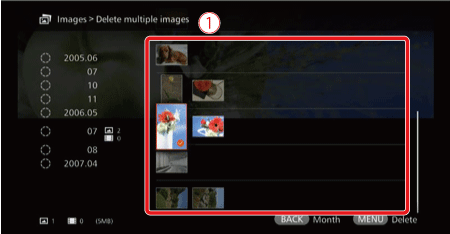

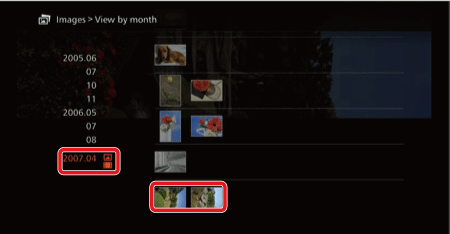

3. Sort the target images by a shooting month.
Select a shooting month in the left-side area and press the [SET] button to append [ ] for all the target images.
Caution
Press the [ ] key to select images in the thumbnail area. Select an image and press [SET] to append [
] for that image.
: thumbnail area

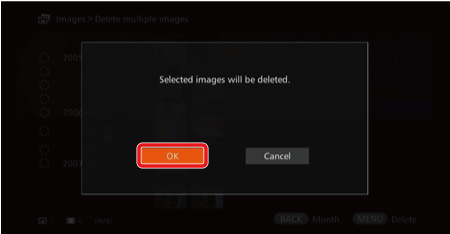

4.Pressing [MENU] will delete the images. Select [OK] and press the [SET] button.
[Copy multiple images]
Creating and Viewing an Album
Creating an album enables you to do the following:

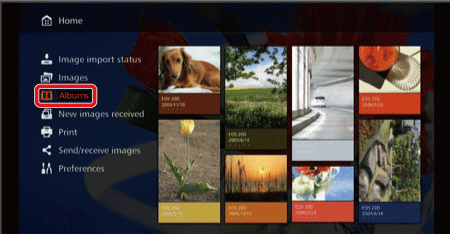

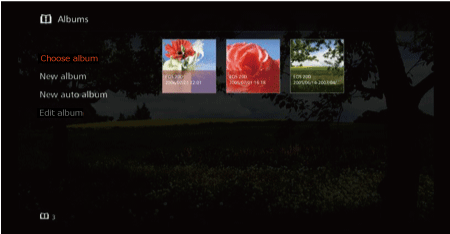

To view, create, or edit an album, select [Albums] on the Home screen and press the [SET] button.
[Creating an Album]
Select desired images from the images imported to Connect Station and create an album.

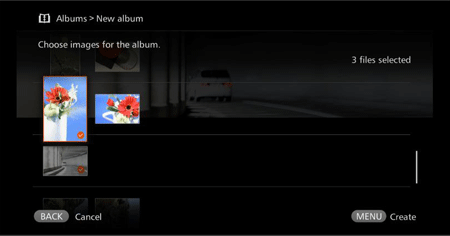

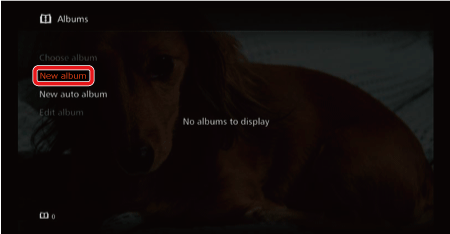

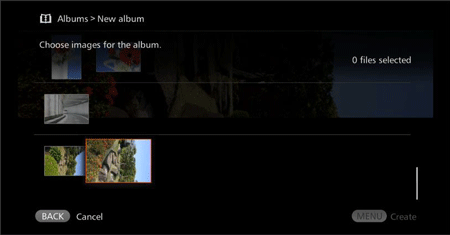

1. Select [New album] and press the [SET] button to display the image selection screen.
2.Select images and press [SET] to append [ ] for the images to be compiled into an album.
3.Pressing [MENU] creates an album.
Caution
[Creating an Album Automatically]
Connect Station automatically selects images and creates an auto album.

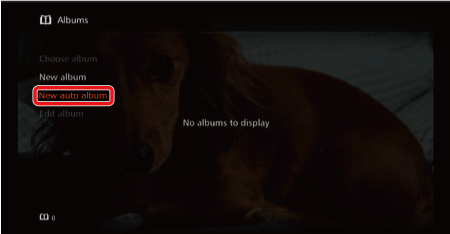

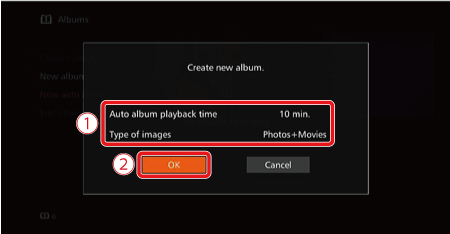

1. Select [New auto album] and press the [SET] button to display the auto album setting screen.
2.When you set [Auto album playback time] and [Type of images], select [OK]
and press the [SET] button, an auto album will be created.

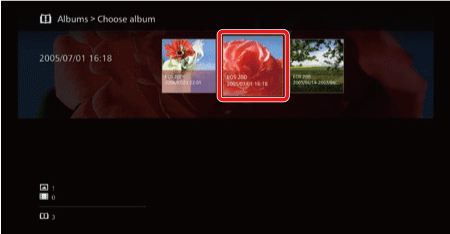

[Selecting an Album]
When you select an album and press [SET], a slide show of the album will be played back.

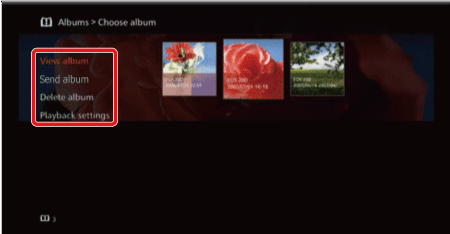

When you press [MENU] while an album is selected, the menu shown below will appear.
Menu Items | Settings |
View album | The images in the album will be displayed as thumbnails. |
Send album | An album will be sent to another Connect Station via the Internet. |
Delete album | The selected album will be deleted. |
Playback settings | Specify the slide show playback settings. You can set the display time for each still photo and playback time for movies. |

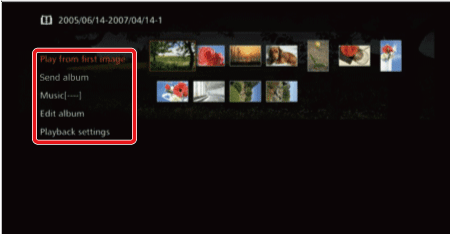

When you press [MENU] while an album is selected, the menu shown below will appear.
Menu Items | Settings |
Play from first image | A slide show of the album will be played back. |
Send album | An album will be sent to another Connect Station via the Internet. |
Music | Select the background music to be played during the slide show. |
Edit album | Add images to the album, or remove images from the album. |
Playback settings | Specify the slide show playback settings. You can set the display time for each still photo and playback time for movies. |
[Editing an Album]
Add images to an album, or remove images from an album. Images will not be deleted from Connect Station even if you remove them from an album.

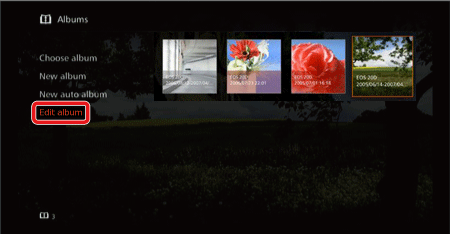

1. Select [Edit album] and press the [SET] button.

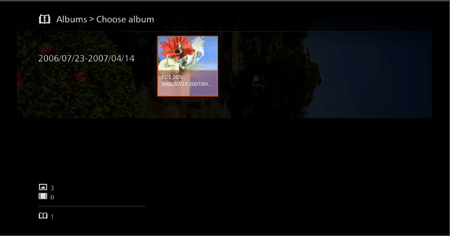

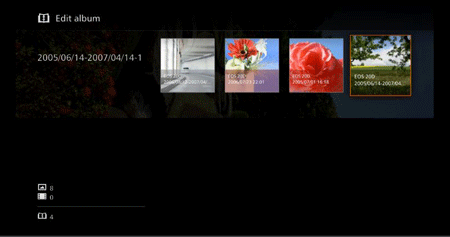

2.When you select an album and press [SET], the editing screen will appear.

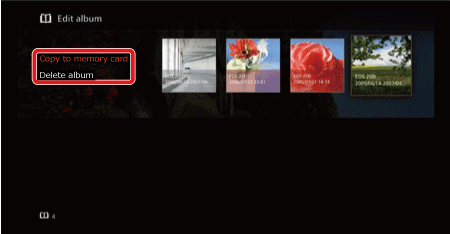

When you press [MENU] while an album is selected and the images are displayed as thumbnails, the menu shown below will appear.
Menu Items | Settings |
Copy to memory card | The selected album will be copied to a card. |
Delete album | The selected album will be deleted. |
3.Selecting an image to remove
Select an image and press [SET] to append [ ] for the image to be removed.

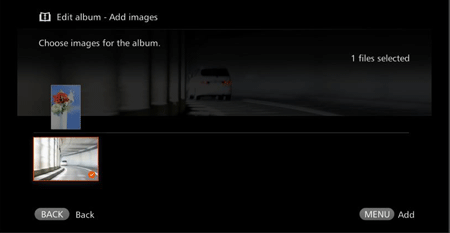

4.Selecting an image to add
Press the [ ] key to display the image selection screen. Select an image and press [SET] to append [
] for the image to be added.
5.When you press [MENU], the images to be added will be accepted and the editing screen will reappear.

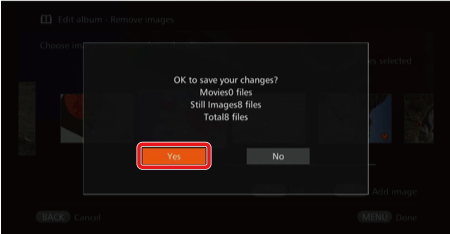

6.Saving the edited data
Press [MENU], select [OK] and press the [SET] button, the edited data will be saved and the album selection screen will reappear.
Operations During Playback

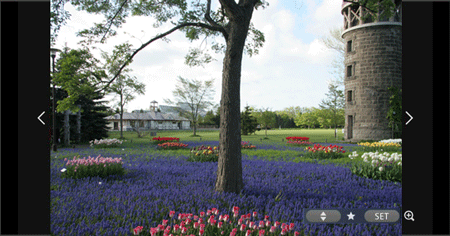

When playing back a selected image or a slide show, you can perform the operations below by using the remote control.
Menu Items | Settings |
Displays the next image. | |
Displays the previous image. | |
Rate images with one of five levels. *1 | |
SET | (Photo) Magnify the image*2 (Movie) Pause |
*1 Cannot be set while the album is being played back. *2 To reduce the image in magnified view, press [MENU]. |

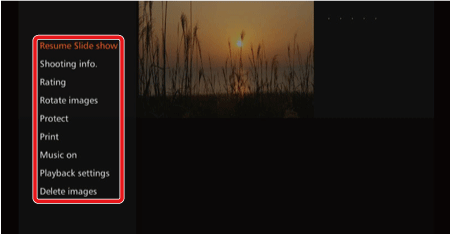

When you press [MENU] during single-image playback or slide show playback, the menu shown below will appear.
Menu Items | Settings |
Slide show | Start/stop slide show. |
Shooting information | Switch display settings of shooting information. |
Rating*1 | Rate images with one of five levels. |
Rotate images*2 | Rotate an image clockwise by 90°. |
Protect*1 | Enable/disable the protect setting. |
Print*2*3 | Print the displayed image. |
Music*1 | Set background music to on/off. |
Playback settings | Set the display time for each still photo and playback time for movies. |
Delete images*1 | Delete the displayed image. |
Remove from album*4 | Remove the displayed image from the album. |
*1 Not displayed when an album is being played back. *2 Not displayed when a movie is selected. *3 Not available when a printer is not set. *4 Displayed only when an album is being played back. |
