Connecting with a camera via a USB cable and saving images (Connect Station CS100)

You can use an interface cable (USB cable) to connect a camera to the Connect Station and save images.

For more information on interface cables, please refer to the camera’s instruction manual.

Getting Started

Connect Station can play back images of the formats shown below. Files of any other formats cannot be played back even if they are imported to Connect Station.

Caution

Importing images

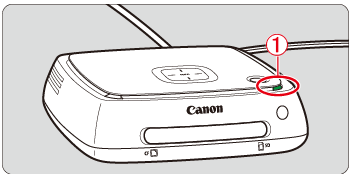

1. Press the power button on Connect Station with its power off, the power lamp will light up in orange. The light will turn green when Connect Station starts. (It takes approx. one minute before Connect Station starts.)

Connect Station Status	Power Lamp Indicator
Power off	(Lamp off)
Standby	Orange (lamp on)
Power on	Green (lamp on)

Caution

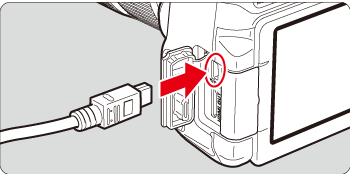

2. Connect the USB terminal on Connect Station to a camera/ camcorder, then turn on the camera’s/camcorder’s power.

Caution

3. When a connection has been established, The access lamp will blink, and the import of images will start.

: Access Lamp

4. The import is complete when the access lamp stops blinking and stays lit.

When the import is complete, turn off the camera/camcorder to terminate the connection, and then disconnect the USB cable.

Caution

Caution

Confirming Image Importing Status

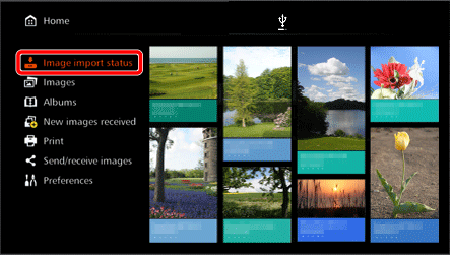

1.To check the image importing status, use the remote control to select [Image importing status] on the Home screen.

2. When you select an item by pressing the [ ], [ ] keys and press [MENU], you can cancel the processing that goes on when Connect Station is importing images or standing by.

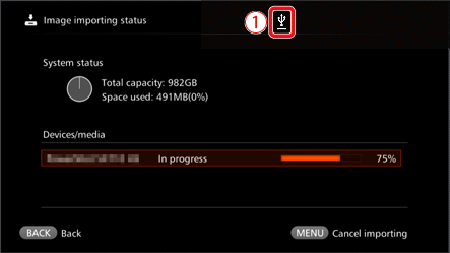

: During the import, the icon indicating that data is being imported is displayed on the upper right of the screen

Icons on the Screen

	Importing images from a camera/camcorder via a wireless LAN
	Importing images from a camera/camcorder via a wired connection
	Importing images from a CF card
	Importing images from an SD card

Caution
