Printing from a Computer via Wi-Fi (Macintosh) (SELPHY CP910)

The procedure for wirelessly printing images saved to Wi-Fi®*1-compatible computers is explained in the sections below.

*1 Wi-Fi is a brand name that indicates interoperability certification of wireless LAN devices.

This printer is a Wi-Fi certified product. You can wirelessly print images from Wi-Fi-supporting smartphones, tablets, cameras, and computers.

Caution

Before using Wi-Fi, be sure to read "Wi-Fi (Wireless LAN) Precautions" in the Printer User Guide.

Some features are not available when printing via Wi-Fi.

Caution

For convenience, wireless routers and other base stations are referred to as "access point".

Confirming Access Point Compatibility

Before you can print via Wi-Fi from a computer, the computer with the images to send must be connected to an access point.

Use an access point that supports the following Wi-Fi standards. To check the standards your access point supports, refer to the access point user manual.

Standards	IEEE802.11b/g
Supported Channels	1 – 11
Transmission Methods	DSSS (IEEE 802.11b) and OFDM (IEEE 802.11g)
Security	No security, 64- and 128-bit WEP (open system authentication), WPA-PSK (TKIP), WPA-PSK (AES), WPA2-PSK (TKIP), and WPA2-PSK (AES)

Confirm that the access point supports WPS (Wi-Fi Protected Setup)

WPS-Compatible Access Points	Connect as described in WPS-Compatible Access Points*.
Non-WPS Access Points WPS Support Unknown	Check the following information and connect as described in Non-WPS Access Points - Network name (SSID/ESSID) - Network authentication / data encryption (encryption method or mode) - Password (network key)

* WPS connections are not possible for access points set up for WEP security. Connect as described in Non-WPS Access Points.

Caution

If your network is managed by a system administrator, ask the administrator for network setting details.

Connecting Selphy to the Access Point

How to connect varies depending on whether the access point is WPS compatible or not. For more information on　non-compatible access points, please refer toNon-WPS Access Points .

WPS-Compatible Access Points

Return to top

1. Check the access point.

Confirm that the access point is on and ready for communication.

2. Prepare SELPHY.

Remove any inserted memory cards or USB flash drives.

Insert a loaded paper cassette and an ink cassette in SELPHY.

For more information, please refer to Printing images with your new SELPHY CP910 photo printer.

3. Access the setting screen.

Press the MENU button ⋖

⋗.

Press the ⋖

⋗⋖

⋗ buttons to select [Wi-Fi Settings], and then press the ⋖OK⋗ button.

Press the ⋖

⋗⋖

⋗ buttons to select [Connection Settings], and then press the ⋖OK⋗ button.

4. Check the printer name.

Check the displayed printer name and press the ⋖OK⋗ button.

When you connect devices via Wi-Fi, this name will be displayed on the target device to identify the printer.

You can change the printer name by pressing the EDIT button.

5. Choose the connection method.

Press the ⋖

⋗⋖

⋗ buttons to select [Via Wi-Fi Network], and then press the ⋖OK⋗ button.

6. Choose the access point connection method.

Press the ⋖

⋗⋖

⋗ buttons to select [WPS Connection], and then press the ⋖OK⋗ button.

7. Choose the WPS connection method.

Press the ⋖⋗⋖⋗ buttons to select [PBC Method], and then press the ⋖OK⋗ button.

The screen at below is displayed.

8. On the access point, hold down the WPS connection button for a few seconds.

Caution

For details on where the button is located and how long to press it, check the access point user manual

9. Establish the connection.

On the printer, press the ⋖OK⋗ button.

[Connecting] is displayed on the printer, followed by [Connected to access point] when connected. Press the ⋖OK⋗ button.

・The screen at below is displayed, indicating the name of the access point.

Please proceed to Preparing the Computer

Caution

If you selected [PIN Method] in step 7, use the computer to specify the PIN code (displayed on the printer) on the access point, press the ⋖OK⋗ button on the printer, and go to step 9. For instructions on configuring PIN codes, refer to the access point user manual.

On SELPHY, wireless signal strength is indicated by the following icons.

[ ] High, [ ] Medium, [ ] Low, [ ] Weak, [ ] Out-of-range

Non-WPS Access Points

Return to top

1. Check the access point.

Confirm that the access point is on and ready for communication.

2. Prepare SELPHY.

・Remove any inserted memory cards or USB flash drives.

・Insert a loaded paper cassette and an ink cassette in SELPHY.

For more information, please refer to Printing images with your new SELPHY CP910 photo printer.

3. Access the setting screen.

Press the MENU button ⋖

⋗.

Press the ⋖

⋗⋖

⋗ buttons to select [Wi-Fi Settings], and then press the ⋖OK⋗ button.

Press the ⋖

⋗⋖

⋗ buttons to select [Connection Settings], and then press the ⋖OK⋗ button.

4. Check the printer name.

Check the displayed printer name and press the ⋖OK⋗ button.

When you connect devices via Wi-Fi, this name will be displayed on the target device to identify the printer.

You can change the printer name by pressing the EDIT button.

5. Choose the connection method.

Press the ⋖

⋗⋖

⋗ buttons to select [Via Wi-Fi Network], and then press the ⋖OK⋗ button.

6. Choose the access point connection method.

Press the ⋖

⋗⋖

⋗ buttons to select [Search for an access point], and then press the ⋖OK⋗ button.

Access points found nearby are listed.

7. Choose the access point.

Press the ⋖

⋗⋖

⋗ buttons to select the access point, and then press the ⋖OK⋗ button.

8. Enter the password.

Press the EDIT button to access the input screen, and then enter the password.

Press the ⋖OK⋗ button.

9. Check the access point.

Once the printer is connected to the access point, the screen at left is displayed. Check the indicated access point name and press the ⋖OK⋗ button.

The screen below is displayed.

Return to top

Caution

Selecting an unprotected access point in step 7 and pressing the ⋖OK⋗ button will display the screen in step 9.

Up to 20 access points are listed. If your desired access point is not listed, press the ⋖

⋗ button and select [Manual Settings] in step 6 to specify the access point manually. Follow on-screen instructions and enter the SSID, security settings, and the password.

If WEP security is used and you enter the wrong password in step 8, when you press the ⋖OK⋗ button and then press the ⋖OK⋗ button again after the message, you will go to step 9, but printing is not possible. Check the access point password and try to connect again, starting at step 3.

On SELPHY, wireless signal strength is indicated by the following icons.

[ ] High, [ ] Medium, [ ] Low, [ ] Weak, [ ] Out-of-range

Caution

Subsequent Connections

Once you have connected to an access point, the printer will automatically reconnect to the previous access point whenever you turn it on again, and the standby screen at left will be displayed.

If connection fails because the access point is off or for another reason, [

] will be displayed. Check access point settings.

Even during standby, you can print images on a memory card by inserting the card.

Automatic access point connection at startup can also be disabled.

Preparing the Computer

Check your computer environment.

SELPHY can connect via Wi-Fi to computers running the following operating systems.

OS	Mac OS X v10.6.8 - v10.8
Free Disk Space	Approx. 7 MB*

* Space required for printer driver installation. The space required for software operation and printing varies depending on the software and print data.

Installing the Printer Driver (Macintosh)

Caution

The example procedures below are shown in Mac OS X (v10.6). The setting items and screens displayed may differ depending on the version of Mac OS X installed on your computer.

1. Confirm that SELPHY is connected to the access point.

Confirm that the screen below is displayed on SELPHY.

2. Install the printer driver.

2-1. Insert the included CD-ROM in the computer and double-click the disc icon on the desktop or in the sidebar.

2-2. Double-click the [Driver] folder

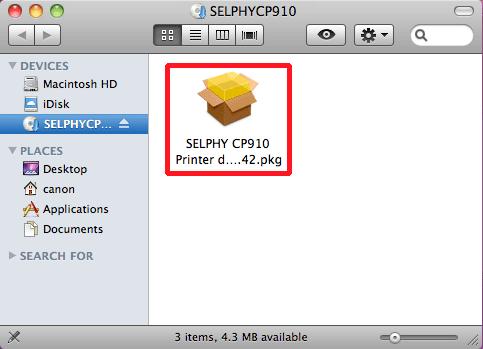

2-3. Double-click [ ].

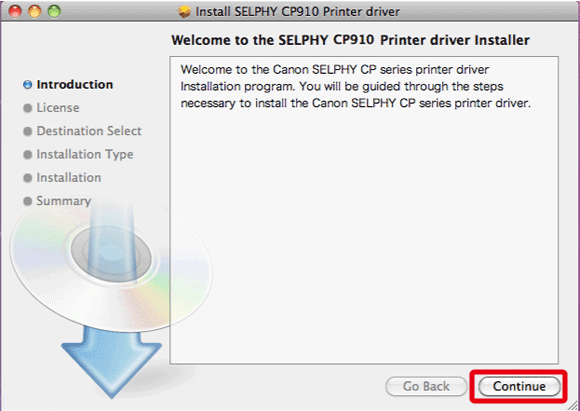

2-4. Click [Continue].

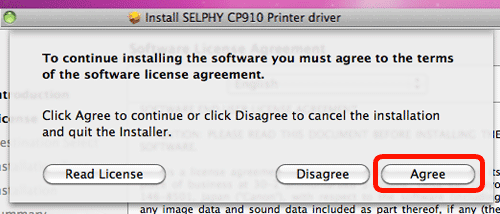

2-5. Click [Agree].G0170204

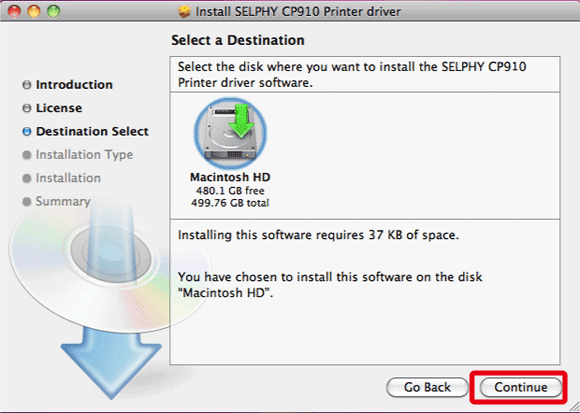

2-6. Click [Continue].

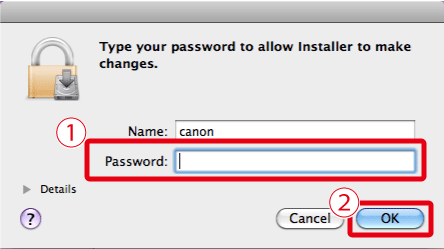

2-7. Enter the computer’s password in the password field, and click [OK].

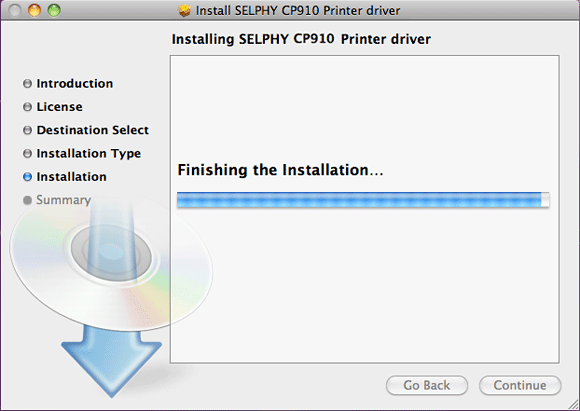

2-8. The following screen appears.

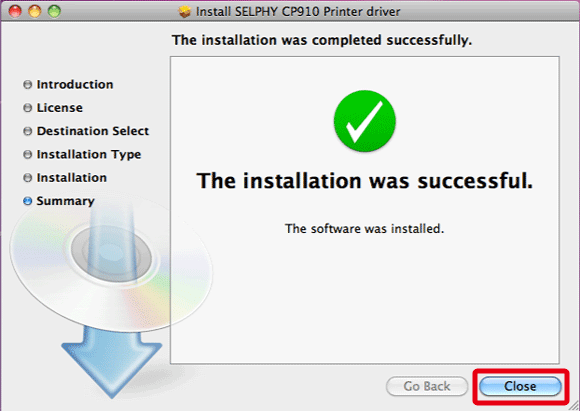

2-9. Click [Close].

3. Register the printer.

3-1. Access [System Preferences].

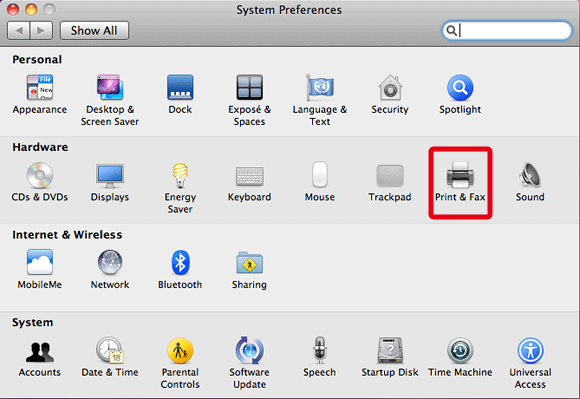

3-2. Click [Print & Fax].

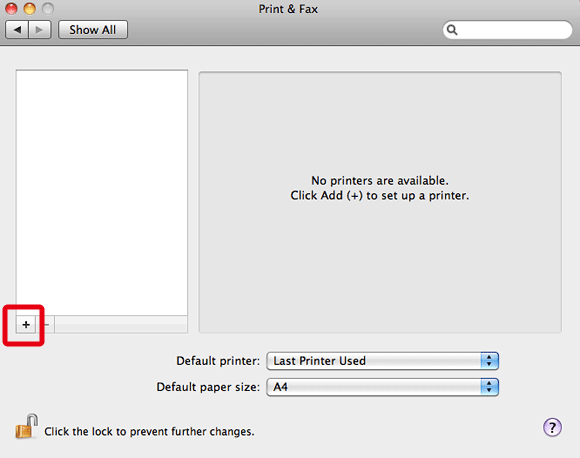

3-3. Click [+] below the list.

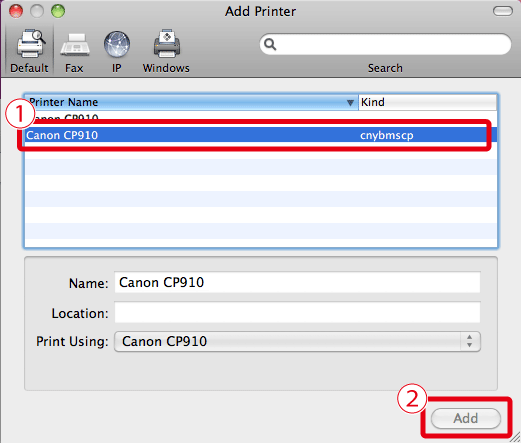

3-4. Select the printer named "Canon CP910"(type: "cnybmscp"), and click [Add].

Printing from the Computer

Use photo software to print as follows.

1. Confirm that SELPHY is connected to the access point.

Confirm that the screen below is displayed on SELPHY.

Computer settings are explained from step 2.

2. Access the printing dialog box.

Start the photo software, select images to print, and access the printing dialog box.

As the destination printer, select [Canon (SELPHY) CP910 (WS)].

3. Choose printing options.

Choose a paper size corresponding to the size of paper and ink cassettes in SELPHY. Also choose bordered or borderless printing as an option with the listed paper sizes.

Choose the printing orientation and number of copies, as desired.

4. Print.

Return to top

Caution

Printing in progress cannot be canceled from SELPHY by using the ⋖

⋗ button. Use the computer to stop printing.

For computer or photo software instructions, refer to the relevant user manual.
