Solution
The method for inserting paper into the paper cassette is explained below. The example procedure is shown using Paper Cassette PCPL-CP400 (sold separately).
Caution
- Loading paper upside-down, with the glossy and back sides reversed
- Bending or separating paper at the perforations before printing
- Using label paper whose upper label surface is peeling off or has been partially pulled up
- Writing on paper before printing
- Reusing paper, as by printing on blank areas
1. Check the paper size, and open both covers.
Check the size on the paper cassette (such as "Postcard" or "Card Size") to make sure it matches the size of the ink cassette.
There are two layers of covers. First open the

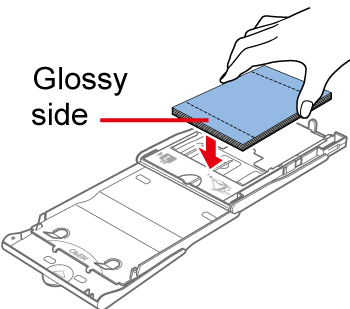

2. Load the paper in the paper cassette.
Holding the paper as shown in the above image, load it with the glossy side up. (Do not touch the glossy side of the paper, which may affect print quality.)
Caution
3. Close the inner cover.
Close the inner cover firmly until it clicks into place. Leave the outer cover open when printing.
Caution
You can use Paper Cassette PCPL-CP400 to print on L-size paper.

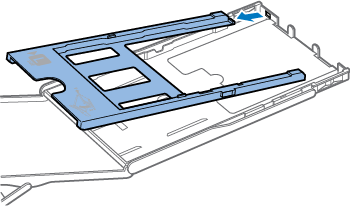

1. To print on postcard paper, remove the adapter as shown.
2. Insert the postcard-size paper. When making postcard prints with space for a stamp, load the paper with the stamp area facing as shown.
