Name of components and information displayed on the screen (PowerShot N)

Content Id: 8201823300

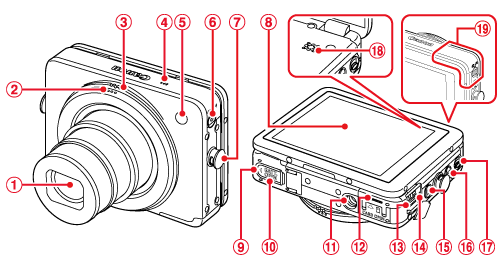

	Lens		Tripod socket
	Shutter ring		Memory card cover
	Zoom ring		DIGITAL terminal
	Microphone		USB charge lamp
	Flash/Lamp		<(Playback)> button
	Power button/lamp		< (Mobile device connect)> button
	Strap mount		Mode switch
	Screen (LCD monitor)		Speaker
	Battery cover		Wi-Fi antenna area
	DC coupler terminal cover

	Battery level		Flash mode
	White balance		Movie recording
	Drive mode		Spot AE point frame
	Touch Shutter		Grid lines
	Eco mode		(Display)
	Self-timer		Metering method
	(Function)		Shutter speed
	Still image resolution		Time zone
	Recordable shots*		Image stabilization
	Movie resolution		Aperture value
	Remaining time		Exposure compensation level
	Digital zoom magnification		ISO speed
	AF frame		Camera shake warning
	IS mode icon		Zoom bar
	Shooting mode, Scene icon		Super slow motion movie (shooting time)
	Hybrid Auto mode

* In [

] mode, indicates the number of shots available.

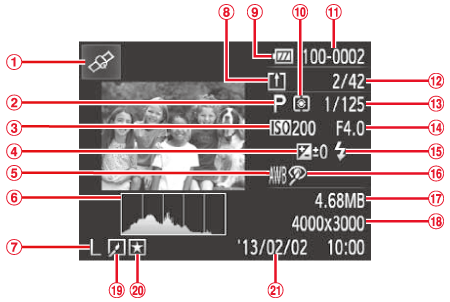

	GPS information display		Current image no. / Total no. of images
	Shooting mode		Shutter speed (still images), Image quality / Frame rate (movies)
	ISO speed, Playback speed		Aperture value
	Exposure compensation level		Flash
	White balance		Red-eye correction
	Histogram		File size
	Resolution, MOV (movies)		Still images: Resolution Movies: Playback time
	Images have been saved on a computer		Image editing
	Battery level		Favorites
	Metering method		Shooting date/time
	Folder number - File number
