Making Copies

This section describes the procedure to copy a document of A4 size on plain paper.

For the operation, see the notes and operation procedure described in the reference page.

You need to prepare:

Originals to copy.

Paper for printing.

See [ Media Types You Can Use ]

1. Prepare for copying.

(1) Make sure that the power is turned on.

(2) Press the COPY button.

The copy standby screen will appear.

(3) Load paper.

See [ Loading Paper ]

Here we make sure that A4 plain paper is loaded in the Rear Tray.

(4) Open the Paper Output Tray gently.

(5) Load an original on the Platen Glass or in the ADF.

To load the original on the Platen Glass, align it with the alignment mark WITH THE SIDE TO COPY FACING DOWN as shown below.

Then close the Document Cover gently.

Caution

Characters and lines written with a light colored pen or highlight pen may not be copied properly.

2. Start copying.

(1) Use the Numeric buttons or the Scroll Wheel to specify the number of copies.

(2) Press the right Function button (A) to select Print settings, and specify the magnification, copy intensity, the page size, media type, etc.

Here we confirm that Same size is selected for [ Magnif. ], [ 0 ] for Intensity, [ A4 ] for Page size , and [ Plain paper ] for Type.

To change the settings, use the or button (Scroll Wheel) (B) to select the item to change, and use the or button (C) to select an option. After confirming or changing the settings, press the OK button to return to the copy standby screen.

Caution

You can check the preview of print result if you press the center Function button (D) when copying the original on the Platen Glass. The preview function is not available when copying the document in the ADF.

You can select various copy functions, such as [ Borderless copy ], if you press the left Function button (E) to select [ Copy menu ].

(3) Press the Color button for color copying, or the Black button for black & white copying.

The machine starts copying.

Remove the original on the Platen Glass or the Document Output Slot after copying is completed.

Caution

Do not open the Document Cover or move the loaded original until scanning is completed. If you open the Document Cover while printing is in progress, be sure to close it gently.

Caution

If you start copying with the original loaded on the Platen Glass, you can continue copying with another original by loading it on the Platen Glass while printing is still in progress (Reserve copy).

Press the Stop button to cancel copying.

The machine can receive faxes even in the copy mode.

Setting Items

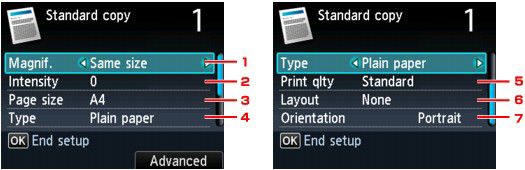

When the Copy standby screen is displayed, press the right Function button to change the copy settings such as magnification and intensity.

Use the button to change the setting item, and the button to change the setting.

Caution

Depending on the copy menu, some setting items cannot be selected. This section describes the setting items in [ Standard copy ]. The setting item which cannot be selected is displayed grayed out. For details on the setting items for [ Photo reprint ], see [ Copying a Printed Photo (Photo reprint) ].

Some settings cannot be specified in combination with the setting of other setting item or the copy menu. If the setting which cannot be specified in combination is selected, [ Error details ] is displayed on the LCD. In this case, press the left Function button to confirm the message, then change the setting.

The settings of the page size, media type, etc. are retained even if the machine is turned off.

When copying starts in the copy menu that is not available with the specified setting, [ The specified function is not available with current settings. ] is displayed on the LCD. Change the setting, following the on-screen instructions.

1. Magnif. (Magnification)

You can specify the magnification optionally or select the preset-ratio copying or fit-to-page copying.

The LCD below is displayed when you press the right Function button in the Copy standby screen. Select the reduction/enlargement method from Magnif..

Caution

Some of the reduction/enlargement methods are not available depending on the copy menu.

Fit to page

The machine automatically reduces or enlarges the image to fit the page size.

The setting in [ Magnif. ]: [ Fit to page ]

Caution

When [ Fit to page ] is selected, load the original on the Platen Glass.

When you select [ Fit to page ], the page size may not be detected correctly depending on the original. In this case, select the setting other than [ Fit to page ].

Preset ratio

You can select one of the preset ratios to reduce or enlarge copies.

Select the appropriate ratio for size of original and page size.

The setting in [ Magnif. ]:[ 70% A4-⋗A5 ]/[ 86% A4-⋗B5 ]/[ 94% A4-⋗Letter ]/[ 115% B5-⋗A4 ]/[ 141% A5-⋗A4 ]/[ 156% 5x7-⋗Letter ]/[ 183% 4x6-⋗Letter ]

Caution

Some of the preset ratios are not available depending on the country or region of purchase.

Ratio specified copy

You can specify the copy ratio as a percentage to reduce or enlarge copies.

If you select other than Fit to page and press the right Function button, [ Magnification ] screen is displayed. Use the button to specify the magnification.

Caution

[ 400% MAX ] (maximum copy ratio) and [ 25% MIN ] (minimum copy ratio) are selectable.

If you make a copy at the same size as the original, select [ Same size ].

2. Intensity

Specify the intensity. When [ Auto ] is selected, the intensity is adjusted automatically according to the originals loaded on the Platen Glass. [ Auto ] is displayed on the Copy standby screen.

Caution

When [ Auto ] is selected, load the original on the Platen Glass.

3. Page size

Select the page size of the loaded paper.

4. Type (Media type)

Select the media type of the loaded paper.

5. Print qlty (Print quality)

Adjust print quality according to the original.

Caution

If you use Fast with Type set to [ Plain paper ] and the quality is not as good as expected, select [ Standard ] or [ High ] for [ Print qlty ] and try copying again.

Select [ High ] for [ Print qlty ] to copy in grayscale. Grayscale renders tones in a range of grays instead of black or white.

6. Layout

Select the layout.

-⋗ [ Copying Two Pages to Fit onto a Single Page (2-on-1 copy) ]

-⋗ [ Copying Four Pages to Fit onto a Single Page (4-on-1 copy)]

7. Orientation

Select the orientation of the original document.

Displaying the Preview Screen

When you load the original on the Platen Glass, pressing the center Function button in the Copy standby screen allows you to preview an image of the printout on the preview screen.

Caution

The preview screen may not be available depending on the copy menu.

The original will be scanned to display the preview image. Therefore, do not open the Document Cover until the preview screen is displayed.

Originals are rescanned after displaying the preview screen and before copying starts. Therefore, do not open the Document Cover or remove the original from the Platen Glass while [ Scanning document... ] is displayed.

1. Preview of the original

The original that is set on the Platen Glass is displayed.

2. Page size

A frame showing the selected page size appears over the image. The inside of the frame will be printed.

3. Magnification

The magnification setting, which was set when the preview screen was displayed, is displayed. If the setting other than [ Fit to page ] is selected, you can change the magnification setting using the button.

Copying Two Pages to Fit onto a Single Page (2-on-1 copy)

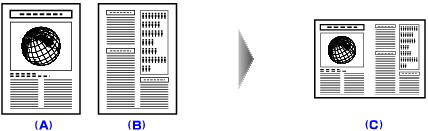

When you select [ 2-on-1 copy ] for [ Layout ] in [ Standard copy ], you can copy two original pages (A) (B) onto a single sheet of paper (C) by reducing each image.

Press the right Function button on the Copy standby screen to display the print settings screen, then select [ 2-on-1 copy ]for [ Layout ].

Press the right Function button to specify the advanced layout. You can also use this function with [ Orientation ] setting.

When [ Portrait ] is selected for [ Orientation ]

[ 2-on-1 copy layout ]:[ Left to right ]

[ 2-on-1 copy layout ]:[ Right to left ]

When [ Landscp. ] is selected for [ Orientation ]

[ 2-on-1 copy layout ]:[ Top to bottom ]

[ 2-on-1 copy layout ]:[ Bottom to top ]

Caution

If [ Device memory is full. Cannot continue process. ] appears on the LCD when scanning, set the print quality to [ Standard ] or reduce the number of sheets of documents, then try copying again. If the problem is not resolved, set the print quality to [ Fast ] and try copying again.

- When you load the original on the Platen Glass for 2-on-1 copying:

[ Placing documents (platen) ] screen appears on the LCD after scanning the first sheet of original.

Remove the first sheet of original from the Platen Glass and load the second sheet on the Platen Glass, then press the OK button.

The machine starts scanning the second sheet of original and copying.

Caution

If you do not need more scanning, press the left Function button. The machine starts copying.

You can add the copying job while printing.

Copying Four Pages to Fit onto a Single Page (4-on-1 copy)

When you select [ 4-on-1 copy ] for [ Layout ] in [ Standard copy ], you can copy four original pages onto a single sheet of paper by reducing each image. Four different layouts are available.

Press the right Function button on the Copy standby screen to display the print settings screen, then select [ 4-on-1 copy ] for [ Layout ].

Press the right Function button to specify the advanced layout.

When [ Upper-left to right ] is selected

When [ Upper-right to left ] is selected

When [ Upper-left to bottom ] is selected

When [ Upper-right to bottom ] is selected

Caution

If [ Device memory is full. Cannot continue process. ] appears on the LCD when scanning, set the print quality to [ Standard ] or reduce the number of sheets of documents, then try copying again. If the problem is not resolved, set the print quality to [ Fast ] and try copying again.

- When you load the original on the Platen Glass for 4-on-1 copying:

[ Placing documents (platen) ] screen appears on the LCD after scanning each sheet of original.

Remove the sheet of original from the Platen Glass after scanning and load the next sheet on the Platen Glass, then press the OK button.

After scanning the fourth sheet of original, the machine starts copying.

Caution

If you do not need more scanning, press the left Function button. The machine starts copying.

You can add the copying job while printing.

Using Useful Copy Functions

You can make various kinds of copies, such as making borderless copies or copying two pages onto a single sheet besides [ Standard copy ].

-⋗ [ How to Select a Copy Menu ]

-⋗ [ Copy Menu Items ]

- How to Select a Copy Menu

This section describes the procedure to select a copy menu.

1. Make sure that the machine is turned on.

2. Press the COPY button.

3. Load the original document on the Platen Glass or in the ADF.

Caution

For details on the setting items for [ Photo reprint ], see [ Copying a Printed Photo (Photo reprint) ].

4. Press the left Function button.

The copy menu screen is displayed.

5. Use the button to select the copy menu.

For details on procedure in [ Standard copy ], see [ Making Copies ].

For details on procedure in other copy menu, see [ Copy Menu Items ].

Caution

If you return to [ Standard copy ] after you select the copy menu other than [ Standard copy ] or [ Photo reprint ], press the Stop button. If the number of copies, the magnification, or the intensity has been set already, press the Stop button twice.

After the copy menu is selected, you can change the print setting by pressing the right Function button on the Copy standby screen. Depending on the copy menu, some setting items cannot be selected and some settings cannot be specified.

-⋗ [ Setting Items ]

- Copy Menu Items

Choose the copy method according to your purpose.

[ Frame erase copy ]

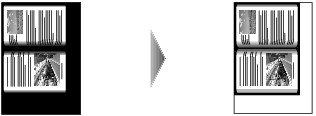

When copying thick originals such as books, you can make a copy without black margins around the image and gutter shadows.

- Copying Thick Originals Such as Books (Frame erase copy)

When copying thick originals such as books, you can make a copy without black margins around the image and gutter shadows. Using this function, you can reduce unnecessary ink consumption.

Caution

When you use this function, load the original on the Platen Glass.

1. Display the copy menu screen.

-⋗ [ Using Useful Copy Functions ]

2. Load paper.

3. Select [ Frame erase copy ], then press the OK button.

4. Use the Numeric buttons or the Scroll Wheel to specify the number of copies.

Change the print settings as necessary.

-⋗ [ Setting Items ]

5. Press the Color button for color copying, or the Black button for black & white copying.

The machine starts copying.

Caution

Close the Document Cover.

There may be a narrow black margin that appears around the image. This function removes the dark margins only. If a scanned book is too thin or when the machine is used near a window or in a bright environment, a faint black frame may remain. Also, if the color of an original is dark, the machine cannot distinguish the document color from the shadow and this may cause slight cropping or a shadow on the crease.

When the Copy standby screen is displayed, pressing the center Function button allows you to preview an image of the printout on the preview screen.

-⋗ [ Displaying the Preview Screen ]

[ Collated copy ]

You can obtain sorted printouts when making multiple copies of a multi-paged original.

- Making Multiple Copies of an Entire Document (Collated copy)

You can obtain sorted printouts when making multiple copies of a multi-paged original.

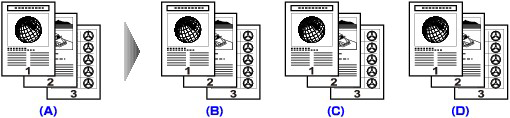

Collated copy selected.

(A) Originals

(B) Copy 1

(C) Copy 2

(D) Copy 3

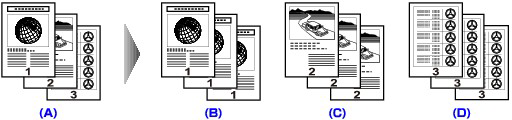

Collated copy not selected.

(A) Originals

(B) Copy 1

(C) Copy 2

(D) Copy 3

Caution

When you use this function, load the original in the ADF.

1. Display the copy menu screen.

-⋗ [ Using Useful Copy Functions ]

2. Select [ Collated copy ], then press the OK button.

3. Use the Numeric buttons or the Scroll Wheel to specify the number of copies.

Change the print settings as necessary.

-⋗ [ Setting Items ]

4. Press the Color button for color copying, or the Black button for black & white copying.

Caution

The number of pages the machine can read varies with the document. If [ Device memory is full. Cannot continue process. ] appears on the LCD when scanning, reduce the number of document pages to scan and try copying again.

[ Photo reprint ]

You can scan printed photos and print them.

- Copying a Printed Photo (Photo reprint)

You can scan printed photos and print them all at one time.

Caution

When you use this function, load the original on the Platen Glass.

1. Display the Copy menu screen.

-⋗ [ Using Useful Copy Functions ]

2. Load paper.

3. Select [ Photo reprint ], then press the OK button.

4. Follow the on-screen instructions, then press the OK button to start scanning the printed photo.

The print settings confirmation screen is displayed.

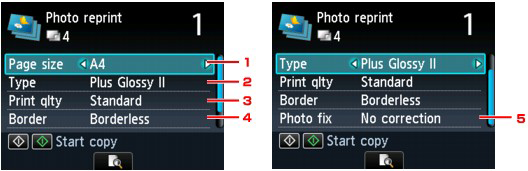

5. Specify the settings as necessary.

(1) Page size

Select the page size of the loaded paper.

(2) Type (Media type)

Select the media type of the loaded paper.

(3) Print qlty (Print quality)

Select print quality according to the original.

(4) Border (Bordered/Borderless print)

Select bordered or borderless print.

(5) Photo fix

Select whether the machine corrects the scanned image automatically.

6. Use the Numeric buttons to specify the number of copies.

Caution

By pressing the center Function button, you can preview an image of the printout on the preview screen.

If

appears on the photo, the printed photo may not be scanned properly. Rescan the printed photo.

7. Press the Color button for color printing, or the Black button for black & white printing.

The machine starts printing.

Caution

If the printed photo was not scanned properly, the confirmation screen asking you if you continue printing is displayed. By selecting [ Yes ], the machine starts printing. If you rescan the photo, select [ No ] and scan the photo again.

[ Borderless copy ]

You can copy images so that they fill the entire page without borders.

- Copying without Borders (Borderless copy)

You can copy images so that they fill the entire page without borders.

Caution

When you use this function, load the original on the Platen Glass.

1. Display the copy menu screen.

-⋗ [ Using Useful Copy Functions ]

2. Load paper.

3. Select [ Borderless copy ], then press the OK button.

4. Use the Numeric buttons or the Scroll Wheel to specify the number of copies.

Change the print settings as necessary.

-⋗ [ Setting Items ]

5. Press the Color button for color copying, or the Black button for black & white copying.

The machine starts copying.

Caution

Slight cropping may occur at the edges since the copied image is enlarged to fill the whole page. You can change the width to be cropped from the borders of the original image as needed. However, the cropped area will be larger if the extension amount is large.

For details on the paper size and the media type available for borderless copying, see [ Printing Area ].

Making Copies

Solution

Making Copies

Caution

Caution

Caution

Caution

Setting Items

Caution

Caution

Caution

Caution

Caution

Caution

Caution

Displaying the Preview Screen

Caution

Copying Two Pages to Fit onto a Single Page (2-on-1 copy)

Caution

Caution

Copying Four Pages to Fit onto a Single Page (4-on-1 copy)

Caution

Caution

Using Useful Copy Functions

Caution

Caution

Caution

Caution

Caution

Caution

Caution

Caution

Caution

Caution

Caution
