Do not connect the USB cable yet.
To use the machine by connecting it to a computer, software including the drivers needs to be copied (installed) to the computer’s hard disk. The installation process takes about 20 minutes. (The installation time varies depending on the computer environment or the number of application software to be installed.)
Caution
Windows
Caution
- For Windows 7
(1) Remove the USB cable connected to your computer.
(2) Proceed to 1.
- For Windows Vista/Windows XP
This dialog box may appear.
(1) Remove the USB cable connected to your computer.
If the dialog box closes, proceed to 1 .
(2) Click Cancel.
(3) Proceed to 1.
Caution
Easy-WebPrint EX is Web print software that is installed on the computer when installing the supplied software. Internet Explorer 7 or later (Windows) is required to use this software. An Internet connection is required for installation.
1.
Press the ON button (A) to TURN OFF THE MACHINE.
Operating noise may continue for up to 30 seconds until the machine turns off.
2.
(1) Make sure that the machine has turned off.
(2) Turn on the computer.
(3) Insert the Setup CD-ROM into the CD-ROM drive.
the setup program starts automatically.
Caution
3. Windows 7/Windows Vista
Windows XP -⋗ 4
Click Run Msetup4.exe on the AutoPlay screen, then click Yes or Continue on the User Account Control dialog box.
If the User Account Control dialog box reappears in following steps, click Yes or Continue.
4.
Select your place of residence, then click Next.
Caution
5.
Select a country or region, then click Next.
6.
Click Easy Install.
The drivers, application software, and on-screen manuals are installed.
Caution
7.
Click Install.
8.
Select Use the printer via USB, then click Next.
Follow any on-screen instructions to proceed with the software installation.
- USB Port

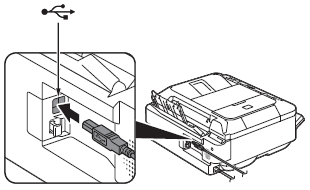

When the Printer Connection screen appears, connect the machine to the computer with a USB cable.
After connecting the cable, TURN ON THE MACHINE.
- If the serial number is not displayed on the registration screen, input the number found inside the machine.
Caution
Caution
- If the Extended Survey Program screen appears
If you can agree to Extended Survey Program, click Agree.
If you click Do not agree, the Extended Survey Program will not be installed. (This has no effect on the machine's functionality.)
9.
Click Exit to complete the installation.
10.
Solution Menu EX starts.
Remove the Setup CD-ROM and keep it in a safe place.
Caution
Caution
In Windows 7 and Windows Vista SP1 or later, the XPS Printer Driver can be installed additionally. To install, perform from 1 in [Windows]. Click Custom Install in 6, then select XPS Printer Driver in the Custom Install screen.
Macintosh
Caution
Easy-WebPrint EX is Web print software that is installed on the computer when installing the supplied software. Safari 4 or later (Mac OS X v.10.5 or later) is required to use this software. An Internet connection is required for installation.
1.
Press the ON button (A) to TURN OFF THE MACHINE.
Operating noise may continue for up to 30 seconds until the machine turns off.
2.
(1) Make sure that the machine has turned off.
(2) Turn on the computer.
(3) Insert the Setup CD-ROM into the CD-ROM drive.
3.
Double-click the Setup icon of the CD-ROM folder to proceed to the following screen. Enter your administrator name and password, then click OK.
If the CD-ROM folder does not open automatically, double-click the CD-ROM icon on the desktop.
If you do not know your administrator name or password, click the help button, then follow the on-screen instructions.
4.
Select your place of residence, then click Next.
Caution
5.
Select a country or region, then click Next.
6.
Click Easy Install.
The drivers, application software, and on-screen manuals are installed.
Caution
7.
Click Install.
8.
Select Use the printer via USB, then click Next.
Follow any on-screen instructions to proceed with the software installation.
- USB Port
When the Printer Connection screen appears, connect the machine to the computer with a USB cable.
After connecting the cable, TURN ON THE MACHINE.
- If the serial number is not displayed on the registration screen, input the number found inside the machine.
Caution
Caution
- If the Extended Survey Program screen appears
If you can agree to Extended Survey Program, click Agree.
If you click Do not agree, the Extended Survey Program will not be installed. (This has no effect on the machine's functionality.)
9.
Click Exit to complete the installation.
It is necessary to restart the computer before scanning using the Operation Panel on the machine for the first time.
10.
Solution Menu EX starts when clicking OK in the Canon Solution Menu EX dialog.
Remove the Setup CD-ROM and keep it in a safe place.
Caution
