Calibration Sheet (Color Calibration Management Console) (iPF6400S/iPF8400S)

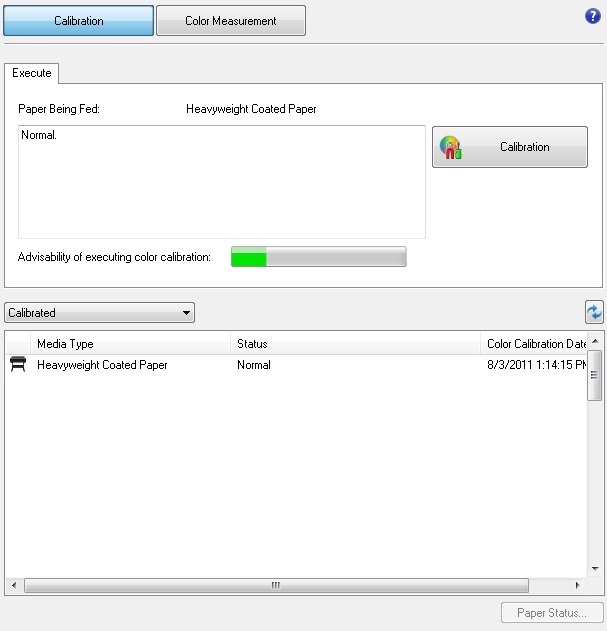

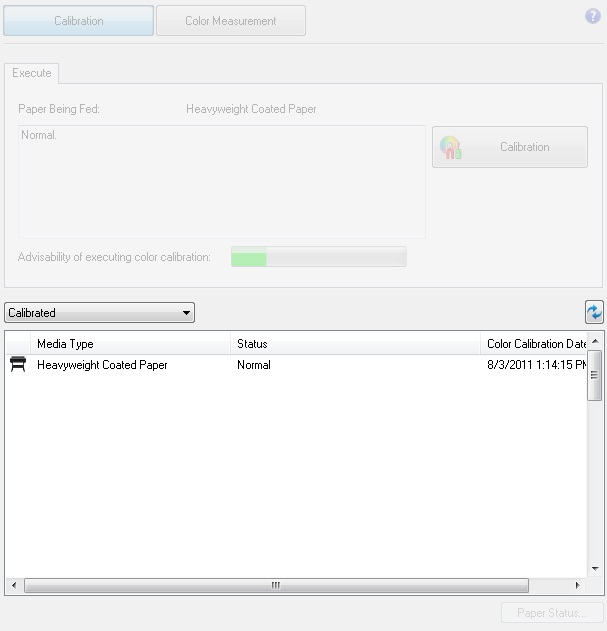

This sheet allows you to execute color calibration and check the color calibration status of the printer selected in the Printer list.

Displays the media type being fed in the printer.

Click this button to display the Execute Color Calibration dialog box.

Executes color calibration on the selected printer.

For the procedure for executing color calibration, see "Executing Color Calibration (Color Calibration Management Console) (iPF6400S/iPF8400S)"

Displays the status until it is recommended that you execute color calibration. The progress bar grows until the time when calibration is recommended.

Click this button to display the Paper Status dialog box.

This allows you to check the color calibration and color check execution logs for the selected paper.

Color calibration status for each paper

Click the button / [Update] button to refresh the list with the latest information. is displayed on the paper currently being fed in the printer.

The paper types displayed in the list are as follows.

Paper types that are registered in a printer where color calibration has been executed are displayed.

Paper types registered in a printer are displayed.

Paper types other than genuine Canon paper and feed certified paper that are registered in a printer are displayed.
