Solution

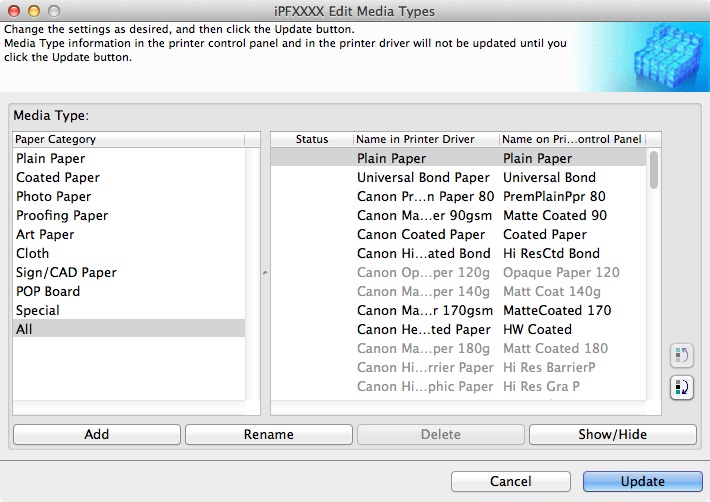

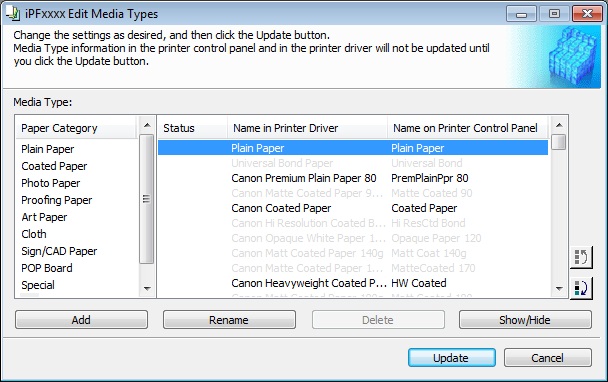

1.Open the Edit Media Types dialog box.
⋖Windows⋗
⋖Mac OS⋗
Caution
For details on the procedure for opening the Edit Media Types dialog box, see "Editing Media Type Information for Genuine Paper (Media Configuration Tool) (iPF6400S/iPF8400S)"

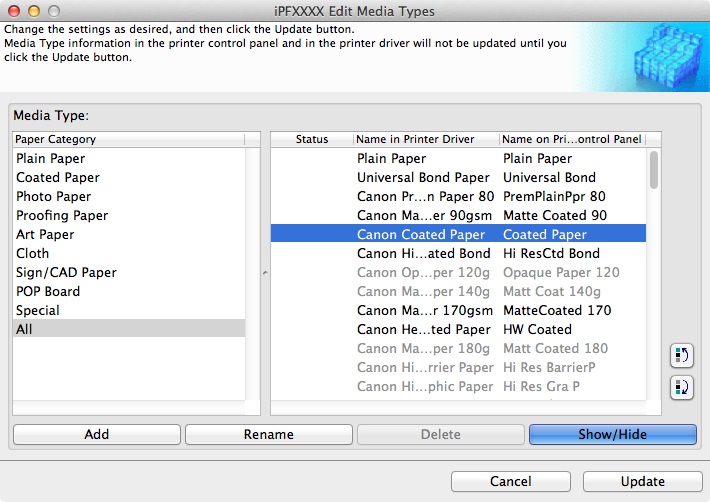

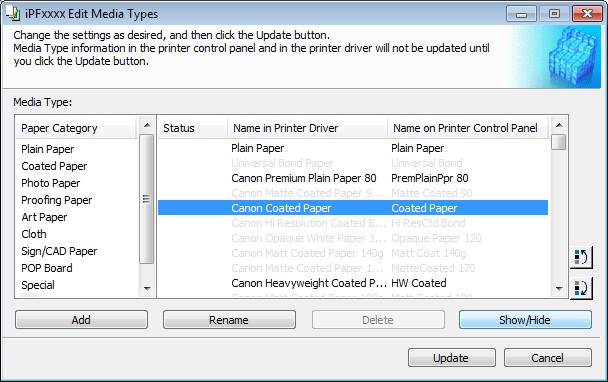

2.In the Media Type list, select the name of the media to switch off or on for display.
Click the Show/Hide button.
The selected paper is alternately shown or hidden.
⋖Windows⋗
⋖Mac OS⋗
Caution
You can select multiple paper.
The names of media switched for non-display appear grayed out in the Media Type list.
Each time you click the Show/Hide button, the display mode cycles from showing both the printer driver and printer panel, to hiding both the printer driver and printer panel, and then to showing only the printer panel.

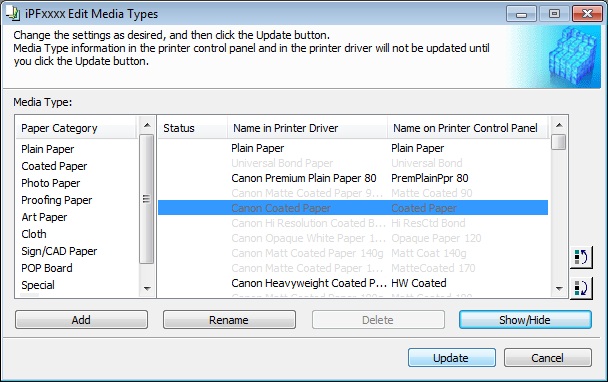

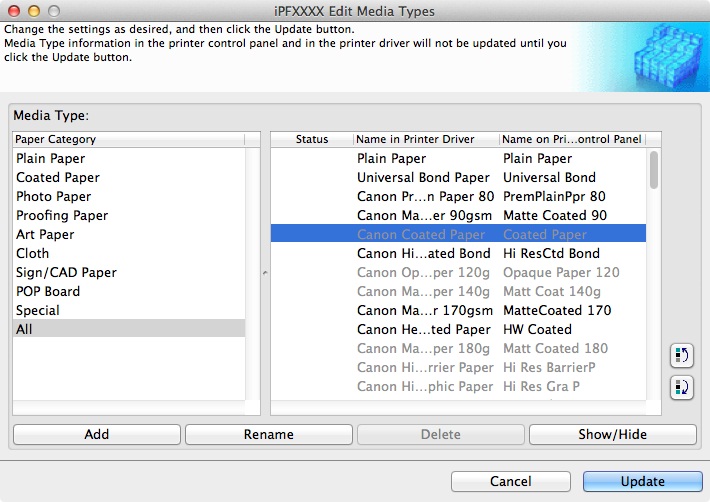

3.In the Edit Media Types dialog box, click the Update button.
⋖Windows⋗
⋖Mac OS⋗

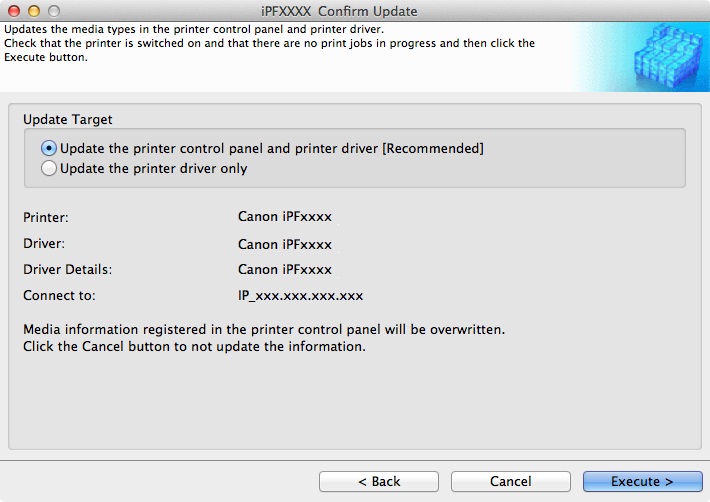

4.The Confirm Update dialog box is displayed.
Configure Update Target and click the Execute button.
Communication with the printer begins.
⋖Windows⋗
⋖Mac OS⋗
Caution
You should normally select Update the printer control panel and printer driver.
Caution
When setting a data to the printer that differs from the data to be updated, the selected media information file is updated. When you would like to remain the data that is set to the printer, click the Cancel button.
Do not attempt to print or turn the printer off while the program is communicating with the printer.

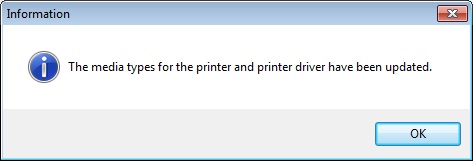

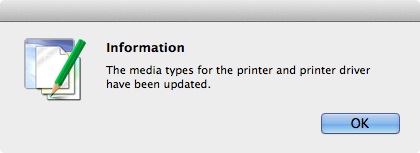

5.Click the OK button.
⋖Windows⋗
⋖Mac OS⋗
