Executing Color Calibration (Color Calibration Management Console) (iPF6400S/iPF8400S)

The procedure for executing color calibration is as follows.

Getting the Printer Ready

1.You can confirm whether the paper to be loaded can be used in color calibration.

2.Load the paper.

Caution

3.If a spectrophotometer unit is mounted, select the White/Black Backing Plate color.

We recommend white.

Caution

Executing Color Calibration

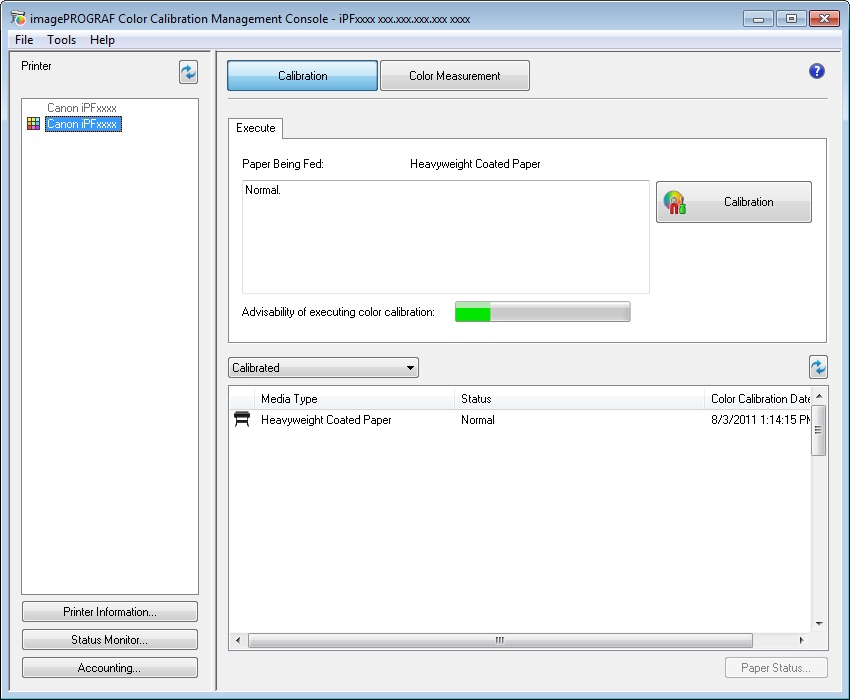

1.Open the Calibration sheet.

2.Select the printer you want to execute color calibration on from the Printer list.

3.Click the Calibration button.

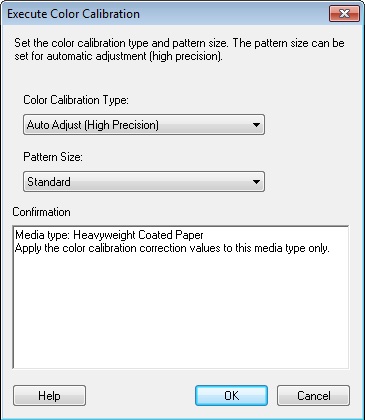

4.The Execute Color Calibration dialog box is displayed.

Select Auto Adjust (High Precision) to execute color calibration using the spectrophotometer unit, or select Auto Adjust to execute color calibration using the sensors in the printer.

Caution

You can select this setting when Auto Adjust (High Precision) is selected in Color Calibration Type.

We recommend Larger when you want to prioritize the color measurement precision.

Caution

5.Click the OK button.

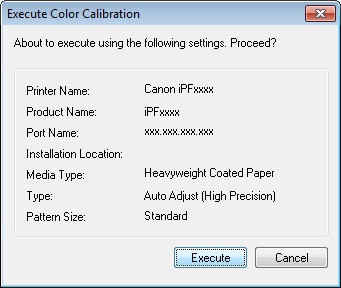

6.When the Execute Color Calibration dialog box is displayed, check the details.

7.Click the Execute button.

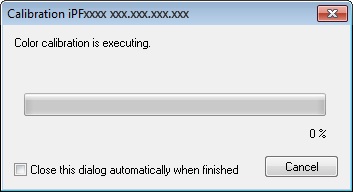

Color calibration will be executed.

Caution

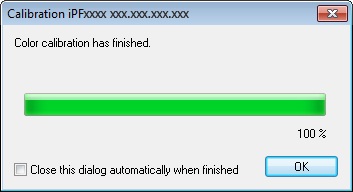

8.Click the OK button.
