Onscreen Icons and Displays (XA25 / XA20)

Content Id: 8201868700

Solution

Recording Movies
Playing Movies (during playback)
Viewing Photos

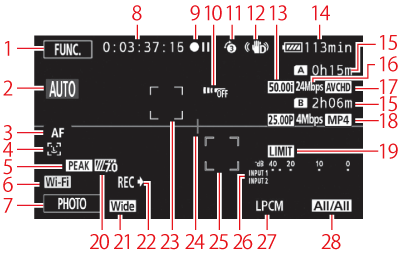

Recording Movies

	Control button [FUNC.]: Open the FUNC. panel		Remaining recording time^*3 / On the memory card / Relay recording
	Smart AUTO		Recording mode
	Autofocus mode		Movie format
	Face detection; Autofocus only for faces		Frame rate, recording mode and movie format for dual recording^*4
	Peaking		Audio peak limiter
	Wi-Fi Remote function		Zebra pattern
	Control button [PHOTO]: Take a photo		Conversion lens (Wide attachment shown)
	While recording/during playback: Time code (hours : minutes : seconds : frames)		Recording command
	Operation^*1		Face detection frame
	Remote sensor off		Level marker
	Pre-recording; Video snapshot length		Tracking frame
	Image stabilizer		Audio level indicator (INPUT terminals)
	Frame rate		Linear PCM audio
	Remaining battery time^*2		Audio channel

*1 :Record, :Record pause, :Playback, :Playback pause, :Fast playback, :Fast reverse playback, :Slow playback/Slow reverse playback, : Frame advance/Frame reverse.

*2 The icon shows a rough estimate of the remaining charge as a percentage of the full charge of the battery pack. The remaining recording/playback time of the battery pack is displayed, in minutes, next to the icon.

When the battery charge becomes low,

will appear in yellow. When the battery pack is exhausted,

will appear in red. Replace or charge the battery pack.

When you attach an empty battery pack, the power may turn off without displaying

Depending on the conditions under which the camcorder and the battery pack are used, the actual battery charge may not be indicated accurately.

When the camcorder is off, press B to display the charge status of a battery pack.

The Intelligent System will display the charge status (as a percentage) and the remaining recording time (in minutes) for 5 seconds. If the battery pack is exhausted, the battery information may not be displayed.

*3 •When there is no more free space on a memory card, [ End] (memory card A) or [ End] (memory card B) will be displayed in red and the recording will stop.

During slow & fast motion recording mode, the shooting frame rate and playback frame rate will be displayed.

*4 When dual recording is activated, information for both memory cards will be displayed.

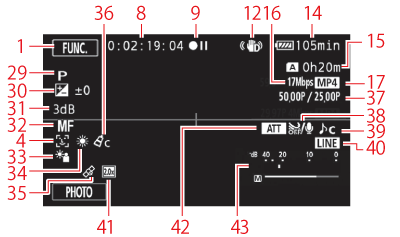

mode　

	Recording program Infrared mode Infrared light on/off		Audio scene select
	Exposure compensation		External audio input from the MIC terminal
	AGC limit; Gain (during the [Manual Exposure] recording program)		Digital tele-converter
	Manual focus		Microphone attenuator
	Backlight correction		Audio level indicator (built-in microphone/MIC terminal)
	White balance		Aperture value
	GPS		Shutter speed
	Image effects		ND filter
	Slow & fast motion recording (shooting frame rate/playback frame rate)		Control button [FILTER 1]: Cinema-look filters
	Wind screen

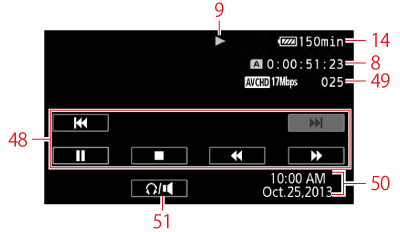

Playing Movies (during playback)

	Playback control buttons		Data code
	Scene number		Volume controls

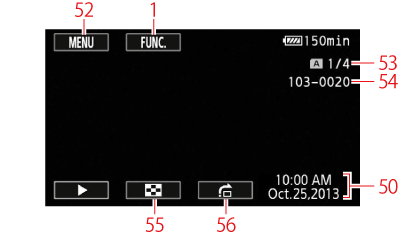

Viewing Photos

	Control button [MENU]: Open the setup menus		Control button [ ]: Return to the photo index screen
	Current photo / Total number of photos		Control button [ ]: Photo jump
	File number
