Solution
You can print on European DL and US Comm. Env. #10-sized envelopes.
The address is automatically rotated and printed according to the envelope's direction by specifying with the printer driver properly.
Caution
-Envelopes with an embossed or treated surface
-Envelopes with a double flap (or sticker flaps)
-Envelopes with pressure seals
-Envelopes whose gummed flaps are already moistened and adhesive
Caution

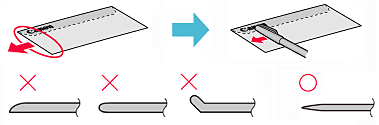

1. Prepare envelopes.
The figures above show a side view of the leading edge of the envelope.
Caution
The envelopes may jam in the machine if they are not flat or the edges are not aligned. Make sure that no curl or puff exceeds 0.1 inches / 3 mm.

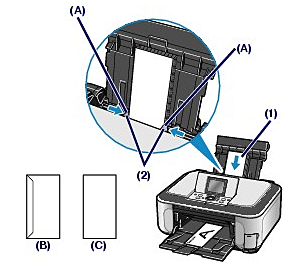

2. Load envelopes.
(B) Rear side
(C) Address side
(1) Slide the Paper Guides (A) to open them, and load the envelopes in the center of the Rear Tray WITH THE ADDRESS SIDE FACING YOU.
The folded flap of the envelope will be faced down on the left side.
Up to 10 envelopes can be loaded at once.
(2) Slide the Paper Guides (A) to align them with both sides of the envelopes.
Do not slide the Paper Guides too hard. The envelopes may not be fed properly.
3. Specify the settings in the printer driver.
(1) Select Envelope in Media Type.
(2) Select the size for envelopes.
Select DL Env. or Comm. Env. #10 in Page Size.
Select DL Envelope or #10 Envelope in Paper Size.
(3) Select Landscape in Orientation.
Caution
If you do not specify Page Size (or Paper Size) or Orientation properly, the address will be printed upside down or will be turned to 90 degrees.
Caution
