How to Attach An External Microphone (XF305/XF300)

Content Id: 8200839200

This section provides explanations about attaching an external microphone to the camcorder.

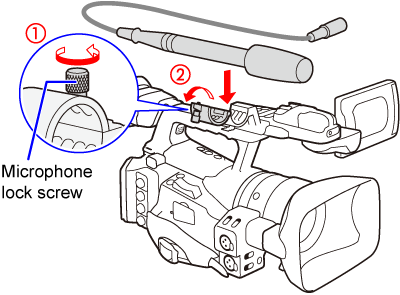

1. Loosen the microphone lock screw, open the microphone holder and insert the microphone.

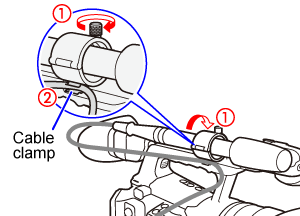

2. Tighten the lock screw and put the microphone cable through the microphone cable clamp under the microphone holder.

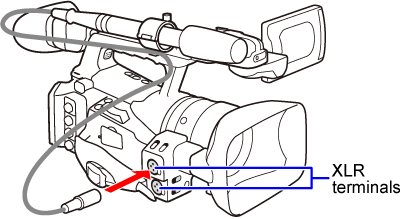

3. Plug the microphone cable into the desired XLR terminal.
