Solution
Step 1: Confirming the iOS versionStep 2: Installing Camera Connect on the smartphone and setting Wi-Fi to ON
Step 3: Connecting the camera to the smartphone
Step 4: Sending images to the smartphone
You can send images from the camera to smartphones and tablets with Wi-Fi functions.
Procedures for the two connection methods below are explained in the following sections:
A: Registering to the ⋖Mobile Device Connection⋗ button and connecting.
B: Making connections via the Wi-Fi menu.
Caution
Caution
-[ ] high, [ ] medium, [ ] low, [ ] weak
Step 1: Confirming the iOS version
Step 2: Installing Camera Connect on the smartphone and setting Wi-Fi to On.
Step 3: Connecting the camera to the smartphone
Step 4: Sending images to the smartphone.
Step 1: Confirming the iOS version
1. Check the smartphone’s specifications.
Caution
Please refer to the related information for details on the smartphones which can be connected with a camera wirelessly.
Step 2: Installing Camera Connect on the smartphone and setting Wi-Fi to ON
Download Camera Connect from the App Store and install it on the smartphone.
If Camera Connect is already installed on the smartphone, please proceed to
Step 3: Connecting the camera to the smartphone.
Caution
1. Touch the [App Store] application on your smartphone to access the App Store.
Caution
2. Tap the search icon on the bottom of the screen.
3. Enter [Camera Connect] in the search field, and then tap [Search].
4. Choose [Camera Connect] from the displayed search results, and install it on the smartphone.
After installation has been completed, tap the [Home] button to return to the Home Screen.
5. Touch [Settings].
6. Confirm the smartphone’s settings.
: Make sure that [Airplane mode] is not set.
: Touch [Wi-Fi].
: Set the [Wi-Fi] switch to [ON].
Step 3: Connecting the camera to the smartphone
A: Registering the smartphone to the ⋖⋗ button and connecting.
Caution
Press the ⋖⋗ button to connect the devices. This simplifies sending images to a smartphone.
B: Connecting via Wi-Fi.
Caution
You can connect the camera to a smartphone as you would connect it to a computer or other device. Multiple smartphones can be added.
A: Pressing the Mobile Device Connect button to connect with the smartphone, and saving images from the camera to the smartphone.
A-1. Press the camera’s [ Mobile device connect ] ( ) button.
(Hereafter referred to as the ⋖⋗ button.)
Caution
A-2. When the following screen is displayed, press the ⋖⋗⋖⋗ buttons to choose [ ], and then press the ⋖⋗ button.
A-3. The camera’s SSID is displayed on the screen.
Caution

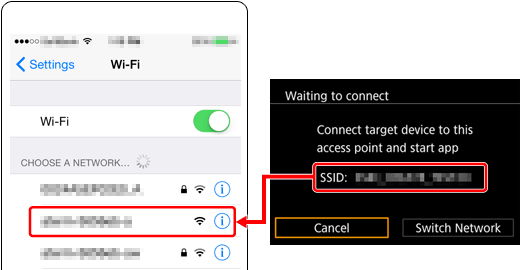

A-4. Choose the SSID (network name) displayed on the camera’s screen from the list of access points displayed on the smartphone.
Caution
For better security, you can display a password on the screen by accessing MENU and choosing [ ] tab ⋗ [Wi-Fi Settings] ⋗ [Password] ⋗ [On]. In this case, enter the password displayed on the camera in the password field on the smartphone when it is displayed.
A-5. Tap the [Canon Connect] () application icon on the smartphone to start [Camera Connect].
A-6. Press the ⋖⋗⋖⋗ buttons to choose the smartphone you want to connect with, and then press the ⋖⋗ button.
A-7. After a connection is established with the smartphone, the smartphone’s name is displayed on the camera. (This screen will close in about one minute.)
A-8. Touch [Images on camera ] in Camera Connect.
Please proceed to Step 4: Sending images to the smartphone.
Caution
Caution
If you wish to register a different smartphone to the ⋖⋗ button, clear the one currently registered first.
B : Pressing the Wi-Fi button to connect with the smartphone, and saving images from the camera to the smartphone.
B-1. Press the ⋖Playback⋗ () button to turn the camera on.
B-2. Press the ⋖ ⋗ button
Caution
B-3. When the following screen is displayed, press the ⋖⋗⋖⋗⋖⋗⋖⋗ buttons to choose [ ], and then press the ⋖⋗ button.
B-4. Press the ⋖⋗⋖⋗ buttons to choose [Add a device], and then press the ⋖⋗ button.
B-5. The camera’s SSID is displayed on the screen.
B-6. Choose the SSID (network name) displayed on the camera’s screen from the list of access points displayed on the smartphone.
Caution
For better security, you can display a password on the screen by accessing MENU and choosing [ ] tab ⋗ [Wi-Fi Settings] ⋗ [Password] ⋗ [On]. In this case, enter the password displayed on the camera in the password field on the smartphone when it is displayed.
B-7. Tap the [Canon Connect] ( ) application icon on the smartphone to start [Camera Connect].
B-8. Press the ⋖⋗⋖⋗ buttons to choose the smartphone’s nickname, and then press the ⋖⋗ button.
B-9. When connecting to a smartphone for the first time, the following screen will be displayed on the camera. In this case, press the ⋖ ⋗⋖⋗ buttons to choose [Yes], and then press the ⋖ ⋗ button.
Caution
B-10. The following screen appears.
B-11. Once you have connected to the smartphone, a screen like the one below will appear.
Caution
B-12. Touch [Images on camera ] in Camera Connect.
Step 4: Sending images to the smartphone
1. Use the smartphone to import images from the camera to the smartphone.
When the camera is connected to the smartphone, a list of the images on the camera will appear in [Camera Connect]. Tap the menu key appearing at the bottom of the screen.
2. After the screen refreshes, choose the desired images, and then touch [Save] on the bottom right of the screen. The selected images will be saved to the smartphone.
3. After the images have been saved, touch the [Home] button to return to the menu screen.

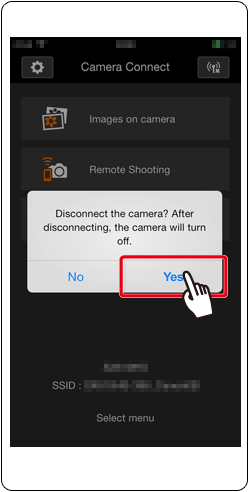

4. To end the connection, touch the [ ] icon displayed in the upper right of the screen, and then touch [Yes].
When the connection is ended, the camera will automatically turn off.
Caution
