Part Names
 | Speaker |  | Flash |
 | Zoom lever Shooting:<  (telephoto)> / < (wide angle)> Playback: <  (magnify)> / < (index)> |  | Tripod socket |
 | Lens |  | Memory card/battery cover |
 | Shutter button |  | Indicator |
 | Lamp |  | DC coupler cable port |
 | Power button |  | Strap mount |
 | Microphone |  | AV OUT (Audio/video output) / DIGITAL terminal |
| Screen (LCD monitor) | | <  (Help)> button |
| Movie button | | FUNC./SET button |
| < (Auto)> / < (Single-image
erase)> / Up button | | < (Flash)> / Right button |
| <  > / Left button | | < (Display)> / Down button |
| < (Playback)> button | | < > button |

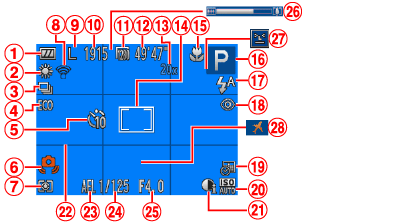

Shooting (Information Display)
| Battery level |  | Focusing range, AF lock |
| White balance |  | Shooting mode, Scene icon |
| Drive mode |  | Flash mode |
| Eco mode |  | Red-eye correction |
| Self-timer |  | Date stamp |
| Camera shake warning |  | ISO speed |
| Metering method |  | i-Contrast |
| Eye-Fi connection status |  | Grid lines |
| Resolution |  | AE lock, FE lock |
| Recordable shots |  | Shutter speed |
| Movie quality |  | Aperture value |
| Remaining time |  | Zoom bar |
| Digital zoom magnification |  | Blink detection |
| AF frame |  | Time zone |

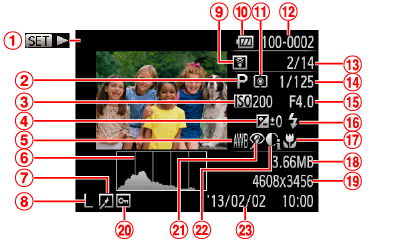

Playback (Detailed Information Display)
| Movies | | Current image no. / Total no. of images |
| Shooting mode | | Shutter speed (still images), Image quality / Frame rate (movies) |
| ISO speed, Playback speed | | Aperture value |
| Exposure compensation level | | Flash |
| White balance | | Focusing range |
| Histogram | | File size |
| Image editing | | Still images: Resolution Movies: Playback time |
| Resolution, MOV (movies) | | Protection |
| Transferred via Eye- Fi | | Red-eye correction |
| Battery level | | i-Contrast |
| Metering method | | Shooting date/time |
| Folder number - File number |
