1. Preparation2. Install the Ink Tanks
3. Align the Print Head
4. Load Paper
5. Setting Up the Wireless LAN
To perform setup, place the machine near the access point* and computer.
(* Required for wireless LAN)

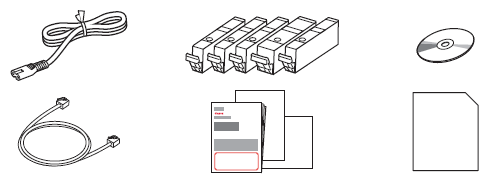

Check the included items.
Caution
Network connection:
Prepare the Ethernet cable or network devices such as a router or an access point as necessary.
USB connection:
A USB cable (not included) is required.
Remove the protective sheets and tape.
1. Preparation
Caution
1.
Open the Paper Output Tray.
2.

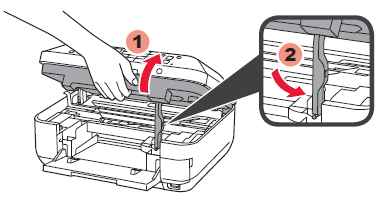

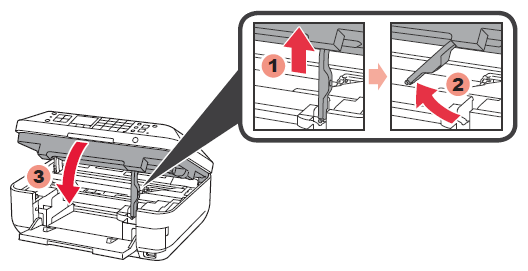

Lift the Scanning Unit / Cover, then fix it with the Scanning Unit Support.
3.

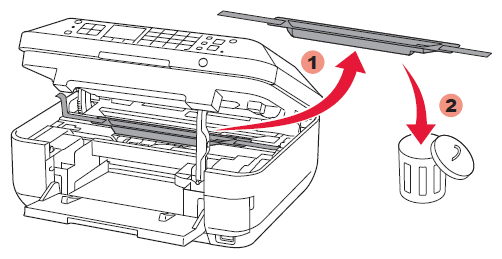

Remove the orange tape and protective material.
4.
Close the Scanning Unit / Cover.
5.

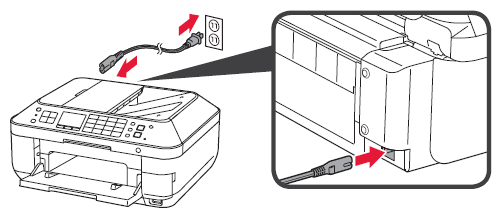

Connect the power cord.
Caution
Do not connect the USB or Ethernet cable yet.
6.

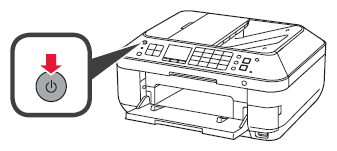

Press the ON button.
7.

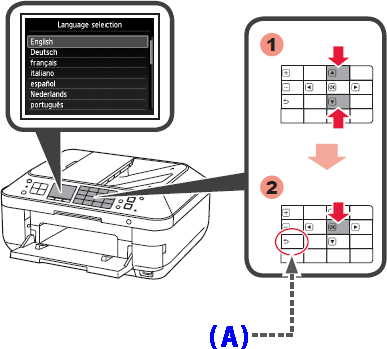

Select your language, then press the OK button.
(A) Back button
Caution
To change the language setting, press the Back button.
8.

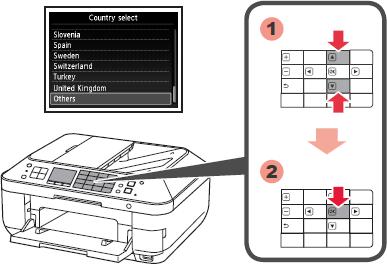

Select the country of use, then press the OK button.
Caution
Depending on the country or region of purchase, the Country select screen may not be displayed.
9.

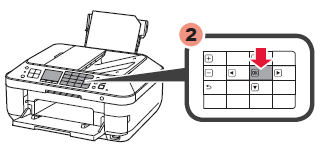

When this screen is displayed, press the OK button.
2. Install the Ink Tanks
1.
Open the Scanning Unit / Cover.

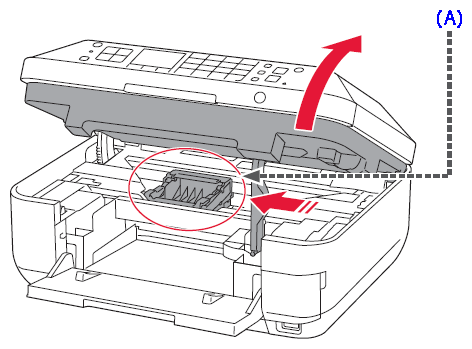

(A) This is where the ink tanks are to be installed.
2.
Remove the protective wrap.
Caution
3.

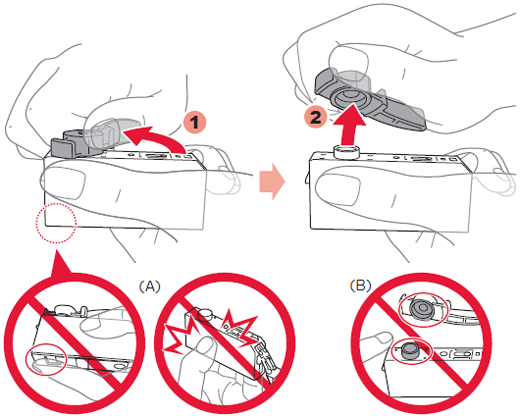

Twist and remove the orange cap.
4.
Insert and push down the ink tank into the matching color slot.
Check that the ink lamp is lit, then install the next ink tank.
5.
Check that all lamps are lit.
6.
Close the Scanning Unit / Cover.
Wait for about 3 to 4 minutes until this screen disappears, then proceed.
Caution
If an error message appears, check that the ink tank is installed correctly.
3. Align the Print Head
Perform the Print Head Alignment.
1.

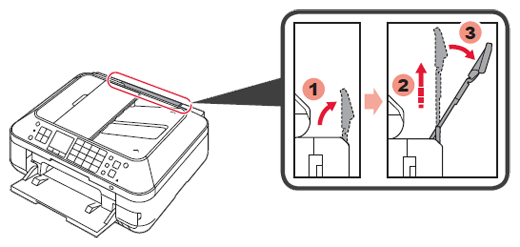

Open and extend the Paper Support, then tilt it back in place.
2.

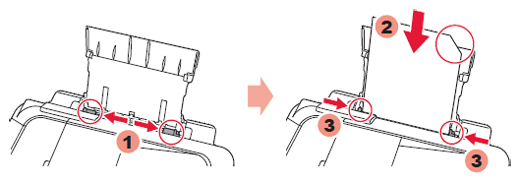

Slide the Paper Guide to both ends. Load the supplied MP-101 paper, then adjust the Paper Guide to fit the paper width.
3.
When this screen is displayed, press the OK button.
4.

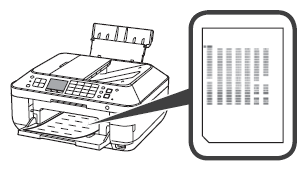

In about 5 to 6 minutes, the blueblack pattern is printed. Print Head Alignment is complete.
Caution
If an error message appears, press the OK button, then proceed to 4.
-⋗ [ An Error Message Is Displayed on the LCD ]
After installation is complete, refer to [ Aligning the Print Head ] to redo Print Head Alignment.
4. Load Paper
1.
When this screen is displayed, close the Paper Output Tray. Then, pull out the Cassette.
2.
Slide the Paper Guide to the sides, then adjust the front guide to the paper size.
3.
Place paper on the right side and adjust the left guide to fit the paper size used.
4.
Slide the Cassette back in until it clicks into place.
5.
Press the OK button.
Caution
Load photo paper in the Rear Tray only.
When using photo paper, machine settings for media type and size should be adjusted.
5. Setting Up the Wireless LAN

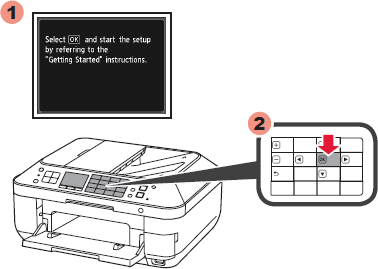

To connect to wireless LAN, select Start setup on the screen, then follow the onscreen instruction.
In the following conditions:
- If you want to use wired connection or USB connection
- If you have difficulty with the procedure
Select Cancel for now.
Caution
Even after you select "Cancel for now," you can perform the network setup following the screen on the computer.

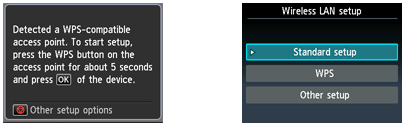

When the screen left above is displayed, go to the (1).

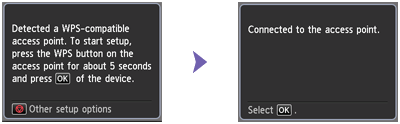

When the screen right above is displayed, go to the (4).
(1) Press and hold the WPS button on the access point (for about 5 seconds).
For details on pressing the WPS button, refer to the access point manual.

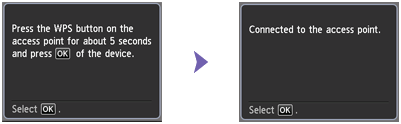

(2) Press the OK button on the printer within 2 minutes.
The (blue) Wi-Fi lamp on the printer flashes while searching for or connecting to the access point.
(3) When the left screen appears, press the OK button.
This is the end of the procedure for the wireless LAN setup using WPS.

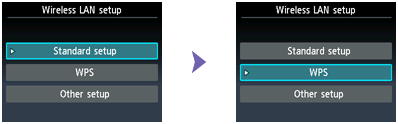

(4) Select WPS, and Press the OK button.
(5) Select Push button method, and Press the OK button.
(6) Press the OK button.
(7) Press and hold the WPS button on the access point (for about 5 seconds).
For details on pressing the WPS button, refer to the access point manual.
(8) Press the OK button on the printer within 2 minutes.
The (blue) Wi-Fi lamp on the printer flashes while searching for or connecting to the access point.
(9) When the left screen appears, press the OK button.
This is the end of the procedure for the wireless LAN setup using WPS.
(1) Select Standard setup, and Press the OK button.
(2) Select your access point, then press the OK button.
(3) One of the screens above will be displayed on the printer.
(4) Press the OK button.

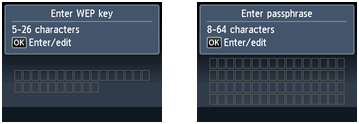

(5) Enter the network password (WEP key or passphrase) of your access point or router into the printer.
(6) Press the left Function button.
Caution
You can enter the characters when the keyboard is displayed on the printer. Follow the procedure below.

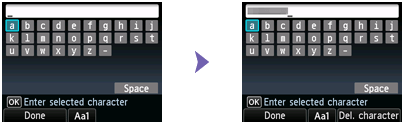

(1) When an on-screen keyboard shown above is displayed, press the center Function button (A) to switch to a keyboard that supports characters you want to use.
Three types of keyboard (upper case alphabetical, lower case alphabetical and numeric/symbolic) are available. Each press of the center Function button switches the keyboard type.
(2) Use the
Entered characters appear in the upper section (C) of the on-screen keyboard.
(3) Repeat 1 and 2 to enter more characters.
* To insert a space, select Space on the on-screen keyboard and press the OK button.
* To insert characters, select the section (C) of the screen using the
* To delete a character, select the section (C) of the screen using the
(7) Make sure that the network password is correct.
(8) Press the left Function button.

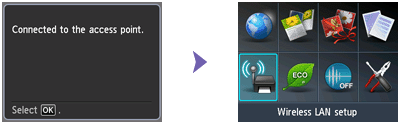

(9) When the left screen appears, press the OK button.
This is the end of the procedure for the manual wireless LAN setup.
