1. Flatten the four corners of the paper before loading it.
Caution
– When you do not print, remove unused paper from the Rear Tray, put them back into the package, and keep it on a level surface.
– Take out only the necessary number of sheets from the package, just before printing.

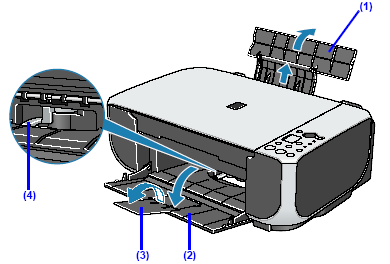

2. Prepare to load paper.
(1) Open the Paper Support, then pull out the Paper Support Extension.
(2) Open the Paper Output Tray fully.
If it is not opened fully, an error may occur.
(3) Open the Output Tray Extension.
(4) Adjust the position of the Paper Thickness Lever.
The Paper Thickness Lever switches the clearance between the Print Head and the loaded paper to match the media type.
Set it to the right when printing on envelopes or T-shirt transfers, and left when printing on any other type of paper.
Caution
If the corners or edges of the paper are smudged, try to print with the Paper Thickness Lever set to the right. It may improve print quality.
Reset the Paper Thickness Lever to the left when you finish printing.
3. Load the paper.
* Do not load higher than the Load Limit Mark (A).
(1) Load the paper in the Rear Tray with the print side facing UP.
(2) Align the paper stack against the right side of the Rear Tray.
(3) Pinch the Paper Guide and slide it against the left side of the paper stack.
Do not slide the Paper Guide too strong. Paper may not be fed properly.
4. Specify the page size and media type settings according to the loaded paper.
Caution
