Setting ISO speed (PowerShot SX170 IS)

Raise the [ISO speed] to use a fast shutter speed when you wish to reduce the effects of camera shake or avoid blurry subjects, or to turn the flash off when shooting in a dark area.

Caution

The following explanations are provided based on the assumption that the [Shooting Mode] is set to [Program AE] ().

To set the [ISO Speed], it is necessary to set the [Shooting Mode] to one of the following modes:

- [Manual] (), [Aperture Priority] ( ), [Shutter Speed Priority] ( ), [Program AE] ().

1. Press the ⋖Power⋗ button to turn the camera on.

2. Press ⋖⋗.

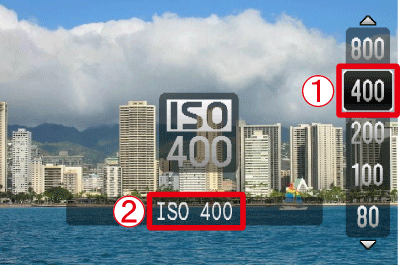

3. The following screen appears on the LCD monitor.

Press the ⋖⋗⋖ ⋗ buttons or turn ⋖⋗ dial until the desired [ISO speed]* is displayed.

The option you configured is now displayed.

* Select the appropriate [ISO Speed] for the shooting environment.

If the camera shake warning icon () appears when you press the ⋖Shutter Button⋗ halfway, it is recommended to gradually raise the ISO speed in increments such as [ISO 80], [ISO 100], etc., and then set the [ISO Speed] when the camera shake warning icon () disappears.

4. Press ⋖⋗.

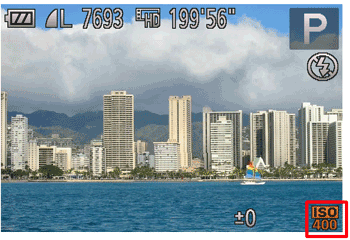

5. If the following icon is shown, the setting is complete (when the [ISO Speed] is set to 400).

Caution

To view the automatically set ISO speed when the camera is set to [ISO Auto ] (), press the shutter button halfway.

Although choosing a lower ISO speed may reduce image graininess, there may be a greater risk of subject blurriness in some shooting conditions.

Choosing a higher ISO speed will increase shutter speed, which may reduce subject blurriness and increase the flash range. However, shots may look grainy.
