PIXMA MP610 Support
FAQs & troubleshooting

Printing on DVD/CDs

Content Id: 8200131900


The CD-R Tray (supplied) allows the printing of images on DVD/CDs (printable discs). This section describes preparation for printing on DVD/CDs, and how to use the CD-R Tray.

Caution

The printing quality on DVD/CDs may vary depending on the media you use.

Items to Prepare

The following items are needed to print on DVD/CDs:

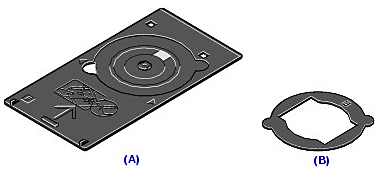

(A) CD-R Tray

"F" is on the upper side.

(B) 8 cm CD-R Adapter

Needed only when printing on 8 cm DVD/CDs.
Attached to the CD-R Tray when shipped.

Caution

You cannot print on 8 cm printable DVD/CDs in the DVD/CD print mode.

Printable DVD/CDs

Obtain a 12 cm or 8 cm DVD/CD with a label surface compatible with ink-jet printing.

A "printable disc" differs from regular DVD/CDs in that its label surface has been specially processed to be printed on by an ink-jet printer.

Cautions When Printing on DVD/CDs

Be sure to use the CD-R Tray which is supplied with this machine. It has an "F" on the upper side.
Do not print on DVD/CDs that are not compatible with ink-jet printing. The ink will not dry and may cause problems with the disc itself or devices that the disc is loaded onto.
Do not print on the DVD/CDs' recording surface. Doing so will make data recorded on DVD/CDs unreadable.
Hold DVD/CDs by their edges. Do not touch either the label surface (printing surface) or recording surface.
Remove any dirt from the CD-R Tray before placing DVD/CDs on the CD-R Tray. Loading discs in a dirty CD-R Tray may scratch the recording surface of the discs.
After printing, allow the printing surface of the disc to dry naturally. Do not use hairdryers or expose the disc to direct sunlight to dry the ink. Do not touch the printing surface until the ink has dried.
Do not attach the CD-R Tray while the machine is in operation (while the Power lamp is flashing green).
Do not remove the CD-R Tray while printing on DVD/CDs. Doing so may damage the machine, the CD-R Tray, or the disc.
Do not get dirt or scratches on the reflectors of the CD-R Tray. The machine may not be able to recognize loading of the DVD/CD, or printing may become misaligned. If the reflectors on the CD-R Tray become dirty, wipe the reflector clean with a soft, dry cloth, taking care not to scratch the plate.
The CD-R Tray may become dirty if software other than CD-LabelPrint or Easy-PhotoPrint EX is used.
Always use the supplied 8 cm CD-R Adapter when printing on 8 cm DVD/CDs.
Always close the Inner Cover after printing on DVD/CDs.

Attaching/Removing the CD-R Tray

1. Open the Paper Output Tray.

Put your finger on the top of the Paper Output Tray, then pull the Paper Output Tray open gently.

(A) Paper Output Tray

2. Open the Inner Cover.

(A) Inner Cover

3. Place the DVD/CD.

Caution

When placing the DVD/CD on the CD-R Tray, do not touch the printing surface of the disc or the reflectors (A) on the CD-R Tray.
When printing on an 8 cm DVD/CD, attach the supplied 8 cm CD-R Adapter. Otherwise, printing quality will be reduced and the DVD/CD may become damaged.

12 cm DVD/CD:

(1) Place the disc on the CD-R Tray with the printable surface facing up.

Do not touch the reflectors (A).

8 cm DVD/CD:

(1) Align the protrusions on both edges of the 8 cm CD-R Adapter with indentations on the CD-R Tray.

(2) Place the 8 cm DVD/CD on the CD-R Tray with the printing surface facing up.

4. Place the CD-R Tray.

Caution

Do not attach the CD-R Tray while the machine is in operation (while the Power lamp is flashing green).
The CD-R Tray may be ejected if the CD-R Tray has been set while the machine is warming up. If this happens, follow the on-screen instructions to set the CD-R Tray again.

(1) Place the CD-R Tray on the Inner Cover.

(2) Insert the CD-R Tray straightly (A) until the arrow () on the Inner Cover is almost aligned with the arrow () on the CD-R Tray (B).

(A) Keep the CD-R Tray level when inserting it.

(B) Align the arrow () on the CD-R Tray with the arrow () on the Inner Cover.

Caution

Do not insert the CD-R Tray beyond the arrow () on the Inner Cover.

Printing on the Label Side of DVD/CDs

This section describes how to print scanned photos or images on DVD/CDs (printable discs).

Caution

If the image does not print on the intended area, follow the steps below to adjusting.

1. Press the HOME button.

2. Select Settings and then press the OK button.

3. Select Device settings and then press the OK button.

4. Select Print settings and then press the OK button.

5. Select DVD/CD print area adjust and then press the OK button.

6. Use the or button to select Right/left or Top/bottom and use the or button to change the print area.

7. Press the OK button.

We recommend that you test print on an unneeded printable DVD/CD first.

Printing from DVD/CD label

Copy the label of an existing DVD/CD and print it on a printable DVD/CD.

Caution

You cannot print on 8 cm DVD/CDs.

1. Prepare for copying.

(1) Turn on the machine.

(2) Select DVD/CD label print on the HOME screen, then press the OK button.

2. Select the print menu.

(1) Select From DVD/CD label, then press the OK button.

The print area setting screen is displayed.

3. Specify the print area.

(1) Use the or button to select Outer circle or Inner circle and use the or button to change the print area.

Caution

Measure the outer and inner diameters of the printing surface of the printable DVD/CD and make sure you set a value smaller than the measured value for the outer diameter, and a value larger than the measured value for the inner diameter.
For information on printable discs, contact their manufacturers.

4. Specify the type of your printable DVD/CD.

Caution

If your medium is the recommended DVD or CD, specify Recommended DVD/CD for the suitable density printing.

If not, specify Other DVD/CD.

5. Load the copy source DVD/CD on the Platen Glass.

Caution

Be sure to load the copy source DVD/CD with its label side down on the center of the Platen Glass. If you load it near the edge of the Platen Glass, part of the image may be cut off.

6. Check the print settings.

(1) Press the Color button for color printing or the Black button for black & white printing.

7. Set the printable DVD/CD.

Press the left Function button to see how to set the printable DVD/CD.

Caution

To cancel copying, press the Stop/Reset button.
After printing, allow the printing surface to dry naturally. Avoid using hairdryers or direct sunlight to dry the ink. Also, do not touch the printing surface until the ink has dried.

Printing from photo data

Print an image on a memory card onto a printable DVD/CD.

Caution

You cannot print on 8 cm DVD/CDs.

1. Prepare for copying.

(1) Turn on the machine.

(2) Select DVD/CD label print on the HOME screen, then press the OK button.

2. Select the print menu.

(1) Select From photo data, then press the OK button.

(2) Insert the memory card into the Card Slot.

The print area setting screen is displayed.

3. Specify the print area.

(1) Use the or button to select Outer circle or Inner circle and use the or button to change the print area.

Caution

Measure the outer and inner diameters of the printing surface of the printable DVD/CD and make sure you set a value smaller than the measured value for the outer diameter, and a value larger than the measured value for the inner diameter.
For information on printable discs, contact their manufacturers.

4. Specify the type of your printable DVD/CD.

Caution

If your medium is the recommended DVD or CD, specify Recommended DVD/CD for the suitable density printing.

If not, specify Other DVD/CD.

5. Select the photo to print.

(1) Use the Easy-Scroll Wheel or the or button to display a photo to print, then press the OK button.

(2) Confirm the print image on the DVD/CD, then press the OK button.

Caution

Other options

For details, refer to the User's Guide on-screen manual.

Searching for photos with the shooting date (Search).
Printing a specified area (Trimming).

6. Check the print settings.

(1) Press the Color button for color printing.

7. Set the printable DVD/CD.

Press the left Function button to see how to set the printable DVD/CD.

Caution

Pressing the Black button will not start printing.
To cancel printing, press the Stop/Reset button.
After printing, allow the printing surface to dry naturally. Avoid using hairdryers or direct sunlight to dry the ink. Also, do not touch the printing surface until the ink has dried.

Printing from printed photo

Print an image on a printed photo onto a printable DVD/CD.

Caution

You cannot print on 8 cm DVD/CDs.

1. Prepare for copying.

(1) Turn on the machine.

(2) Select DVD/CD label print on the HOME screen, then press the OK button.

2. Select the print menu.

(1) Select From printed photo, then press the OK button.

The print area setting screen is displayed.

3. Specify the print area.

(1) Use the or button to select Outer circle or Inner circle and use the or button to change the print area.

Caution

Measure the outer and inner diameters of the printing surface of the printable DVD/CD and make sure you set a value smaller than the measured value for the outer diameter, and a value larger than the measured value for the inner diameter.
For information on printable discs, contact their manufacturers.

4. Specify the type of your printable DVD/CD.

Caution

If your medium is the recommended DVD or CD, specify Recommended DVD/CD for the suitable density printing.

If not, specify Other DVD/CD.

5. Load the photos on the Platen Glass.

Press the OK button to scan the photos.

6. Select the photo to print.

(1) Use the Easy-Scroll Wheel or the or button to display a photo to print, then press the OK button.

(2) Confirm the print image on the DVD/CD, then press the OK button.

Caution

Other options

For details, refer to the User's Guide on-screen manual.

Printing a specified area (Trimming).

7. Check the print settings.

(1) Press the Color button for color printing or the Black button for black & white printing.

8. Set the printable DVD/CD.

Press the left Function button to see how to set the printable DVD/CD.

Caution

To cancel printing, press the Stop/Reset button.
After printing, allow the printing surface to dry naturally. Avoid using hairdryers or direct sunlight to dry the ink. Also, do not touch the printing surface until the ink has dried.

Printing from film

Print an image on a film (35 mm negative/positive (strip/slide)) onto a printable DVD/CD.

Caution

You cannot print on 8 cm DVD/CDs.

Caution

This function is not available on MP610 series.

1. Prepare for copying.

(1) Turn on the machine.

(2) Select DVD/CD label print on the HOME screen, then press the OK button.

2. Select the print menu.

(1) Select From film, then press the OK button.

The print area setting screen is displayed.

3. Specify the print area.

(1) Use the or button to select Outer circle or Inner circle and use the or button to change the print area.

Caution

Measure the outer and inner diameters of the printing surface of the printable DVD/CD and make sure you set a value smaller than the measured value for the outer diameter, and a value larger than the measured value for the inner diameter.
For information on printable discs, contact their manufacturers.

4. Specify the type of your printable DVD/CD.

Caution

If your medium is the recommended DVD or CD, specify Recommended DVD/CD for the suitable density printing.

If not, specify Other DVD/CD.

5. Select the type of film.

Caution

You can select Color negative film, B&W negative film, Color positive film, or Mount (for slides).

6. Load the film on the Platen Glass.

See "Scanning a Film" in "Photo Printing from Printed Photo or Film" of the User's Guide on-screen manual.

Press the Color button to scan the film.

7. Select the photo to print.

(1) Use the Easy-Scroll Wheel or the or button to display a photo to print, then press the OK button.

(2) Confirm the print image on the DVD/CD, then press the OK button.

Caution

Other options

For details, refer to the User's Guide on-screen manual.

Printing a specified area (Trimming).

8. Check the print settings.

(1) Press the Color button for color printing or the Black button for black & white printing.

9. Set the printable DVD/CD.

Press the left Function button to see how to set the printable DVD/CD.

Caution

Pressing the Color button will not start printing only when scanning the B&W negative film.
To cancel printing, press the Stop/Reset button.
After printing, allow the printing surface to dry naturally. Avoid using hairdryers or direct sunlight to dry the ink. Also, do not touch the printing surface until the ink has dried.

Printing with CD-LabelPrint from the computer
CD-LabelPrint is bundled application software that allows you to edit and modify data before printing. Install it on your computer to use it. For information on how to install this software, refer to your setup sheet.
For details on how to print with CD-LabelPrint, refer to its manual.

Click Start ⋗ All Programs (or Programs) ⋗ CD-LabelPrint ⋗ Help.

In the location where the MP Drivers were installed, open Application folder ⋗ CD-LabelPrint folder ⋗ Manual folder ⋗ double-click Manual.
