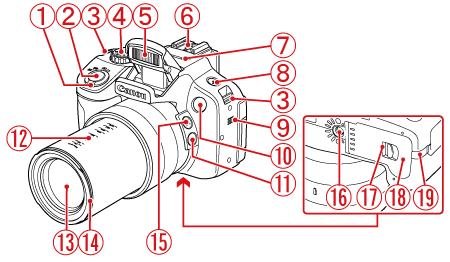

Front Panel
 | Zoom Lever Shooting:  (Telephoto) /  (Wide Angle)Playback:  (Magnify) /  (Index) |  |  (Framing Assist - Lock) button |
 | Shutter button |  | Focal length markings (approx.) |
 | Strap mount |  | Lens |
 | Mode dial |  | Lens hood / filter adapter mount |
 | Flash |  |  (Framing Assist - Seek) button |
 | Hot shoe |  | Tripod socket |
 | Microphone |  | Lock release switch |
 |  (Flash) button |  | Memory card / battery cover |
 | Speaker |  | DC coupler cable port |
 | Lamp |

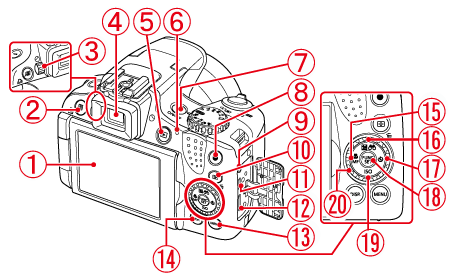

Back Panel
| Screen (LCD monitor) | | AV OUT (Audio/video output) / DIGITAL terminal |
|  (Shortcut) /  (Direct print) button | | HDMITM terminal |
| Diopter adjustment dial | |  button |
| Viewfinder | |  (Display) button |
|  (Playback) button | |  (Macro) /  (Manual focus) /  button |
| Indicator | |  (Exposure compensation) /  (Filter image display) /  button |
| Power button | |  (Self-timer) /  button |
| Movie button | |  FUNC./SET button |
| Remote terminal | |  /  button |
|  (AF Frame Selector) /  (Single image erase) button |  | Control dial |

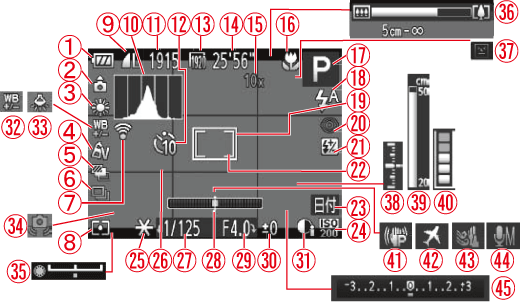

Shooting (Information Display)
| Battery level |  | ISO speed |
| Camera orientation* |  | AE lock , FE lock |
| White balance |  | Grid lines |
| My Colors |  | Shutter speed |
| AEB shooting / Focus bracketing |  | Electronic level |
| Drive mode |  | Aperture value |
| Eye-Fi connection status |  | Exposure compensation level |
| Metering method |  | i-Contrast |
| Still image compression , Resolution |  | White balance correction |
| Histogram |  | Mercury lamp correction |
| Recordable shots |  | Camera shake warning |
| Self-timer |  | Exposure shift bar |
| Movie quality |  | Zoom bar |
| Remaining time |  | Blink detection |
| Digital zoom magnification , Digital tele-converter |  | Exposure level |
| Focusing range , AF lock , IS mode icon |  | MF indicator |
| Shooting mode , Scene icon |  | Buffer warning |
| Flash mode , LED light |  | Image stabilization |
| AF frame |  | Time zone |
| Red-eye correction |  | Wind filter |
 | Flash exposure compensation / Flash output level |  | Microphone level |
 | Spot AE point frame |  | Exposure compensation bar |
 | Date stamp |
*
The camera detects the shooting orientation and adjusts settings for optimal shots.
Orientation is also detected during playback, and in either orientation, the camera automatically rotates images as needed.
However, the orientation may not be detected correctly when the camera is pointed straight up or down.

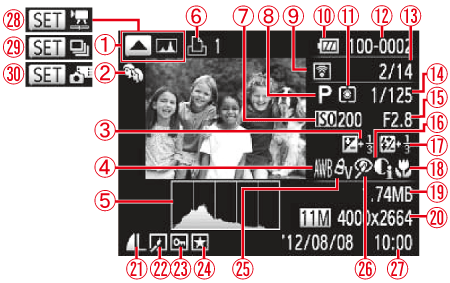

Playback (Detailed Information Display)
| Switch display (RGB histogram) | | i-Contrast |
| My Category | | Flash exposure compensation , Flash output level |
| Exposure compensation level , Exposure shift level | | Focusing range |
| White balance , White balance correction , Mercury lamp correction | | File size |
| Histogram | | Still images: Resolution Movies: Playback time |
| Print list | | Compression (image quality) / Resolution , RAW , MOV(movies) |
| ISO speed , Playback speed | | Grouped image , Image editing |
| Shooting mode | | Protection |
| Transferred via Eye-Fi | | Favorites |
| Battery level | | My Colors |
| Metering method | | Red-eye correction |
| Folder number - File number | | Shooting date / time |
| Current image no. / Total no. of images | | Movies |
| Shutter speed (still images) , Image quality / Frame rate (movies) | | Group playback |
| Aperture value | | Play Clip |
