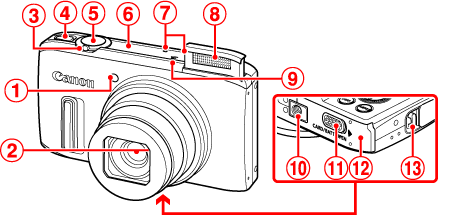

Front Panel
 | Lamp |  | Flash |
 | Lens |  | Speaker |
 | Zoom lever Shooting:  (telephoto) /  (wide angle)Playback:  (magnify) /  (index) |  | Tripod socket |
 | Power button |  | DC coupler terminal cover |
 | Shutter button |  | Memory card/battery cover |
 |  GPS antenna |  | Strap mount |
 | Microphone | ||

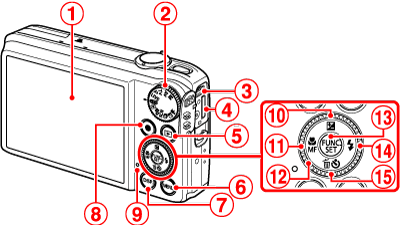

Back Panel
| Screen (LCD monitor) | | Indicator |
| Mode dial | |  (Exposure compensation) / Up button |
| AV OUT (Audio/video output) / DIGITAL terminal | |  (Macro) /  (Manual focus) / Left button |
| HDMITM terminal | | Control dial |
|  (Playback) button | | FUNC./SET button |
|  button |  |  (Flash) / Right button |
|  (Display) button |  |  (Self-timer) /  (Single image erase) / Down button |
| Movie button | ||

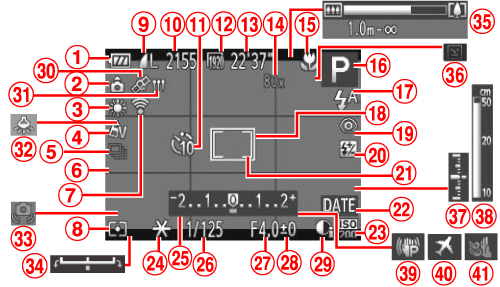

Shooting (Information Display)
| Battery level |  | Date stamp |
| Camera orientation* |  | ISO speed |
| White balance |  | AE lock, FE lock |
| My Colors |  | Exposure compensation bar |
| Drive mode |  | Shutter speed |
| Grid lines |  | Aperture value |
| Eye-Fi connection status |  | Exposure compensation level |
| Metering method |  | i-Contrast |
| Still image compression, Resolution |  | GPS reception status |
| Recordable shots |  | Logger function |
| Self-timer |  | Mercury lamp correction |
| Movie resolution |  | Camera shake warning |
| Remaining time |  | Exposure shift bar |
| Digital zoom magnification, Digital tele-converter |  | Zoom bar |
| Focusing range |  | Blink detection |
 | Shooting mode, Scene icon |  | Exposure level |
 | Flash mode |  | MF indicator |
 | AF frame |  | Image stabilization |
 | Red-eye correction |  | Time zone |
 | Flash exposure compensation / Flash output level |  | Wind filter |
 | Spot AE point frame | ||
*
The camera detects the shooting orientation and adjusts settings for optimal shots.
Orientation is also detected during playback, and in either orientation, the camera automatically rotates images as needed.
However, the orientation may not be detected correctly when the camera is pointed straight up or down.

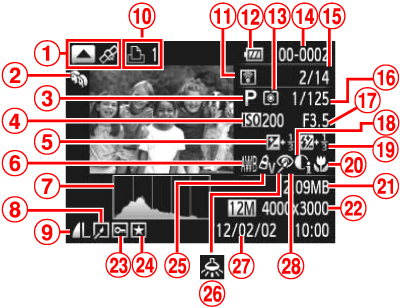

Playback (Detailed Information Display)
| Movies / High-speed burst HQ Switch display / GPS information | | Current image no. / Total no. of images |
| My Category | | Shutter speed (still images), Image quality / Frame rate (movies) |
| Shooting mode | | Aperture value |
| ISO speed, Playback speed | | i-Contrast |
| Exposure compensation level, Exposure shift level | | Flash, Flash exposure compensation |
| White balance | | Focusing range |
| Histogram | | File size |
| Group playback, Image editing | | Still images: Resolution Movies: Movie length |
| Compression (image quality)/ Resolution, MOV (movies) | | Protection |
| Print order | | Favorite |
| Transferred via Eye-Fi | | My Colors |
| Battery level | | Mercury lamp correction |
| Metering method | | Shooting date/time |
| Folder number - File number | | Red-eye correction |
