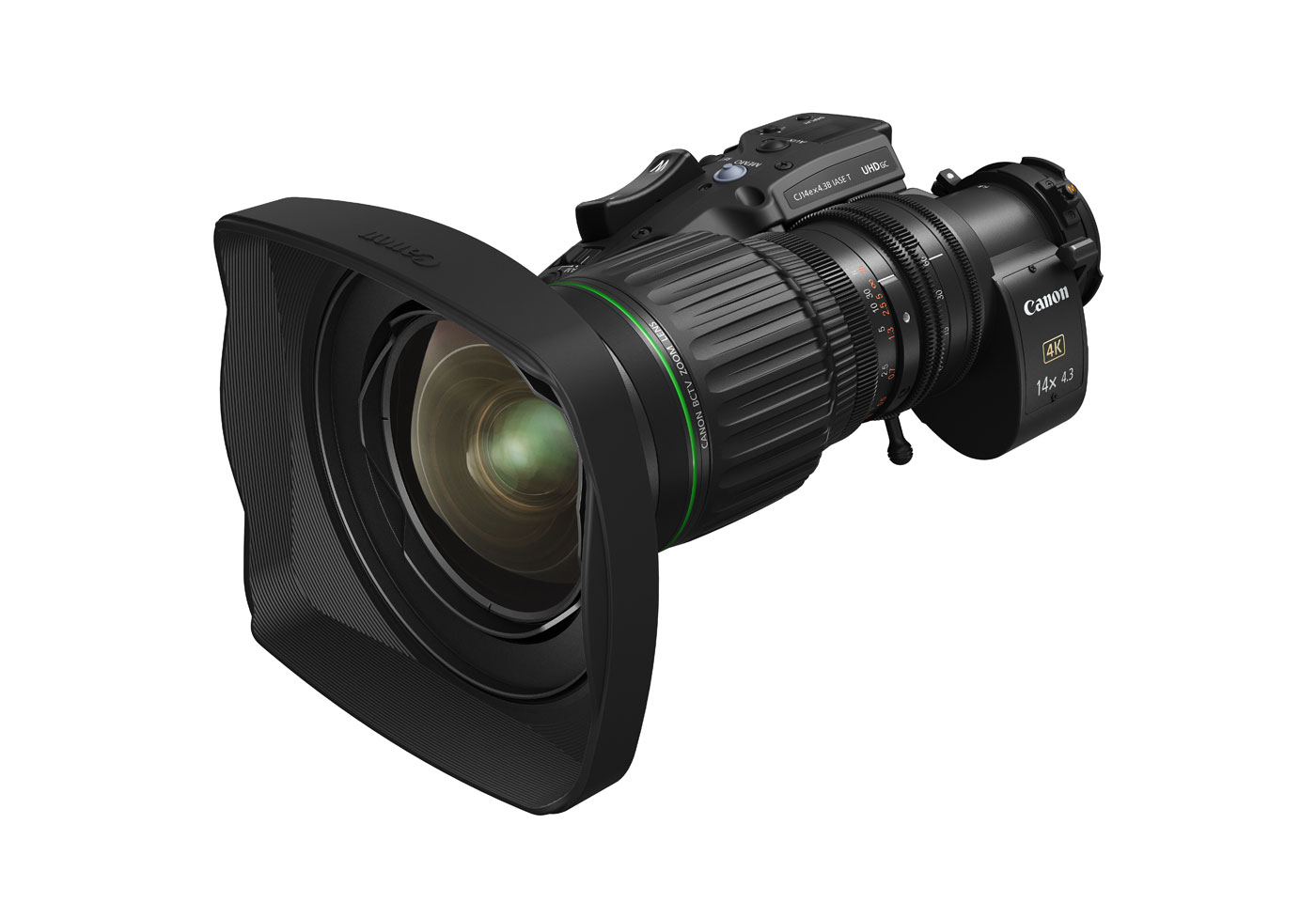

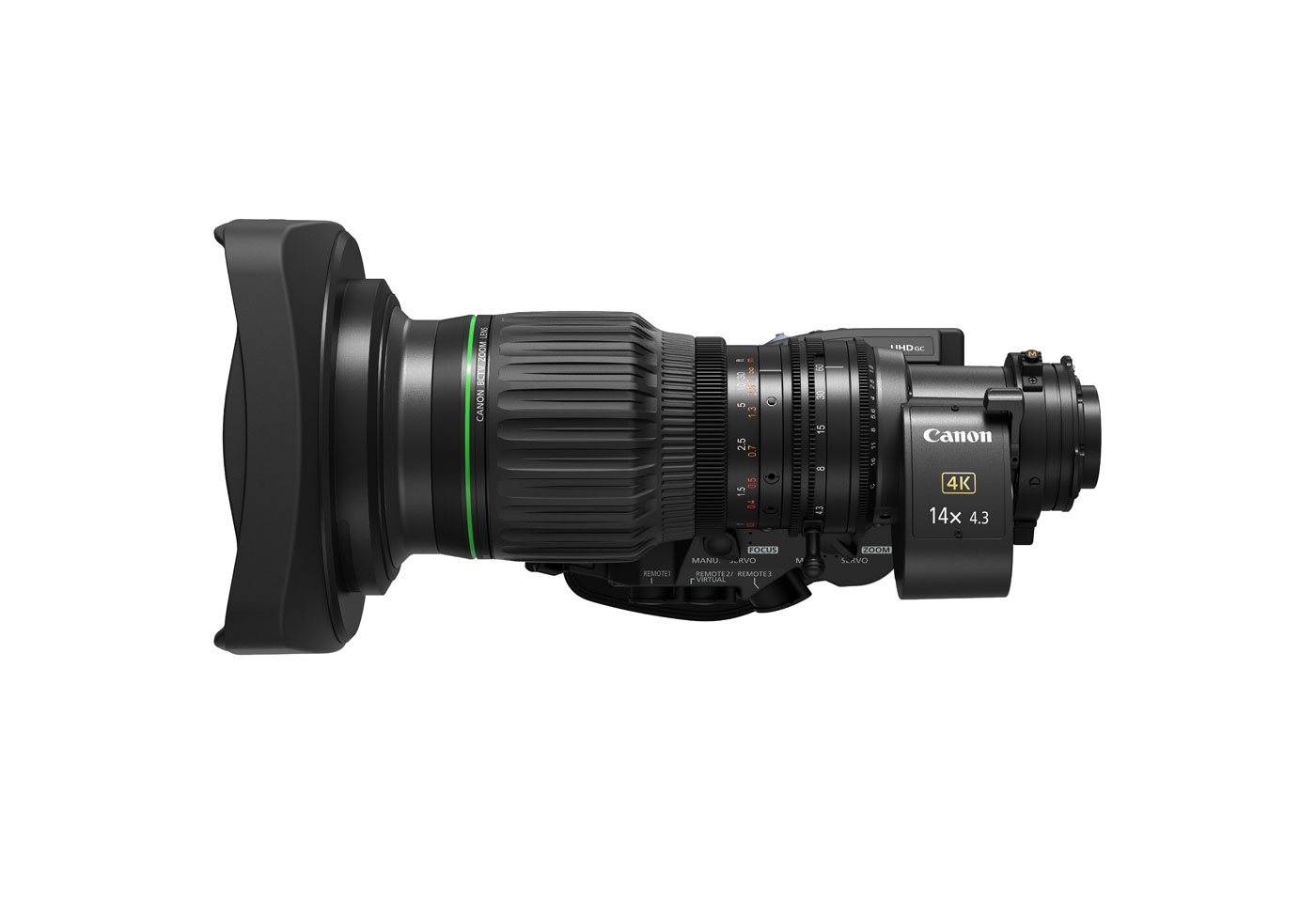

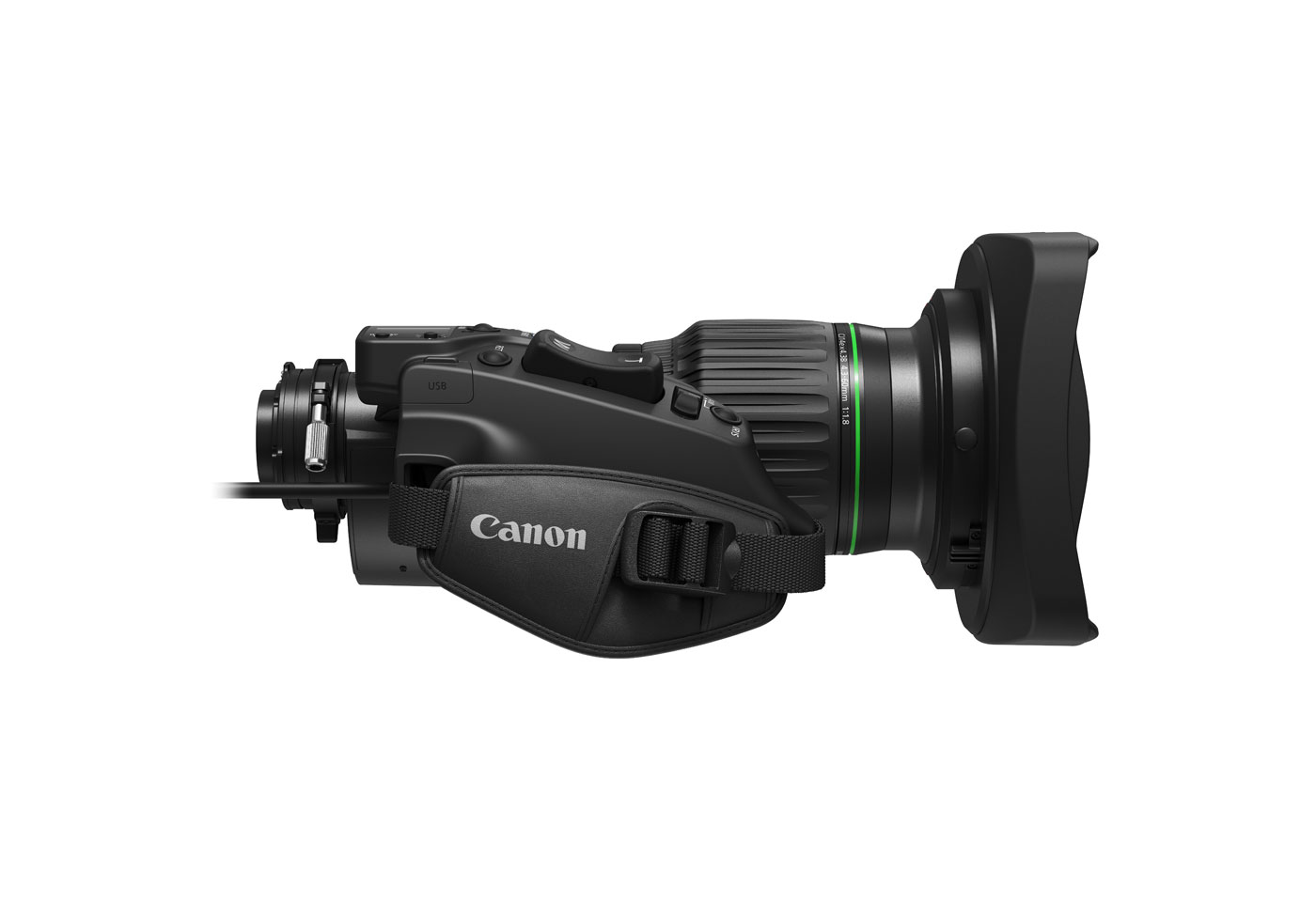

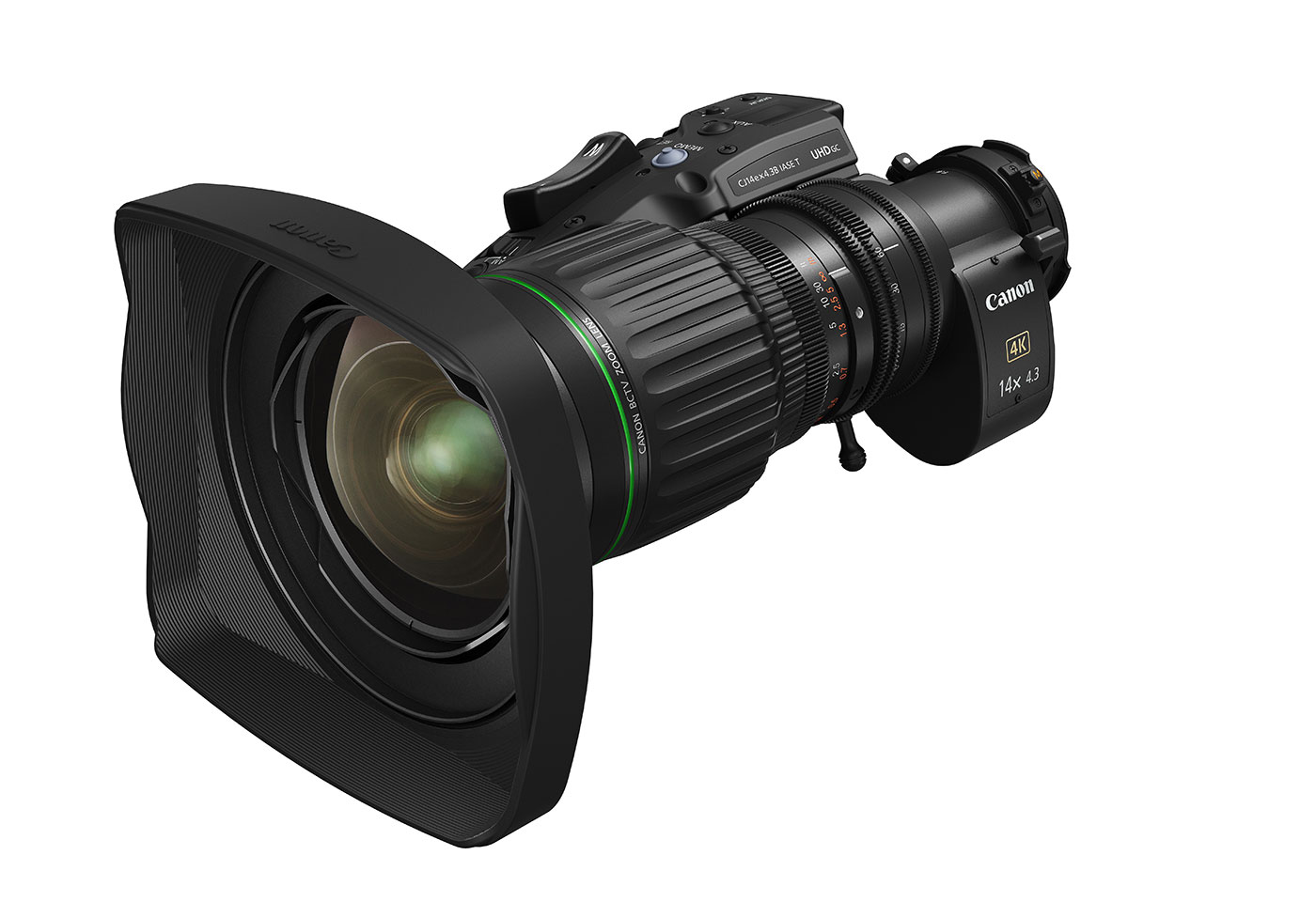

CJ14eX4.3B IASE S Broadcast Lens

Portable 4K UHD broadcast wide-angle zoom lens
alt-text
alt-text
alt-text
Talk to an expert
Portable 4K UHD broadcast wide-angle zoom lens

4K Optical Performance and HD Imaging Quality

This lens enhances current HDTV optical imaging performance while potentially future-proofing for anticipated 4K production needs. 4K resolution is maintained over this total focal range and across the 16:9 image plane with design strategies extending the optical dynamic range to meet contemporary HDR imaging requirements.

  • 4.3mm Wide Angle with 14x zoom

    The 14x zoom ratio supports a focal length range of 4.3 - 60mm (and 8.6 - 120mm with the built-in 2x extender) which is ideal for shooting documentary and many other genres of television field production.

  • Compact and lightweight

    Despite its impressive 4.3 - 60mm focal range, the lens weighs in at only 2.11kg. The portable CJ14ex4.3B 4K UHD lens is similar in size to Canon's other 2/3" HD lenses, while delivering 4K UHD performance and offering mobility.

Specifications and brochure

Focal Length
4.3-60mm, 8.6-120mm
Maximum Aperture (f)
1:1.8 (4.3 -40mm) 1:2.7 (60mm), 1:3.6 (8.6 - 80mm) 1:5.4 (120mm)
Dimensions (mm – retracted)
163.5 x 108 x 247.8 mm
Weight (g)
2.11kg
Extender
1.0x, 2.0x
Zoom Ratio
14x
Angular Field of View
96.3° x 64.2° (4.3mm) 9.1° x 5.2° (60mm), 58.3° x 34.9° (8.6mm) 4.6° x 2.6° (120mm)
M.O.D.
2.8m (10mm with Macro)
Shooting Range at M.O.D.
76.4 x 43.0 cm (4.3mm) 5.2 x 2.9 cm (60mm), 38.2 x 21.5 cm (8.6mm) 2.6 x 1.5cm (120 mm)
