CJ24eX7.5B IASE S

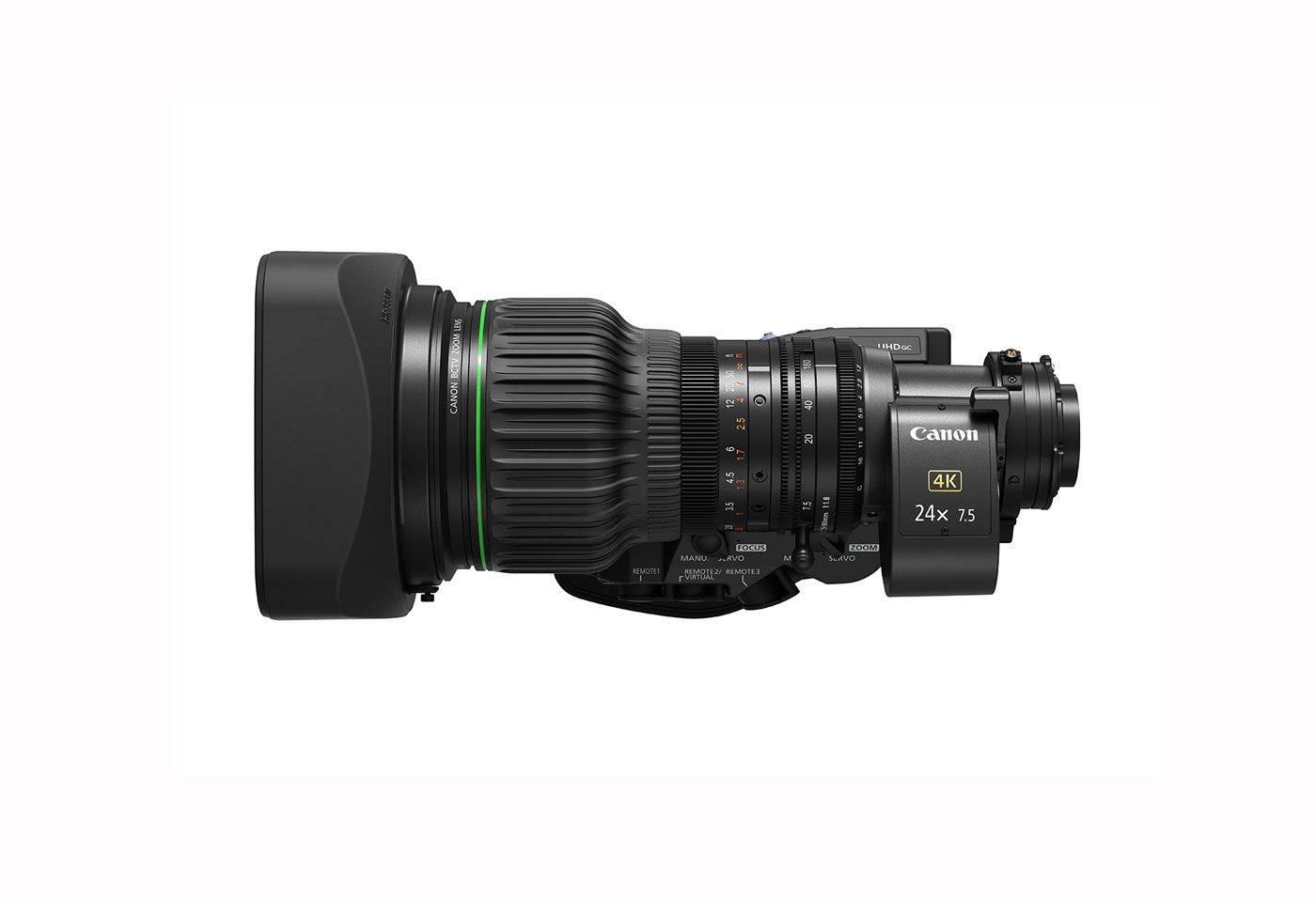

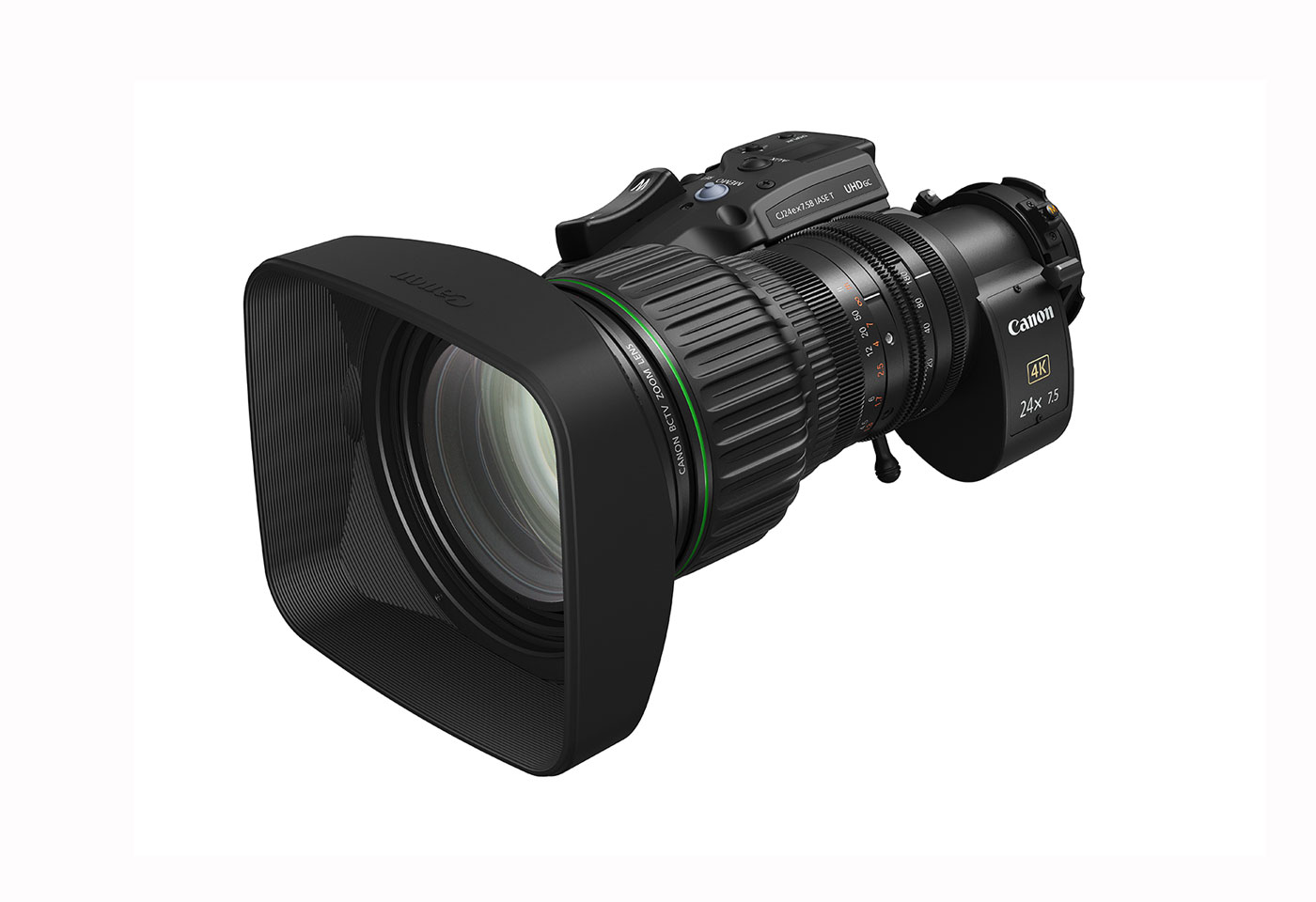

CJ24eX7.5B IASE S Broadcast Lens

Portable 4K UHD broadcast zoom lens

Outstanding optical performance

The CJ24eX7.5B IASE S is a 4K UHD telephoto zoom lens with a 24x zoom. It offers superb optical performance and versatile digital functions.

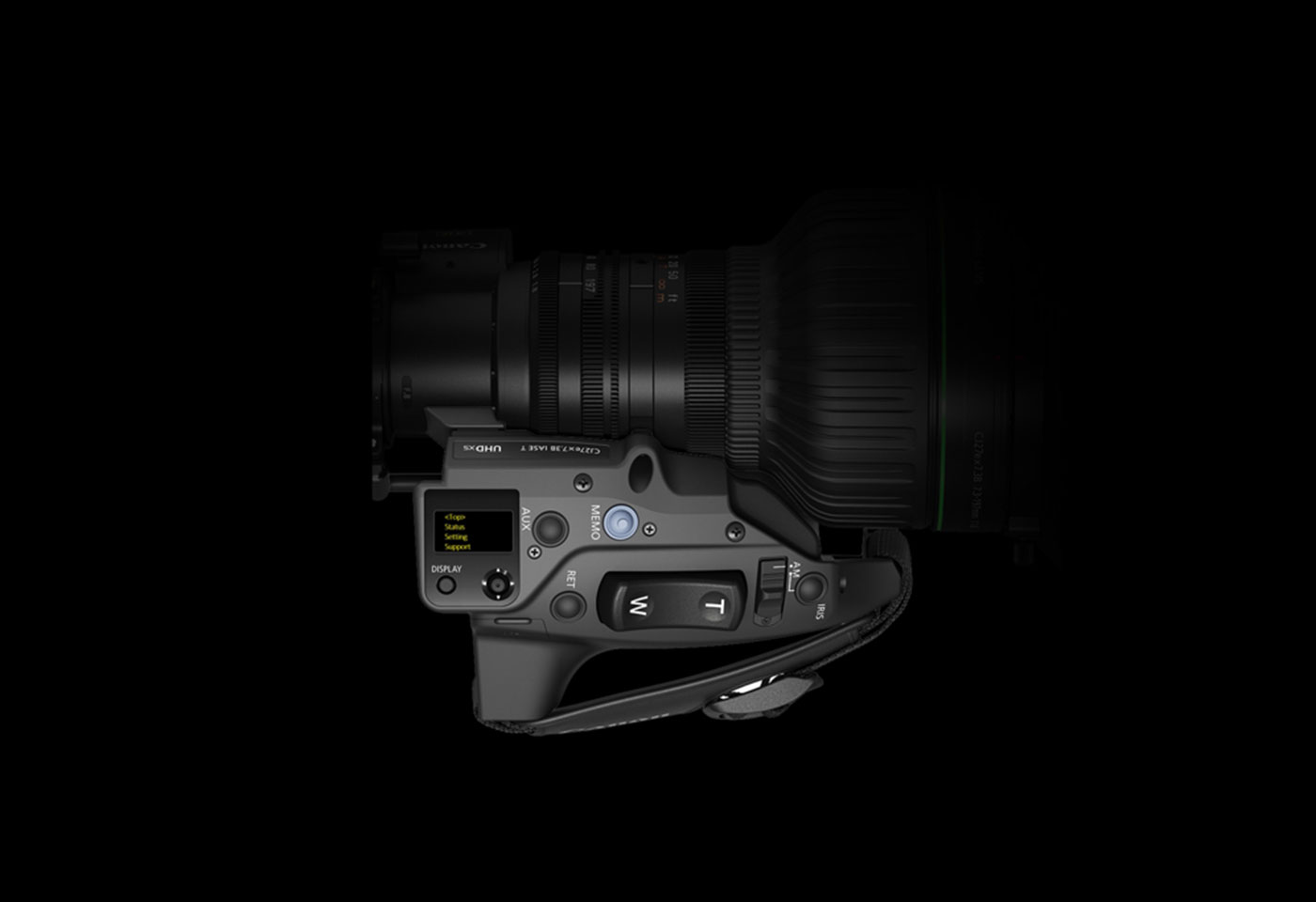

Advanced digital drive unit

An advanced digital drive unit deploying 16-bit encoders is fully compatible with the zoom, focus and iris controllers used with established broadcast 2/3-inch HDTV cameras. Three 20-pin connectors on the drive unit interface with these controllers (such as ZSC-300D and FPD-400D) while also providing a 16-bit interface to virtual systems.

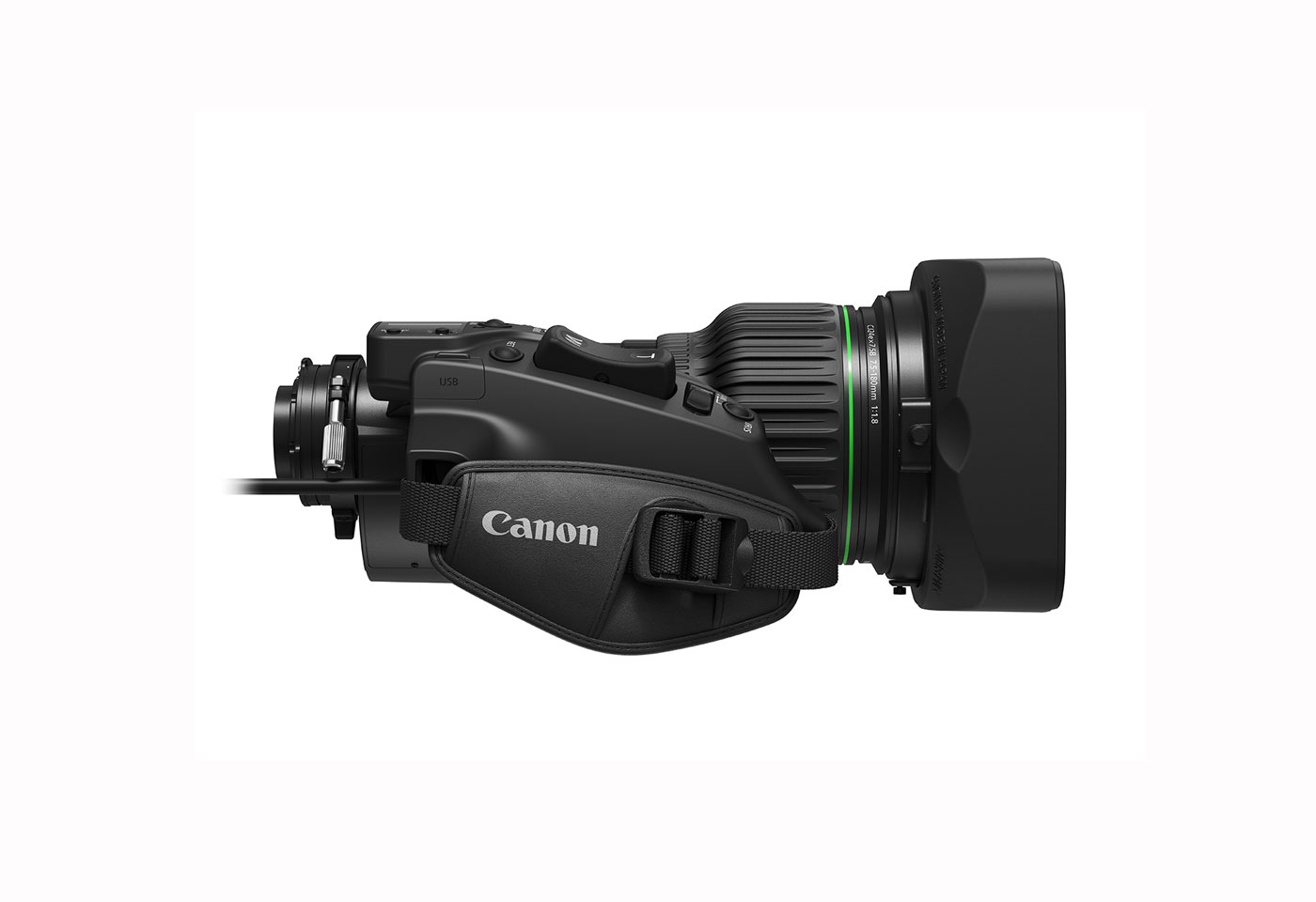

Compact and lightweight

The portable CJ24ex7.5B enables high mobility shooting, ideal for documentary and many other genres of television production.

Focal Length

7.5-180mm, 15-360mm

Maximum Aperture (f)

1:1.8 (7.5 -120mm) 1:2.7 (180mm), 1:3.6 (15 - 240mm) 1:5.4 (360mm)

Dimensions (mm – retracted)

163.6 x 109.1 x 221.4mm

Weight (g)

1.82kg

Extender

1.0x, 2.0x

Zoom Ratio

20x

Angular Field of View

65.2° x 39.6° (7.5mm) 3.1° x 1.7° (180mm), 35.5° x 20.4° (15mm) 1.5° x 0.9° (360mm)

M.O.D.

0.8m

Shooting Range at M.O.D.

96.0 x 54.0cm (7.5mm) 4.1 x 2.3cm (180mm), 48.0 x 27.0cm (15mm) 2.1x1.2cm (360mm)
