NEW

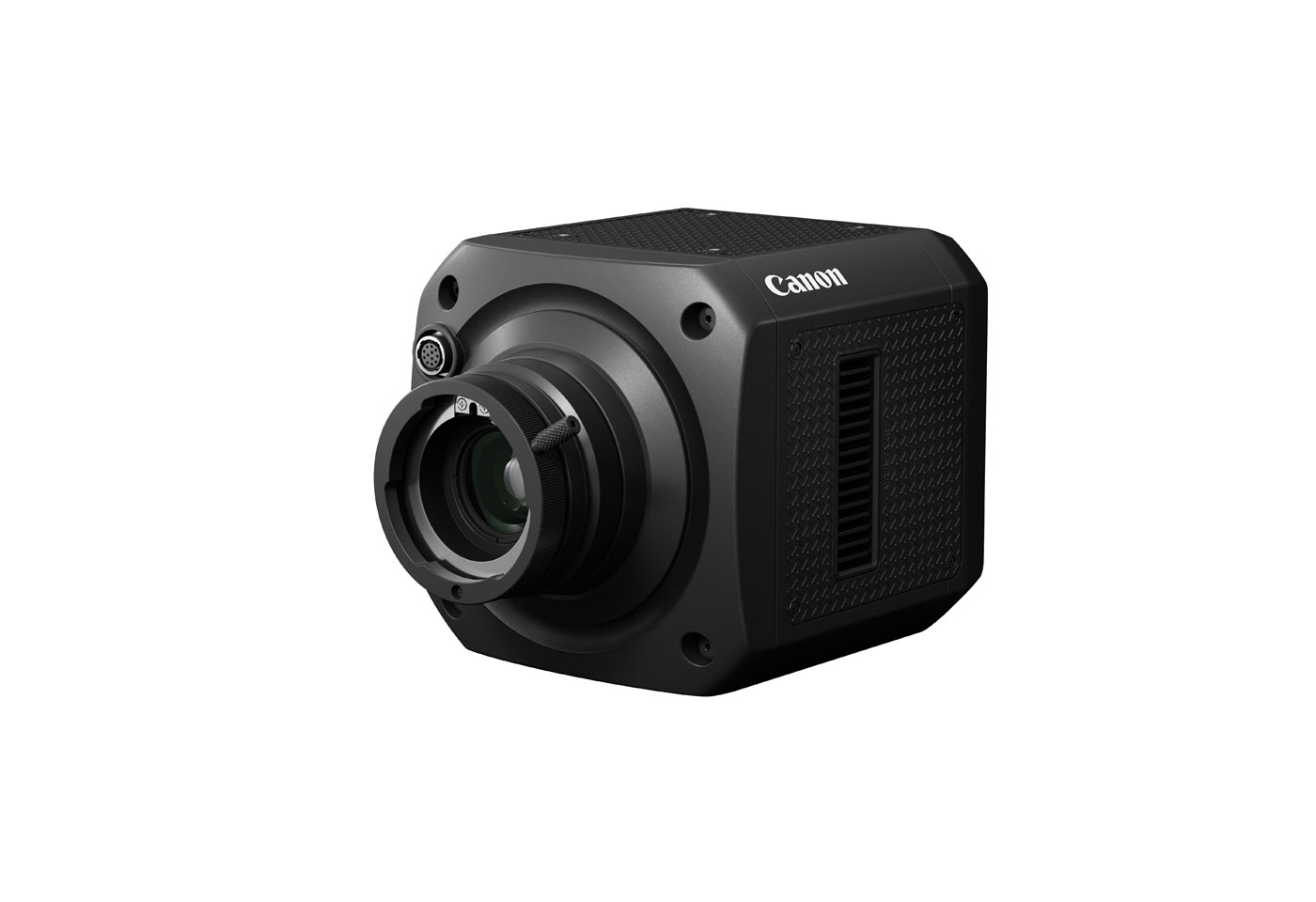

MS-510

Low light and long range surveillance camera
  • Advanced surveillance
  • Low light and long range capability
  • Second generation 1.0" SPAD sensor
alt-text
alt-text
alt-text
alt-text
alt-text
alt-text
Low light and long range surveillance camera
  • Advanced surveillance
  • Low light and long range capability
  • Second generation 1.0" SPAD sensor

Second-Generation SPAD Sensor

New SPAD sensor improves photon detection efficiency, delivering clearer, lower-noise images in extremely low light compared to MS-500 (minimum illumination approx. 0.00065 lux vs 0.001 lux).

Ultra-Low-Light Imaging

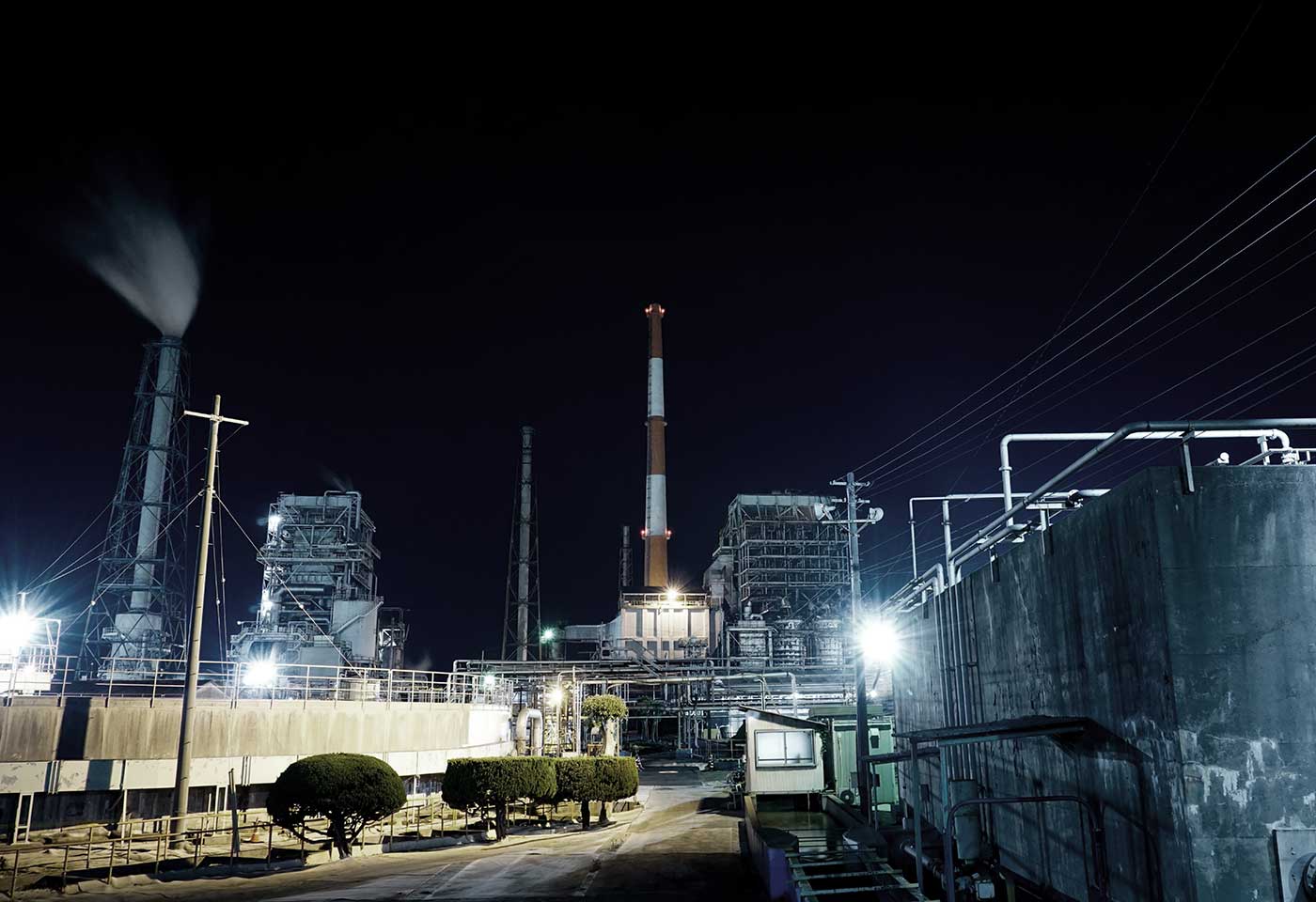

Image of a city at night

The camera leverages the unique characteristics of an ultra-high-sensitivity SPAD sensor to deliver exceptional low-light performance. Its approximately 3.2MP sensor captures clear colour video with minimal noise even in near-dark conditions.

  • Image of a boat in the ocean
    Long distance monitoring

    When paired with a high-magnification and bright telephoto lens, the MS-500 is able to capture entire surveillance areas, as well recognise subjects that are several kilometres away.

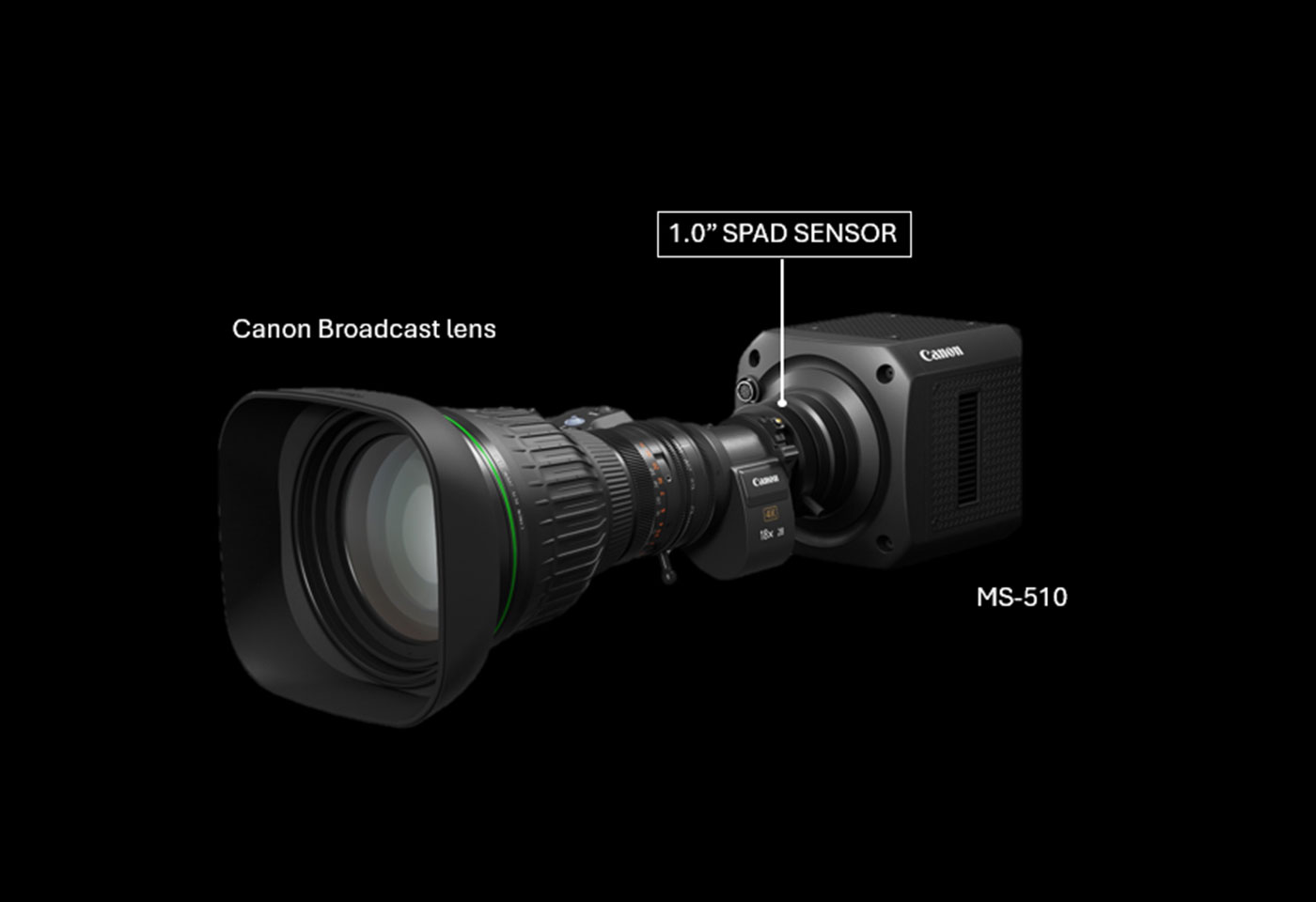

  • Take advantage of broadcast lenses

    As an interchangeble lens camera, the B4 mount enables compatibility with Canon broadcast lenses, including high-magnification telephoto zooms for long-range monitoring.

Specifications and brochure

Image Sensor
1.0" SPAD Sensor
Total Pixels
Approx. 3,200,000
Effective Pixels
Approx. 2,100,000

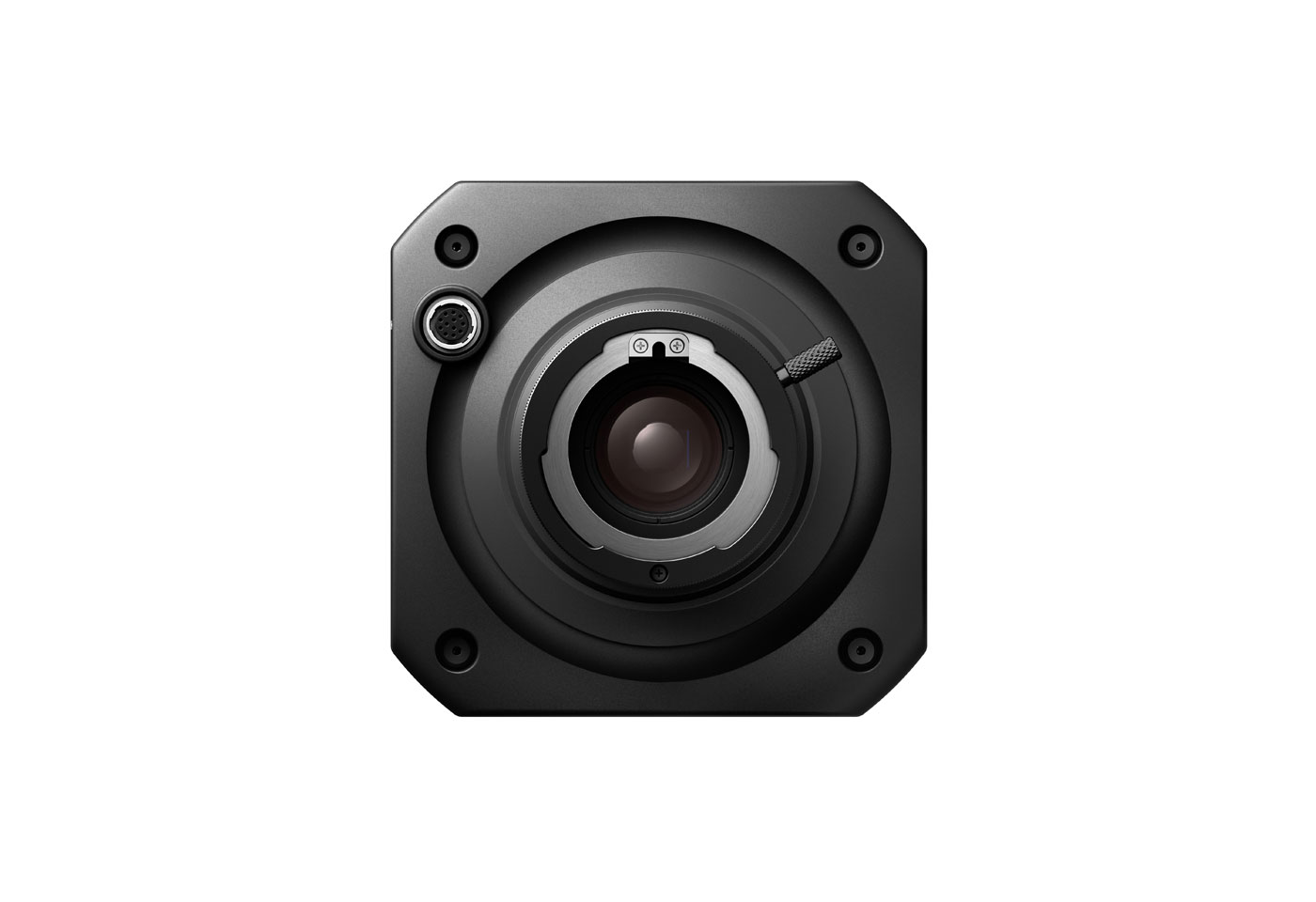

Lens Mount
B4 Mount
Minimum Subject Illumination
0.00065 lux
Infrared Shooting
Available
Dimensions
Approx. 128 x 128 x 184mm (excluding protrusions)
Dimensions
Approx. 2.3kg (camera body only)

Warning: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Video enhancement software

Improve video visibility through high-performance noise reduction, dark and bright area compensation and haze compensation.
